Leírás

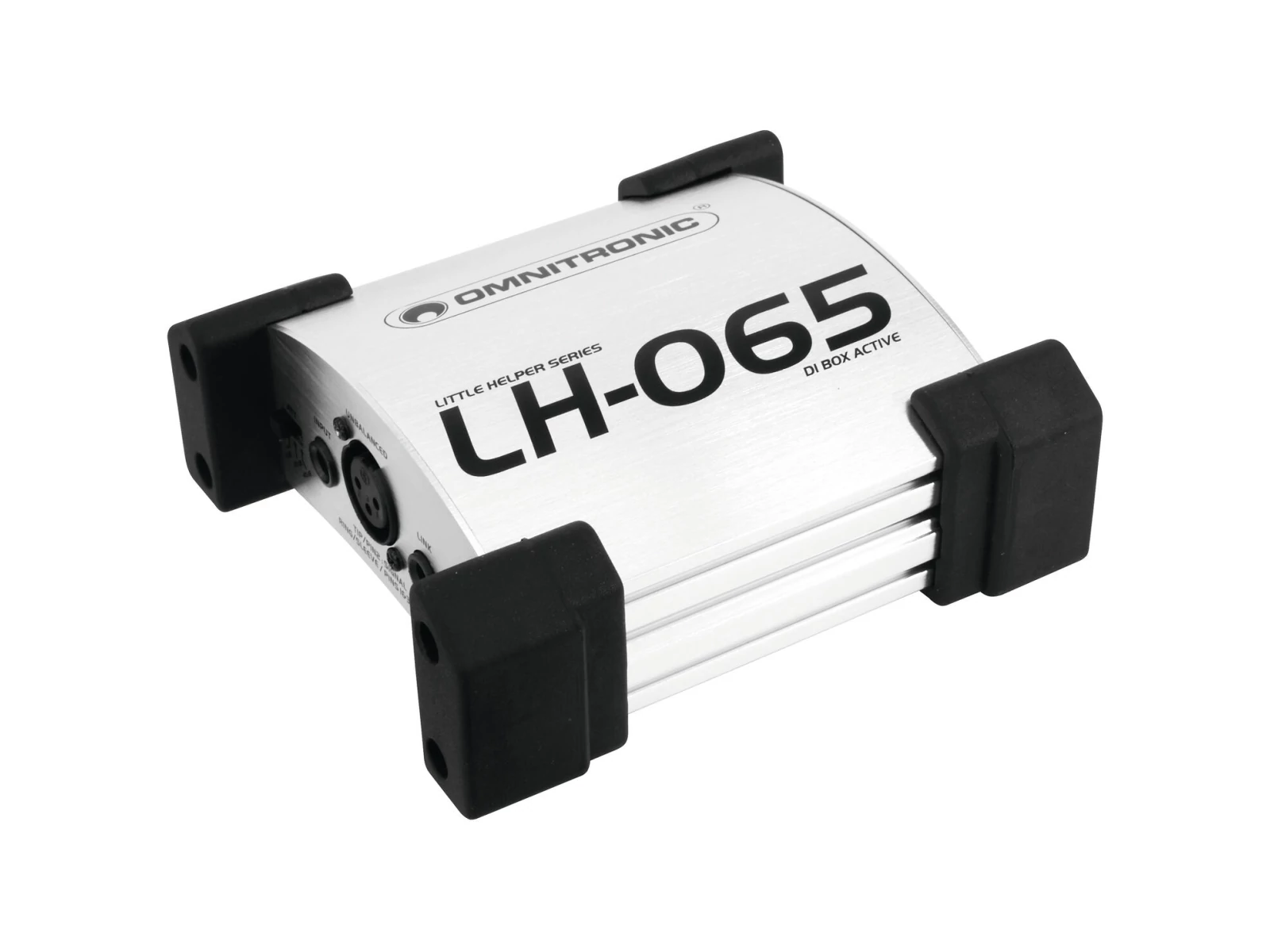

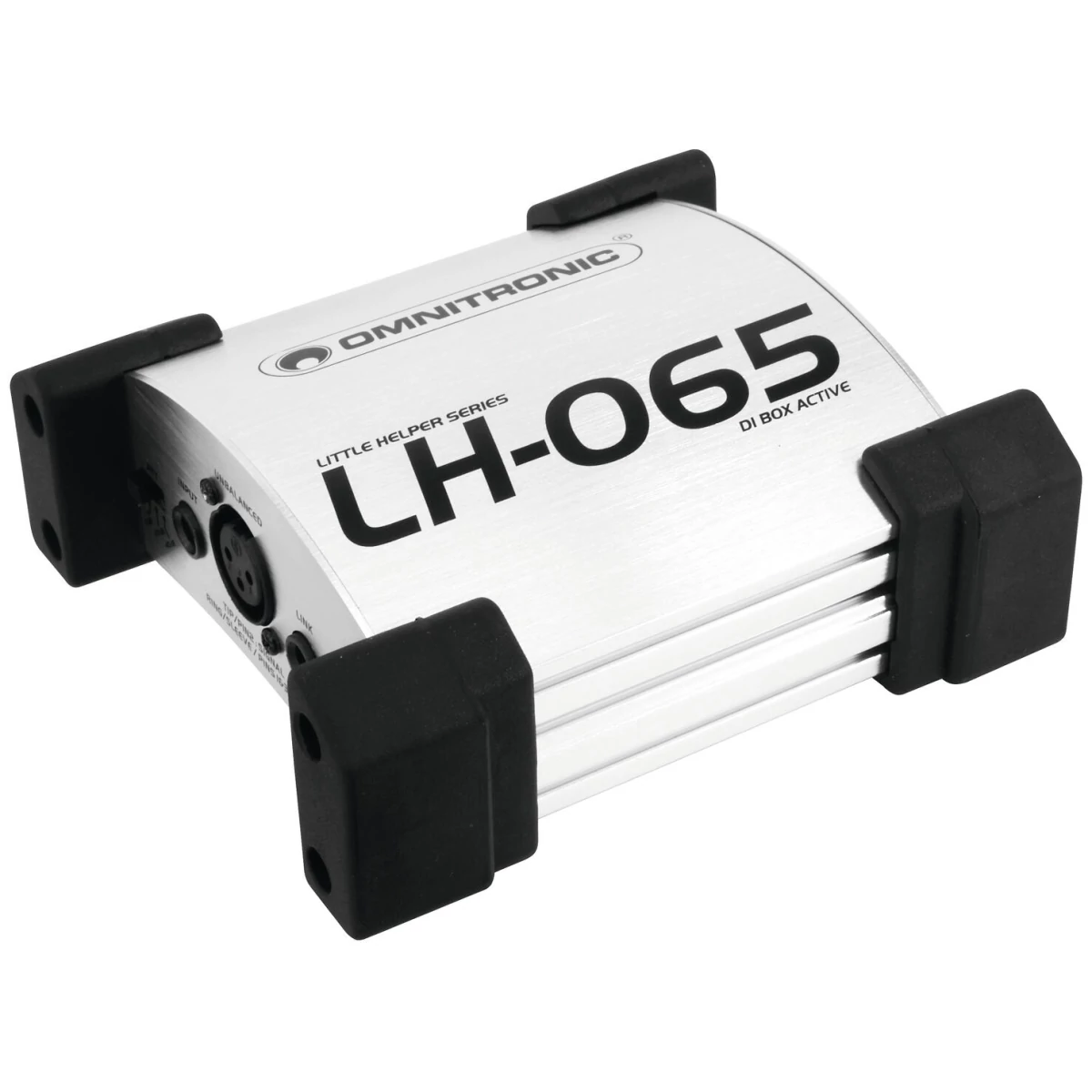

1-channel DI box, active
- 1 high-impedance signal input via XLR or 6.3 mm jack connectors
- 1 low-impedance XLR output
- 6.35 mm jack input, and output
- Converts an unbalanced line input (e.g. instruments) into a balanced XLR output for connecting a mixer
- Switchable input attenuation: 0 dB, -20 dB, -40 dB
- Cables can be routed under the housing
- For application areas such as: Installation; mobile use; mobile djs / entertainer
Package contents
- 1 x device, 1 x user manual, 1 x battery
Manuals
ManualsParaméterek
| Protection class | Protection class III |
| Power connection | Mains input via Coaxial power connector (M) mounting version power supply cord with AC adapter (provided) |
| Battery | 1 x 9.0 V E block 6F22 zinc carbon included |
| Frequency range | 10 - 30000 Hz |
| THD | <0,5 % at 1 kHz |
| Impedance | Input:470 kOhm |
| Output | 600 Ohm |
| Input attenuation | 0 dB, -20 dB, -40 dB; switchable |
| Housing color | Silver |
| Control elements | Power switch, groundlift selector, Input sensitivity switch |
| Connections | Input:1 x 3-pin XLR |
| Input | 1 x 6.3 mm plug (unbal.) |
| Link | 1 x 6.3 mm plug (unbal.) |
| Output | line via 1 x 3-pin XLR |
| Max. level | Output:+6 dBu |
| Dimensions | Width:15 cm |
| Depth | 13 cm |
| Height | 6 cm |
| Weight | 540 g |
