Leírás

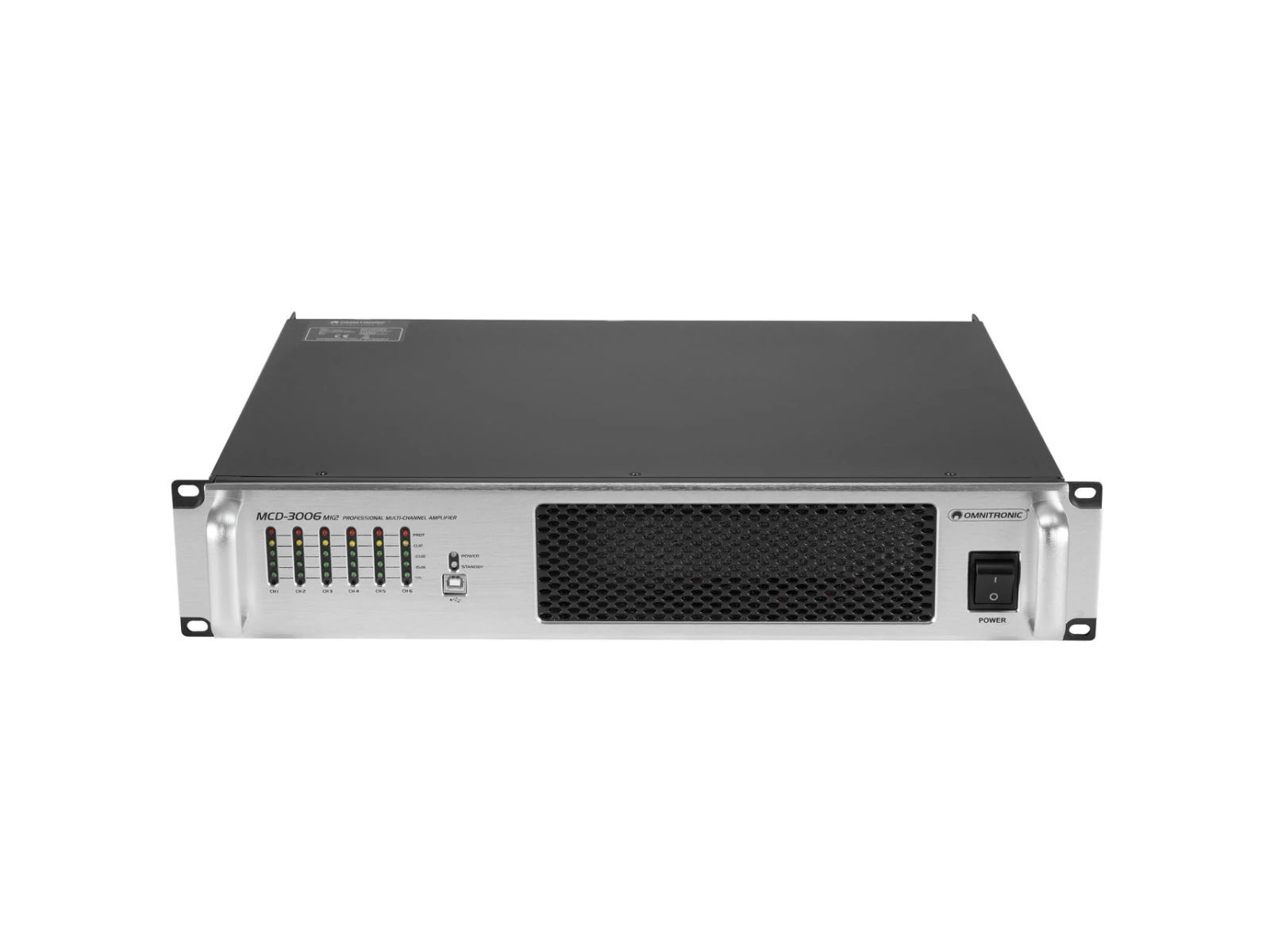

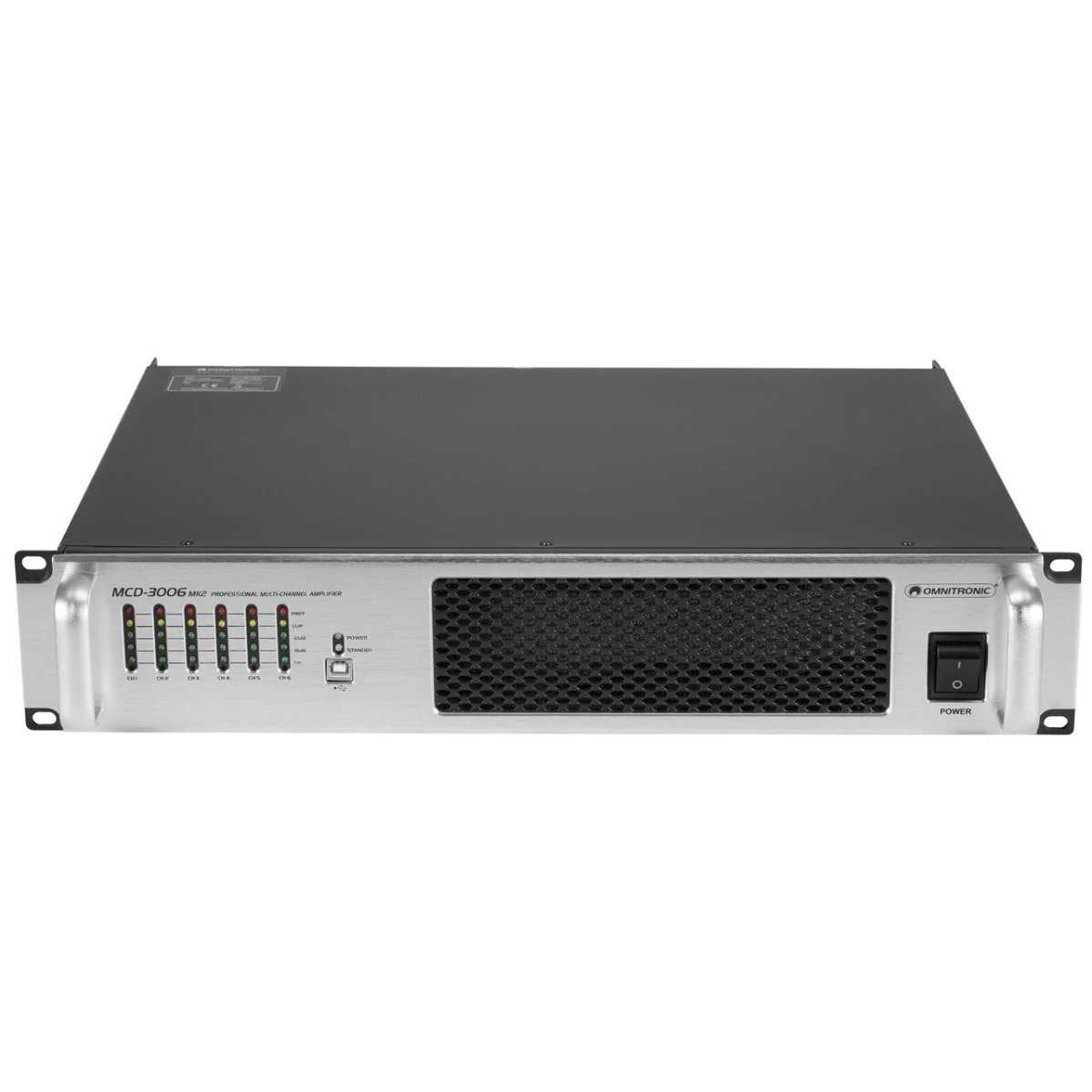

6-channel PA amplifier with SMPS, 4 ohms: 6 x 500 W, 8 ohms: 6 x 250 W
- PA amplifier with integrated limiter for multi-zone applications
- Signal inputs via balanced XLR mounting jacks and terminal blocks
- Tamper-proof level adjustment on the rear panel
- 3-fold output meter with clip LED per channel
- Speaker switch-on delay
- Rugged steel chassis with aluminum front panel
- Complete protection set
- Air flow from front to rear
- The device is cooled by cooling fan
- (19") 48.3 cm rack installation 2 U
Package contents
- 1 x amplifier, 1 x power cord, 6 x screw plug-in terminal, 4 x foot, 4 x screw, 1 x user manual
Manuals
ManualsParaméterek
| Power supply | 230 V AC, 50 Hz |
| Power consumption | 525 W 1/8 power |
| Output power | 6 x 250 W RMS (8 ohms) |
| 6 x 500 W RMS (4 ohms) | |
| Power connection | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Frequency range | 22 - 25000 Hz |
| S/N ratio | >120 dB |
| THD | <0,003 % at 1 kHz |
| Cooling | 2 x cooling fan , Air flow from front to rear |
| Impedance | Input:22 kOhm , bal. |
| Input | 12 kOhm , unbal. |
| Gain | 26 dB |
| Circuitry | Class D |
| Slew rate | >10 V/µs |
| Damping factor | >500 |
| Control elements | Power switch, level control per channel |
| Controls | Softstart; short-circuit; overheat; overload; DC voltage; power on/off transient |
| Status LED | Power, level meter, clip, protect |
| Connections | Input:line via 6 x 3-pin XLR |
| Input | line via 6 x screw plug-in terminal |
| Link | speaker via 6 x screw plug-in terminal |
| Max. level | Input:+2 V |
| Housing design | (19") 48.3 cm rack installation 2 U |
| Dimensions | Width:48,3 cm |
| Depth | 38,8 cm |
| Height | 8,9 cm |
| Weight | 9,05 kg |
