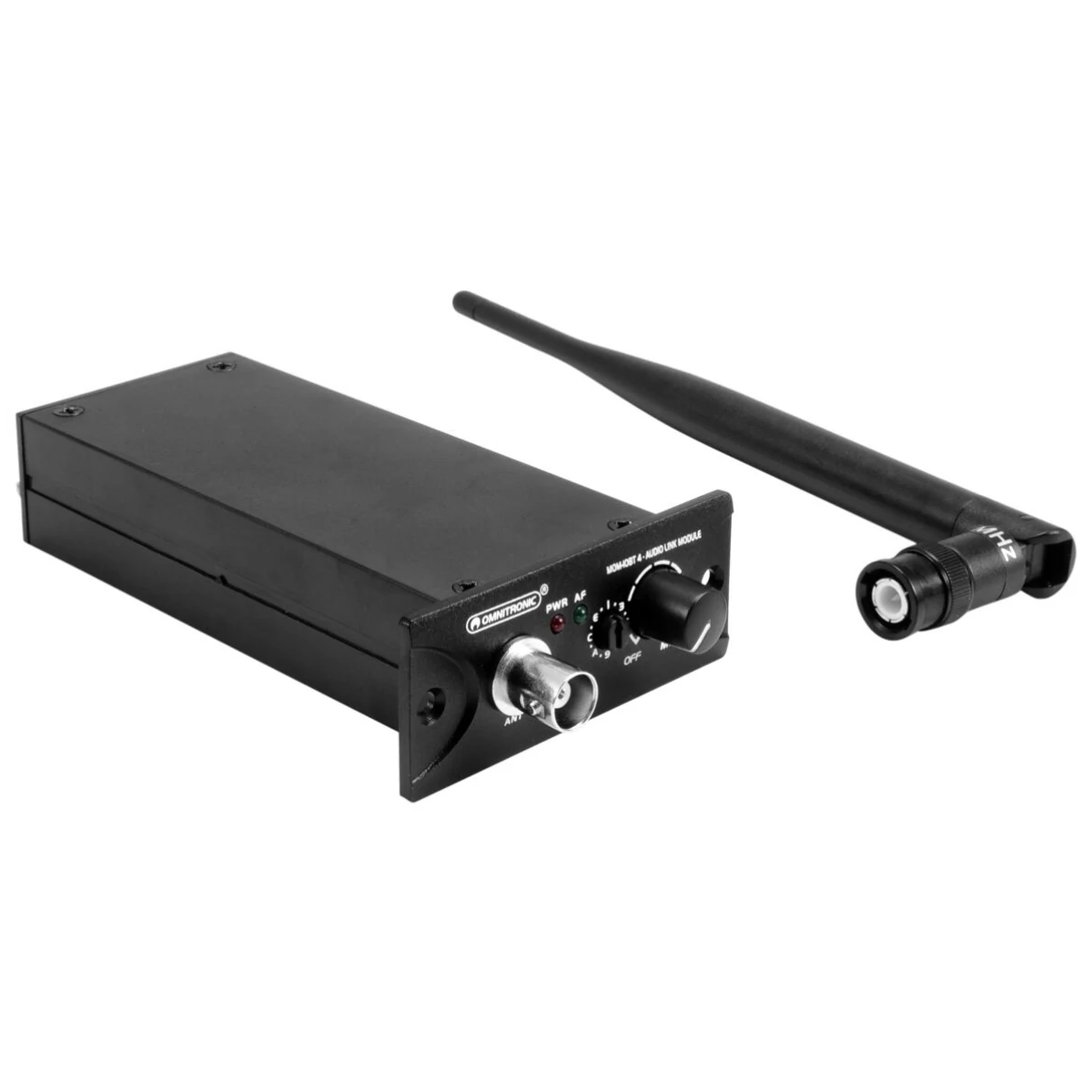

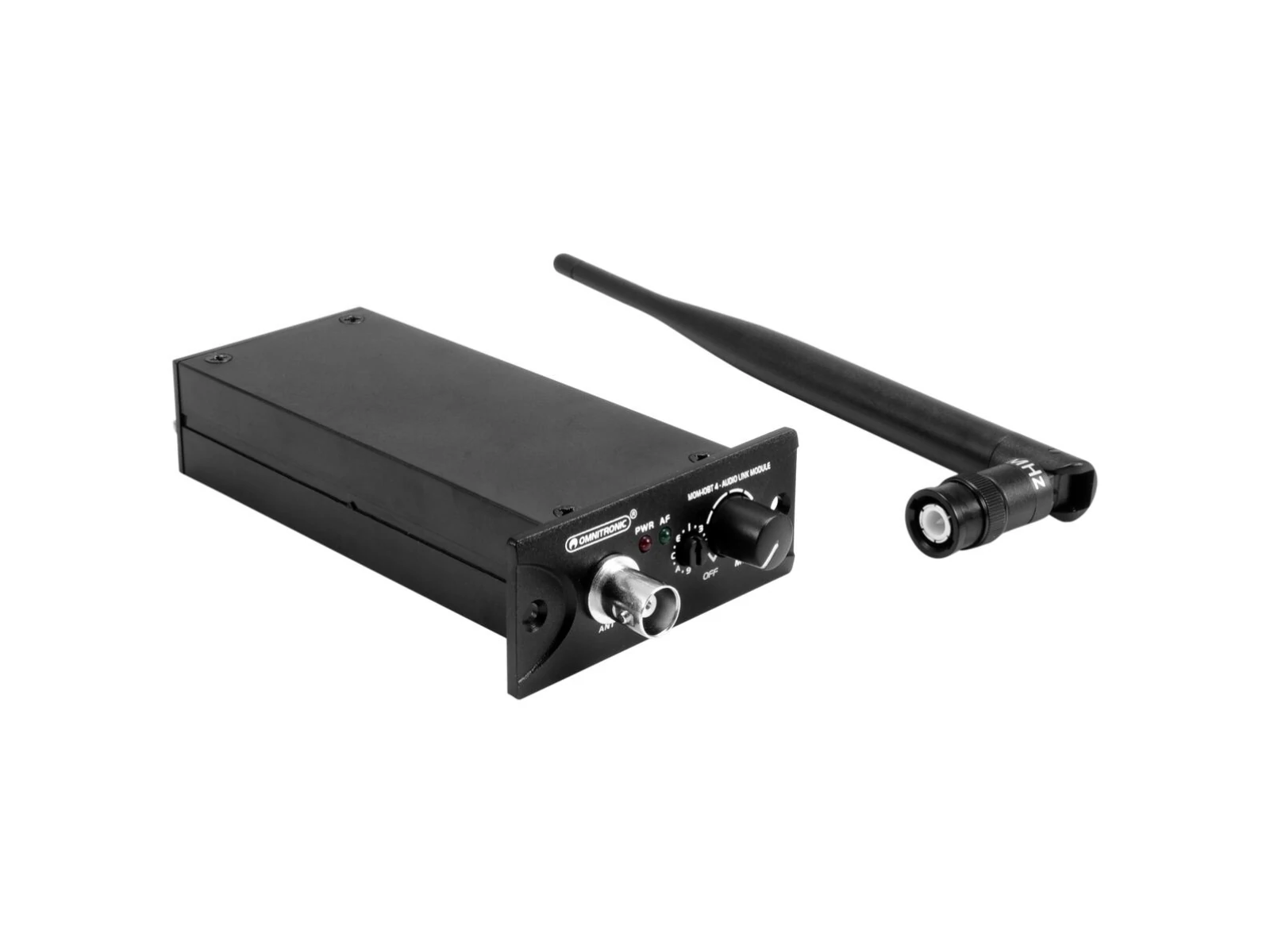

Transmitter module for audio transmission to MOM-10BT4 PA systems
- For retrofitting the MOM-10BT4 modular PA system
- For wireless audio transmission to receiving units of MOM-10BT4 PA systems (audio link mode)
- 1 audio link module can be retrofitted
- Transmission of the master in mono or stereo R
- 16 selectable UHF frequencies (823-832 and 863-865 MHz)
- Detachable BNC antenna
- UHF 823 - 832 MHz License-free and approved in large parts of Europe
- UHF 863 - 865 MHz License-free and approved in Europe
- Operating range up to 30m with line-of-sight
Package contents
- 1 x transmitter, 1 x antenna, 1 x user manual, 1 x declaration of conformity
Manuals
ManualsParaméterek
| Type | Transmitter |
| Power supply | 12 V DC 150 mA |
| Range | Range up to 30m with line-of-sight |
| Frequency band | UHF 823 - 832 MHz; UHF 863 - 865 MHz |
| Frequency stability | ± 0,01 % |
| RF power output | 10 mW |
| Frequency selection | 16 Switchable frequencies |
| Control elements | Frequency selector switch, level control |
| Status LED | Power, signal |
| Connections | Output:antenna via 1 x BNC (F) |
| Dimensions | Width:7,1 cm |
| Depth | 13,9 cm |
| Height | 3 cm |
| Weight | 120 g |
Transmitter module for wireless audio transmission to DAD receiving units
