Leírás

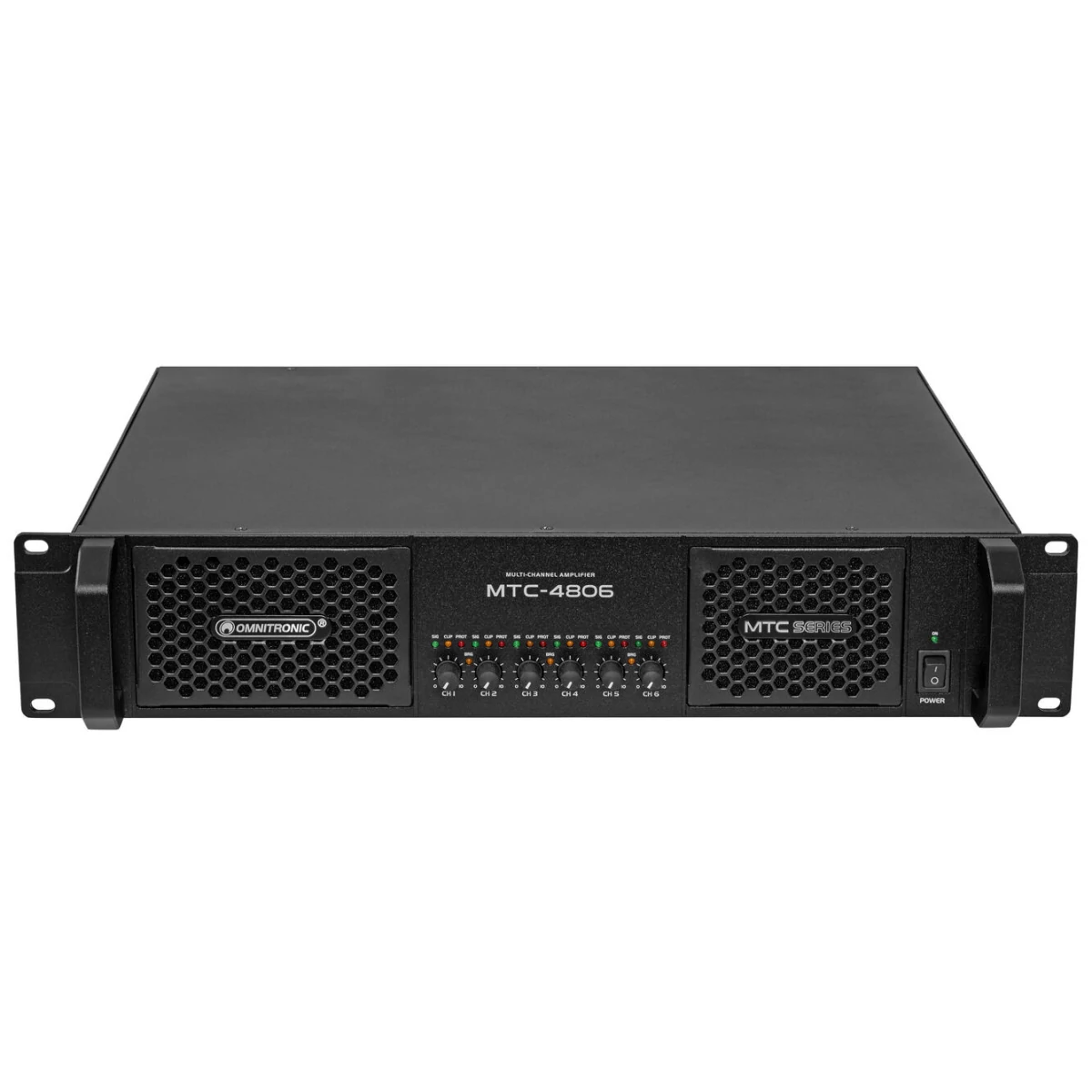

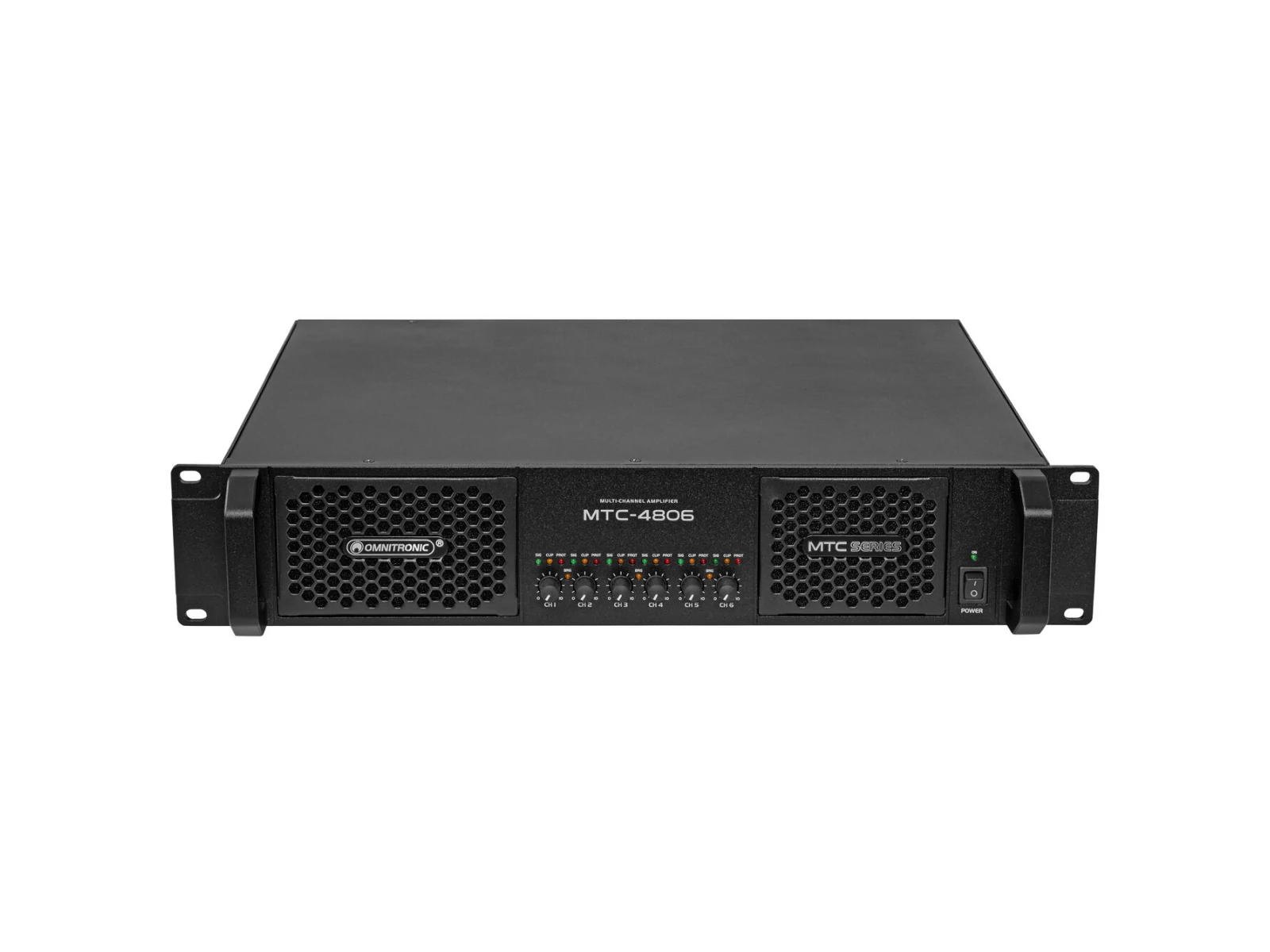

Class D multi-channel PA amplifier with SMPS, 6 x 800 W RMS (4 ohms), 6 x 400 W RMS (8 ohms)
- Extremely low weight and height due to integrated switch mode power supply
- 2 operating modes can be selected (stereo or bridge/100V)
- Level control per channel
- (19") 48.3 cm rack installation 2 U
- Highly efficient Air flow from front to rear
- The device is cooled by temperature-controlled fan
- For application areas such as: Clubs/dancing school; Installation; mobile use; mobile djs / entertainer; restaurants, bars and hotels; Rental; sports centres/gyms
Package contents
- 1 x amplifier, 1 x power cord, 1 x user manual
Manuals
ManualsParaméterek
Power supply | 100-240 V AC, 50/60 Hz |
Power consumption | 900 W 1/8 power |
Protection class | Protection class I |
Output power | 6 x 800 W RMS (4 ohms); 6 x 400 W RMS (8 ohms); 3 x 1500 W RMS bridged (8 ohms); 6 x 200 W RMS (100 V); 3 x 1500 W RMS bridged (100 V) |
Power connection | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
Cable length | 1 m detachable |
Device fuse | 5 x 20 mm, T 10 A Fuse fix on board |
Frequency range | 20 - 20000 Hz |
S/N ratio | >119 dB |
THD | <0,05 % at 1 kHz |
Cooling | 2 x temperature-controlled fan , Air flow from front to rear |
Impedance | Input:20 kOhm , bal. |
Input | 10 kOhm , unbal. |
Gain | 28,2 dB |
Bridged 34,2 dB | |
Housing color | Black |
Circuitry | Class D |
Damping factor | 350 |
Control elements | Power switch, level control per channel, mode switch (stereo/bridged) |
Controls | Softstart; overheat; overload; short-circuit; DC voltage |
Status LED | Power, signal, clip, bridged, protect |
Connections | Input:line via 6 x 3-pin XLR |
Link | line via 6 x 3-pin XLR |
Output | speaker via screw plug-in terminal |
Output | 6 x speaker built-in socket (F) |
Output | Speaker (bridge) via 3 x speaker built-in socket (F) |
Housing design | (19") 48.3 cm rack installation 2 U |
Dimensions | Width:48,3 cm |
Depth | 40,8 cm |
Height | 8,8 cm |
Weight | 8,72 kg |
