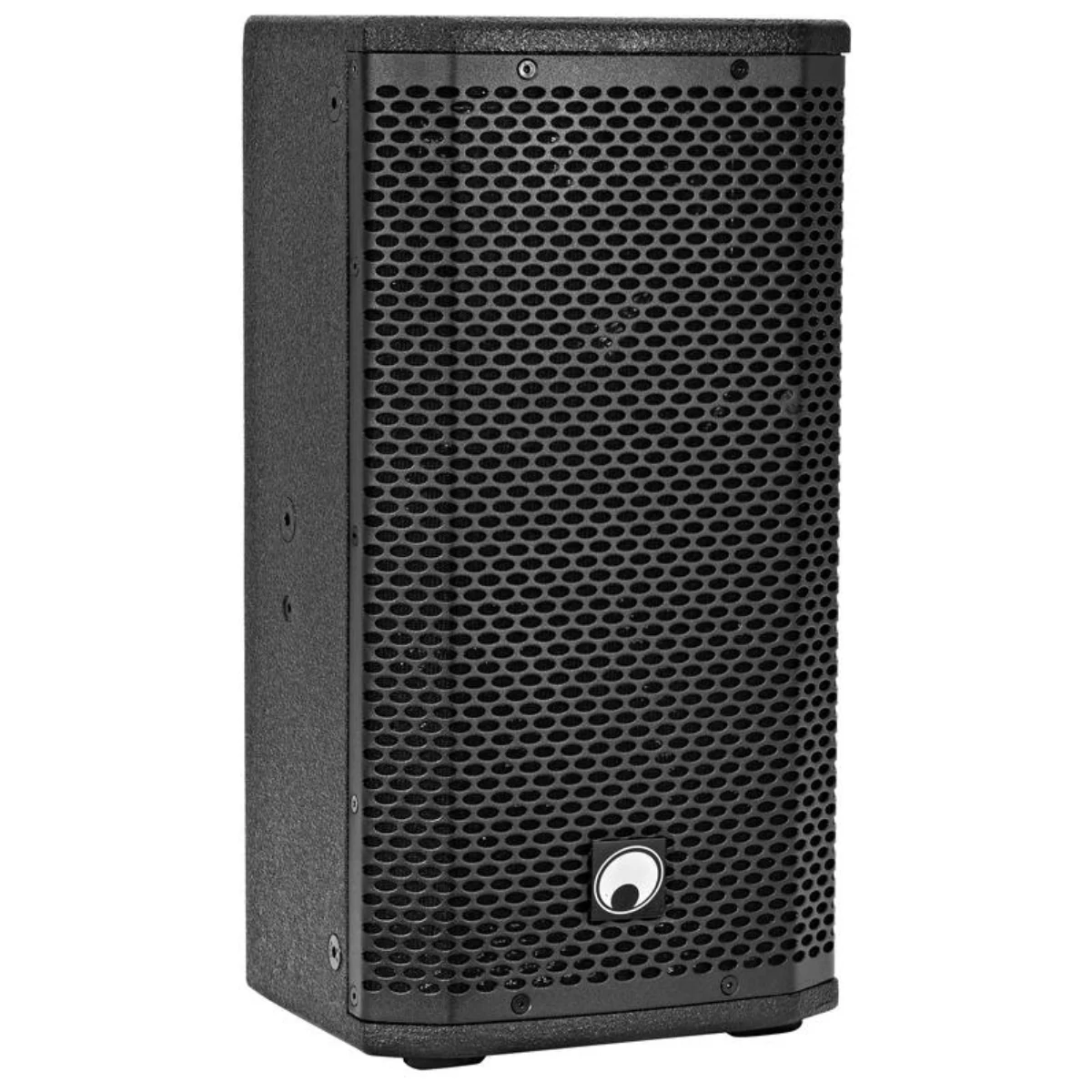

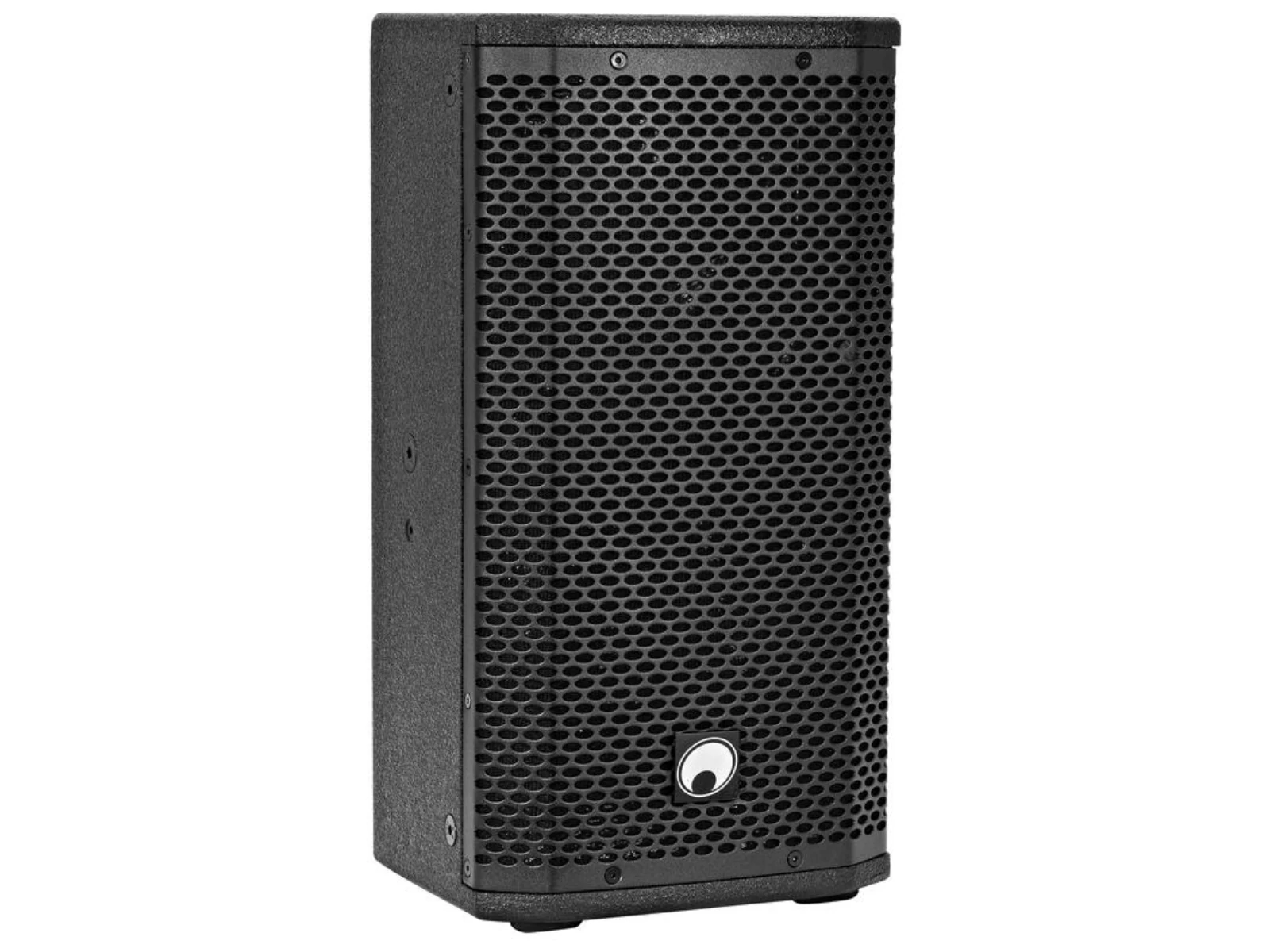

OMNITRONIC PAS-208A MK4 2-way Top, active, DSP, BT

152.900 Ft 127.900 Ft (100.709 Ft + ÁFA)
Menny.:db
Szállítási díj: Ingyenes
Garancia: 2 év garancia
Raktárkészlet: Raktáron
Cikkszám: 11039551
Ha részletfizetéssel vásárolná meg a terméket, helyezze a kosárba, majd a fizetési módnál jelölje be a Cofidis expressz online áruhitelt.

Leírás

Active speaker with 8" woofer, 1" driver, 200 W RMS LF, 40 W RMS HF

  • Active PA speaker system for touring applications and permanent installations
  • Optimized for combination with PAS subwoofers
  • DSP-controlled biamp amplifier (class D)
  • Trapezoidal, multi-functional multiplex cabinet with monitor shape
  • Stereo Bluetooth link for wireless stereo operation with 2 systems linked together
  • Digital signal processor
  • DSP presets: MUSIC; LIVE; CLUB; VOICE
  • Black metal grille with acoustic foam
  • With rigging points
  • Dual flange
  • Rugged carrying handle
  • Control via Bluetooth
  • Bluetooth: operating range up to 10m in buildings
  • The device is cooled by passive convection cooling

Package contents

  • 1 x compact cabinet speaker, 1 x user manual, 1 x declaration of conformity

Manuals

Manuals

Paraméterek

Power supply 230 V AC, 50 Hz
Power consumption 300 W
Protection class Protection class I
Power connection Mains input via IEC (M) power supply cord with safety plug included
Device fuse 5 x 20 mm, T 2 A fuse replaceable
Power Program:400W LF
Rated 200W RMS LF
Program 80W HF
Rated 40W RMS HF
Frequency range 75 - 20000 Hz
Max. SPL 118 dB
DSP Digital signal processor
DSP presets MUSIC; LIVE; CLUB; VOICE
Dispersion angle 90° x 60°
Cooling Passive convection cooling
Low cut 100Hz, switchable
Control Bluetooth
Bluetooth With stereo link (TWS)
Bluetooth device name OMNITRONIC PAS-208A MK4
Range Bluetooth:range up to 10m in buildings
Attachment system Dual flange:
Flying points 12 x M8 thread; 4 x M10 thread
Circuitry Class D Biamp
Control elements Power switch, Master control, level control per channel, Input sensitivity switch, source selector; connect, low cut switch
Controls Limiter; power on/off transients
Status LED Power, signal, peak, low cut, pairing; stereo, DSP presets
Connections Input:Mic-Line-Hi.Z via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Output line via 1 x 3-pin XLR (M) mounting version
Speaker 1 x woofer 8" with ferrit magnet
Basket material steel
Conematerial cardboard/paper
Voice coil lows 2"
1 x compression tweeter highs 1" with ferrit magnet
Voice coil compression tweeter highs 1,35"
Type of speaker Compact cabinet speaker
Type of construction Vented
Carrying handle 1 pc/pcs
Material Plywood multi-layer glued, 12 mm
Color Black
Dimensions Width:26 cm
Depth 45 cm
Height 23 cm
Weight 10,65 kg
