Leírás

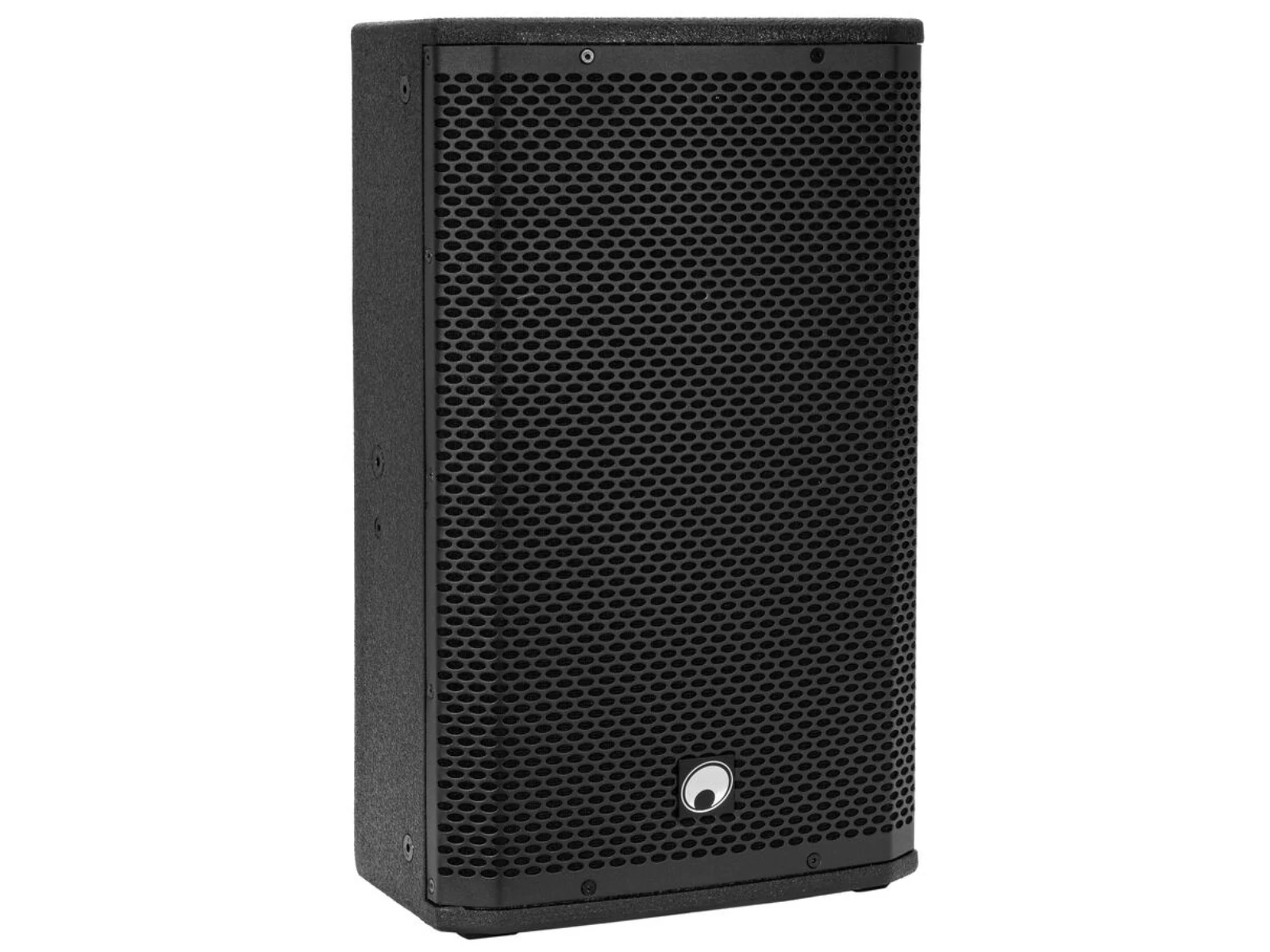

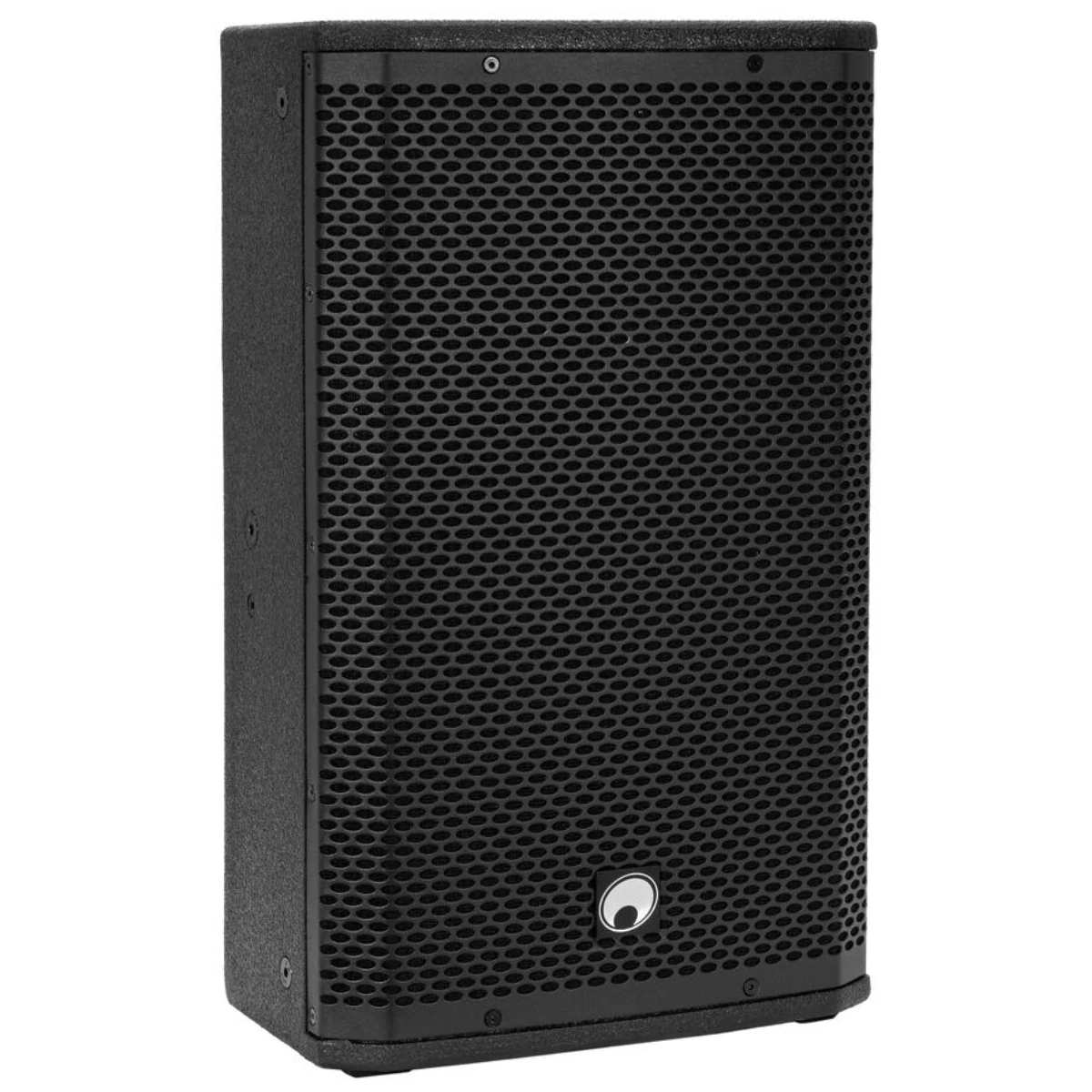

Active speaker with 10" woofer, 1" driver, 80 W HF, 40 W RMS HF
- Active PA speaker system for touring applications and permanent installations
- Optimized for combination with PAS subwoofers
- DSP-controlled biamp amplifier (class D)
- Trapezoidal, multi-functional multiplex cabinet with monitor shape
- Stereo Bluetooth link for wireless stereo operation with 2 systems linked together
- Digital signal processor
- DSP presets: MUSIC; LIVE; CLUB; VOICE
- Black metal grille with acoustic foam
- With rigging points
- Dual flange
- Rugged carrying handle
- Control via Bluetooth
- Bluetooth: operating range up to 10m in buildings
- The device is cooled by passive convection cooling
Package contents
- 1 x compact cabinet speaker, 1 x user manual, 1 x declaration of conformity
Manuals
ManualsParaméterek
| Power supply | 230 V AC, 50 Hz |
| Power consumption | 350 W |
| Power connection | Mains input via IEC (M) power supply cord with safety plug included |
| Device fuse | 5 x 20 mm, T 2 A fuse replaceable |
| Power | Program:400W LF |
| Program | 80W HF |
| Rated | 200W RMS LF |
| Rated | 40W RMS HF |
| Frequency range | 70 - 20000 Hz |
| Max. SPL | 119 dB |
| DSP | Digital signal processor |
| DSP presets | MUSIC; LIVE; CLUB; VOICE |
| Dispersion angle | 90° x 60° |
| Cooling | Passive convection cooling |
| Low cut | 100Hz, switchable |
| Control | Bluetooth |
| Bluetooth | With stereo link (TWS) |
| Bluetooth device name | OMNITRONIC PAS-210A MK4 |
| Range | Bluetooth:range up to 10m in buildings |
| Attachment system | Dual flange: |
| Flying points | 12 x M8 thread; 4 x M10 thread |
| Circuitry | Class D Biamp |
| Control elements | Power switch, Master control, level control per channel, Input sensitivity switch, source selector; connect, low cut switch |
| Controls | Limiter; power on/off transients |
| Status LED | Power, signal, peak, low cut, pairing; stereo, DSP presets |
| Connections | Input:Mic-Line-Hi.Z via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) |
| Output | line via 1 x 3-pin XLR (M) mounting version |
| Speaker | 1 x woofer 10" with ferrit magnet |
| Basket material | steel |
| Conematerial | cardboard/paper |
| Voice coil lows 2" | |
| 1 x tweeter 1" with ferrit magnet | |
| Voice coil compression tweeter highs 1,35" | |
| Type of speaker | Compact cabinet speaker |
| Type of construction | Vented |
| Carrying handle | 1 pc/pcs |
| Material | Plywood multi-layer glued, 12 mm |
| Color | Black |
| Dimensions | Width:31 cm |
| Depth | 52 cm |
| Height | 28 cm |
| Weight | 13,15 kg |
