Leírás

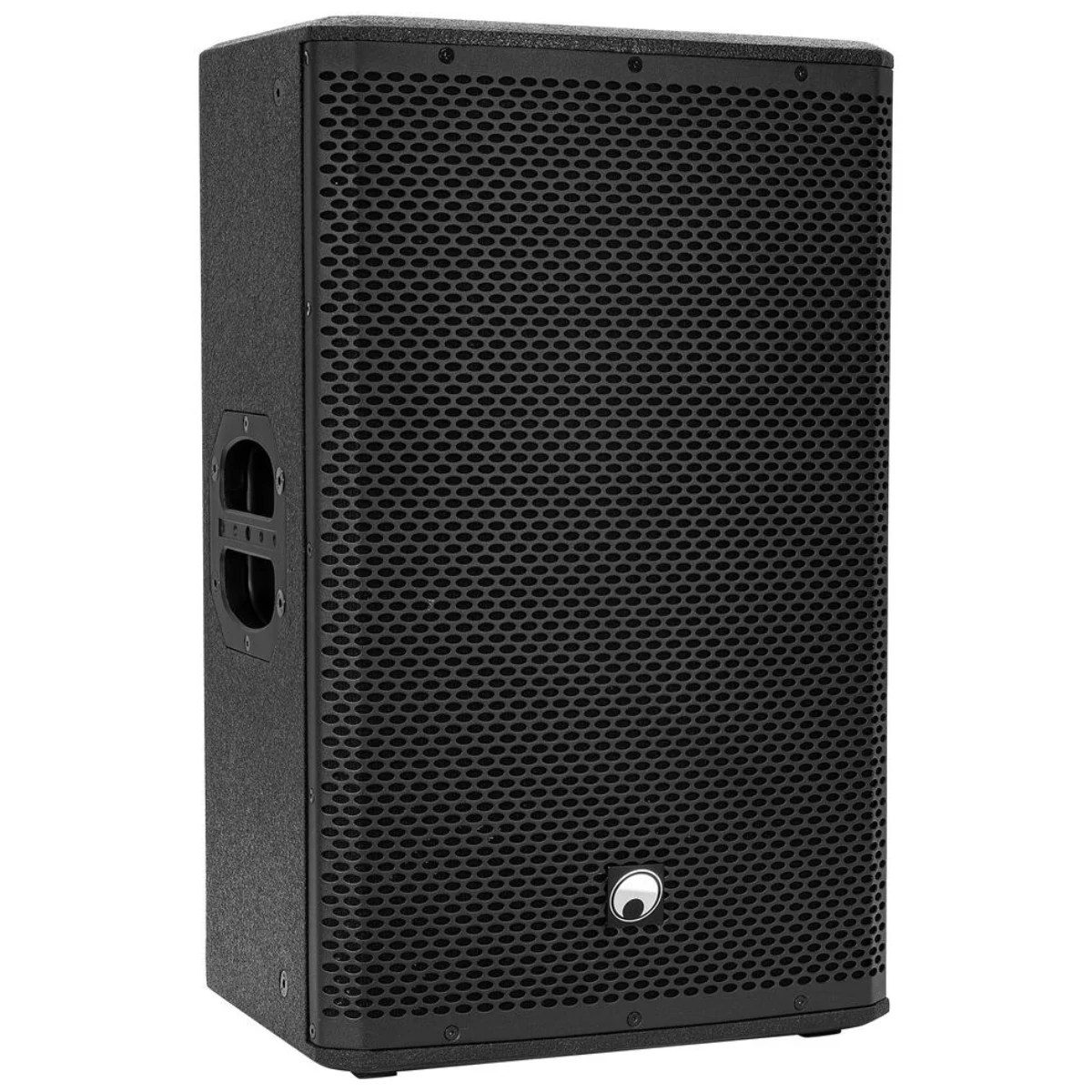

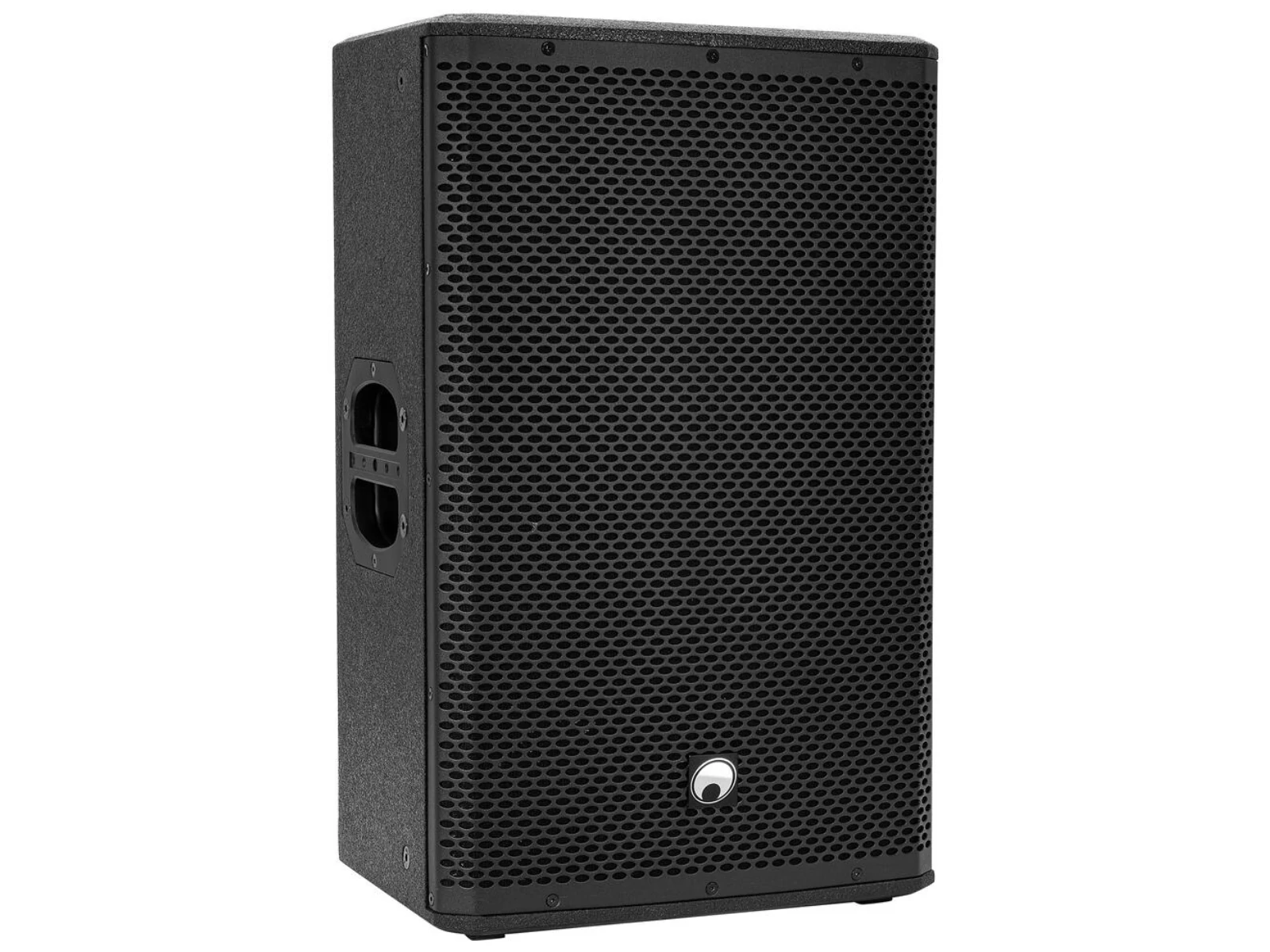

Active speaker with 12" woofer, 1" driver, 100 W HF, 50 W RMS HF
- Active PA speaker system for touring applications and permanent installations
- Optimized for combination with PAS subwoofers
- DSP-controlled biamp amplifier (class D)
- Trapezoidal, multi-functional multiplex cabinet with monitor shape
- Stereo Bluetooth link for wireless stereo operation with 2 systems linked together
- Digital signal processor
- DSP presets: MUSIC; LIVE; CLUB; VOICE
- Black metal grille with acoustic foam
- With rigging points
- Dual flange
- 2 Rugged carrying handles
- Control via Bluetooth
- Bluetooth: operating range up to 10m
- The device is cooled by cooling fan
Package contents
- 1 x compact cabinet speaker, 1 x user manual, 1 x declaration of conformity
Manuals
ManualsParaméterek
Power supply | 230 V AC, 50 Hz |
Power consumption | 650 W |
Protection class | Protection class I |
Power connection | Mains input via IEC connector (M) mounting version power supply cord with safety plug included |
Device fuse | 5 x 20 mm, T 4 A fuse replaceable |
Power | Program:500W LF |
Program | 100W HF |
Rated | 250W RMS LF |
Rated | 50W RMS HF |
Frequency range | 60 - 20000 Hz |
Max. SPL | 123 dB |
DSP | Digital signal processor |
DSP presets | MUSIC; LIVE; CLUB; VOICE |
Dispersion angle | 90° x 60° |
Cooling | 1 x cooling fan |
Low cut | 100Hz, switchable |
Control | Bluetooth |
Bluetooth | With stereo link (TWS) |
Bluetooth device name | OMNITRONIC PAS-212A MK4 |
Range | Bluetooth:range up to 10m |
Attachment system | Dual flange: |
Flying points | 12 x M8 thread; 4 x M10 thread |
Circuitry | Class D Biamp |
Control elements | Power switch, Master control, level control per channel, Input sensitivity switch, source selector; connect, low cut switch |
Controls | Limiter; power on/off transients |
Status LED | Power, signal, peak, low cut, pairing; stereo, DSP presets |
Connections | Input:Mic-Line-Hi.Z via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) |
Output | line via 1 x 3-pin XLR (M) mounting version |
Speaker | 1 x woofer 12" with ferrit magnet |
Basket material | steel |
Conematerial | cardboard/paper |
Voice coil lows 3" | |
1 x tweeter 1" with ferrit magnet | |
Voice coil compression tweeter highs 1,75" | |
Type of speaker | Compact cabinet speaker |
Type of construction | Vented |
Carrying handle | 2 pc/pcs |
Material | Plywood multi-layer glued, 15 mm, painted |
Color | Black |
Dimensions | Width:36,5 cm |
Depth | 59 cm |
Height | 38 cm |
Weight | 20,55 kg |
