Leírás

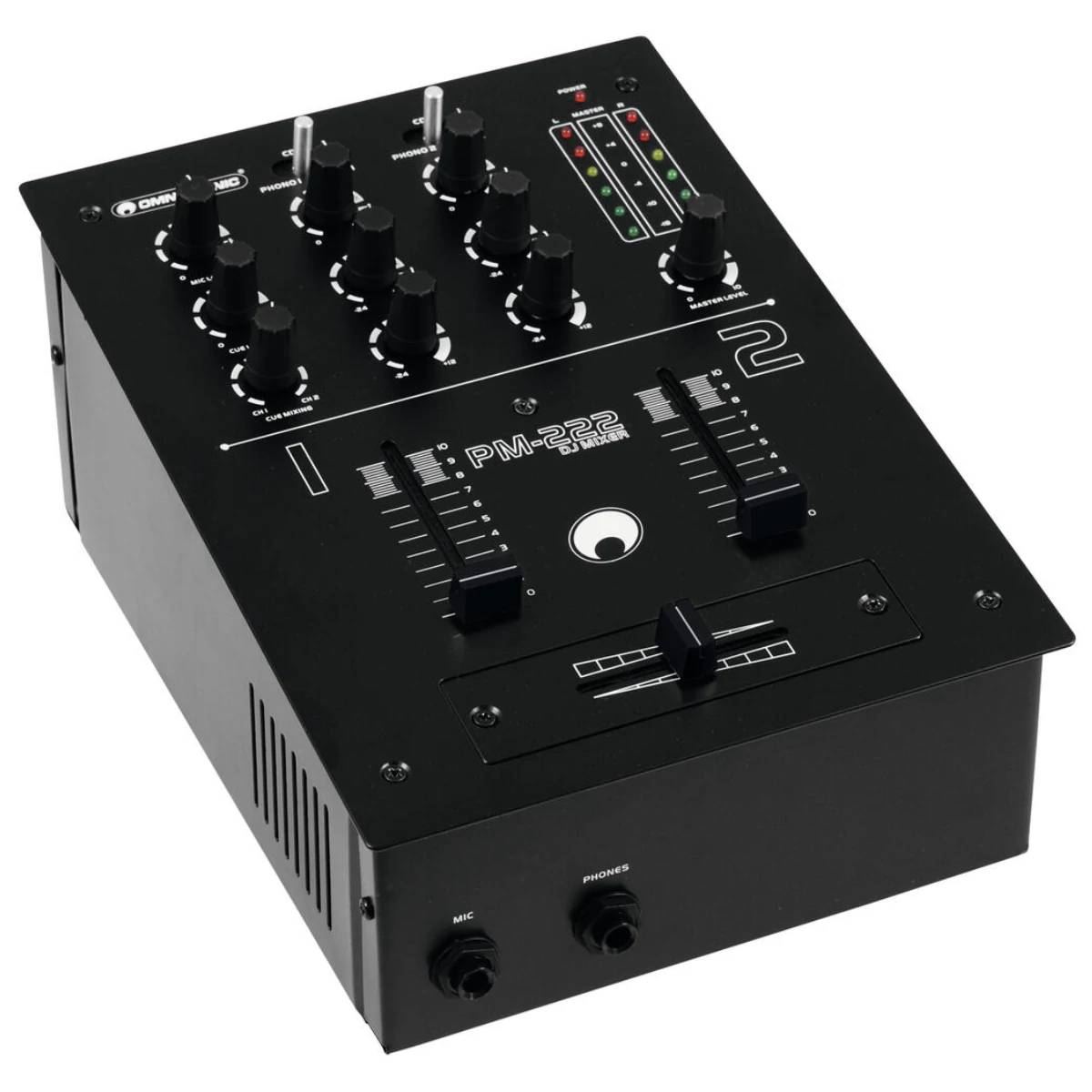

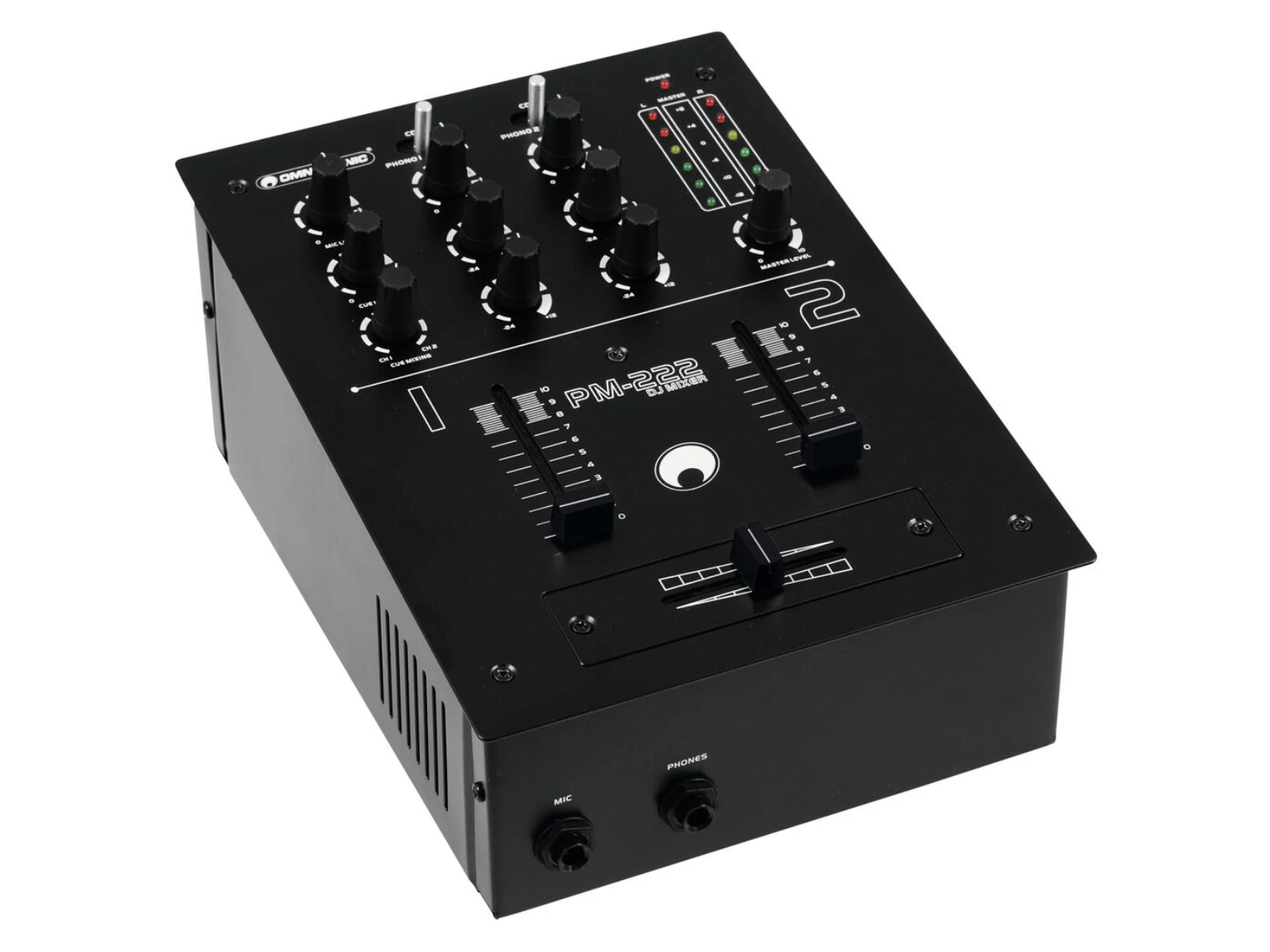

2-channel DJ mixer
- 2 input channels with gain control, 2-way equalizer and phono/line switching
- DJ microphone input with separate level control
- Pre-fader listening (CUE) to the input channels via adjustable headphones output, with cue mix control
- Replaceable crossfader for crossfading between both channels
- 6-digit stereo LED level meter and master level control
- Outputs: master and record (stereo RCA)
- Desktop console housing
- For application areas such as: Clubs/dancing school; mobile djs / entertainer; Installation
Package contents
- 1 x user manual, 1 x power cord, 1 x mixer
Manuals
ManualsParaméterek
Power supply | 100-240 V AC, 50/60 Hz |
Power consumption | 30,00 W |
Protection class | Protection class II |
Power connection | Mains input via C8 (M) "figure 8" mounting version power supply cord with Euro plug (provided) |
Frequency range | 20 - 20000 Hz |
S/N ratio | >70 dB |
THD | <0,025 % at 1 kHz |
Impedance | Input:Microphone 47 kOhm |
Input | line 47 kOhm |
Input | phono 47 kOhm |
Gain | Input:variable |
Control elements | Power switch, source selector, Crossfader |
Status LED | Master level meter, power |
Connections | Input:Microphone via 1 x 6.3 mm jack socket (mono) mounting version |
Input | line via 4 x stereo RCA |
Input | phono via 2 x stereo RCA |
Output | master via 1 x stereo RCA |
Output | rec. via 1 x stereo RCA |
Output | headphones via 1 x 6.3 mm jack socket (stereo) mounting version |
Channels | Input chanel:2 x stereo with Line-Line-Phono switch via RCA, channel control via fader, 2-band tone control EQ, gain control |
Microphon chanal | 1 x mono via Jack, channel control via Rotary dial, Cue-mix-function |
Master output | 1 x stereo via RCA, channel control via Rotary dial |
Headphones output | 1 x stereo via Jack, channel control via Rotary dial |
Max. level | Output:master +19 dBu |
Housing design | Desktop console housing |
Dimensions | Width:19 cm |
Depth | 26 cm |
Height | 13,7 cm |
Weight | 2,00 kg |
