Leírás

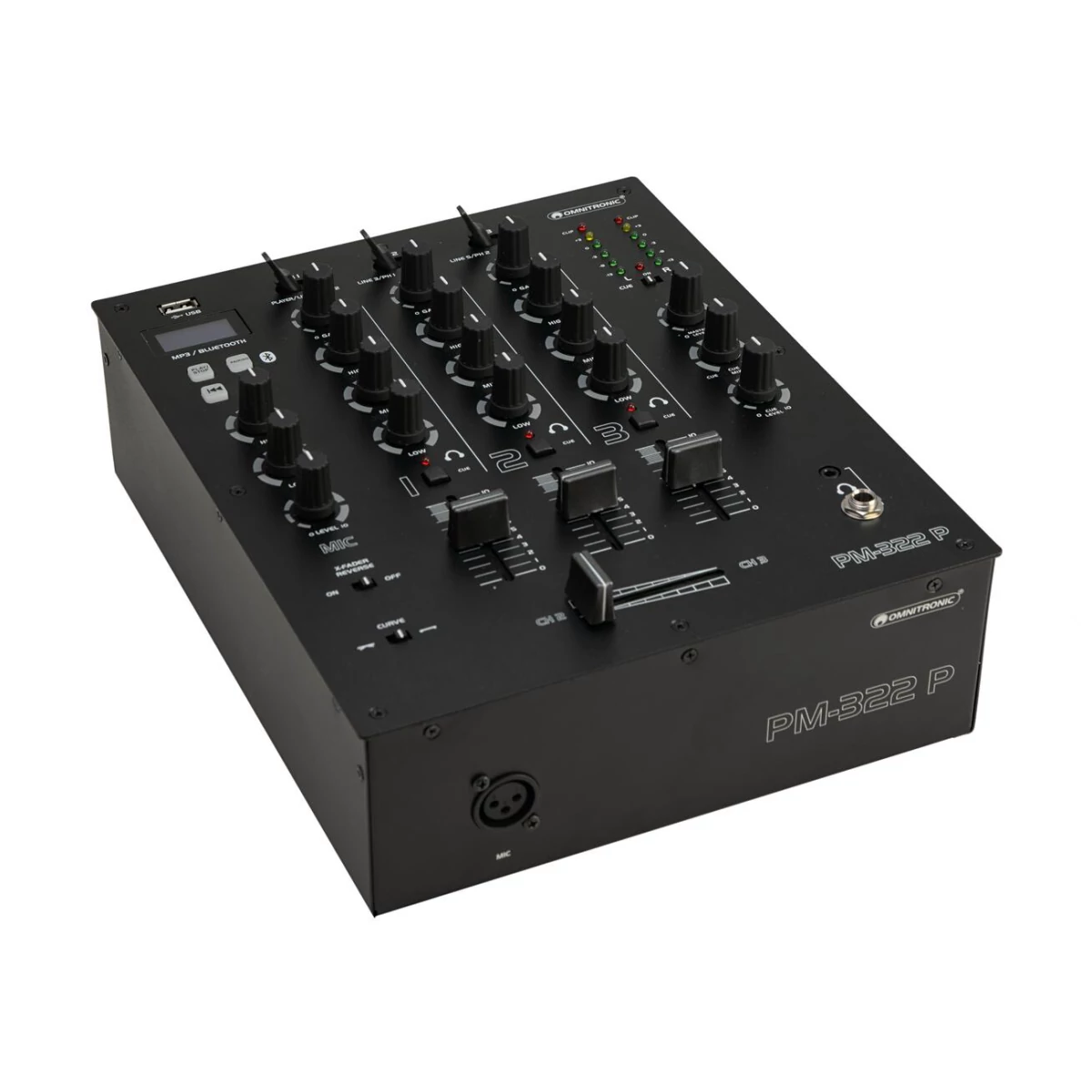

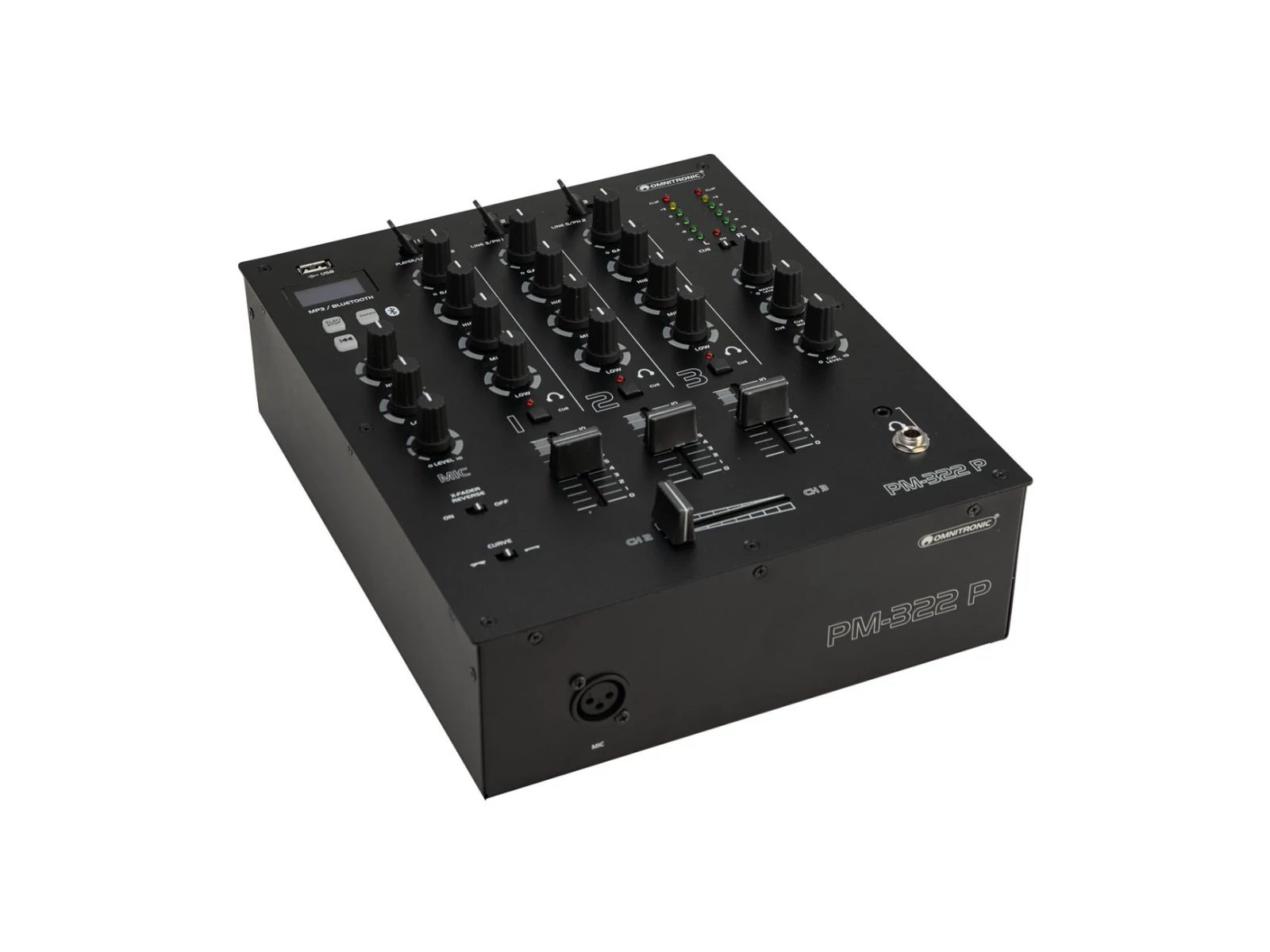

3-channel DJ mixer with Bluetooth and MP3 player
- 3 input channels with gain control, 3-band equalizer, cue button and channel fader
- DJ microphone channel with level control and 2-band equalizer
- Pre-fader listening to all input channels and the master output via adjustable stereo headphones output
- Crossfader with adjustable curve and reverse function
- Master channel with level control and 6-digit stereo LED level meter, switchable between master and PFL signal
- 6-digit stereo LED level meter
- 6 line and 2 phono inputs via RCA jacks
- Balanced XLR and RCA outputs
- Record output, independent of the master
- Control via Bluetooth
- LCD display
- Operating range up to 10m with line-of-sight
- Desktop console housing
- For application areas such as: Party room; mobile djs / entertainer; mobile use
Package contents
- 1 x mixer, 1 x user manual, 1 x power cord, 1 x RCA cable, 1 x declaration of conformity
Manuals
ManualsParaméterek
| Power supply | 100-240 V AC, 50/60 Hz |
| Power consumption | 25 W |
| Protection class | Protection class II |
| Power connection | Mains input via C8 (M) "figure 8" mounting version power supply cord with Euro plug (provided) |
| Control | Bluetooth |
| Bluetooth | Version:4,2 + EDR |
| Profiles | A2DP, AVRCP |
| Bluetooth device name | PM-322P |
| Audio player | USB + Bluetooth |
| Range | Range up to 10m with line-of-sight |
| Carrier frequency | 2,4 GHz |
| Housing color | Black |
| Display type | LCD display |
| Control elements | Audio player, Crossfader, Cue-mix-function, source selector, Crossfade curve switch; Crossfade reverse switch |
| Status LED | Switchable master level meter, clip, CUE, power |
| Connections | Input:line via 4 x stereo RCA |
| Input | line/phono via 2 x stereo RCA |
| Input | audio player via 1 x USB A (F) mounting version |
| Input | microphone via 1 x 6.3 mm jack socket (mono) mounting version |
| Output | master via 2 x 3-pin XLR |
| Output | master via 2 x stereo RCA |
| Output | headphones via 1 x 6.3 mm jack socket (stereo) mounting version |
| Channels | Input chanel:1 x stereo with Line-line-player switch via RCA or player, channel control via fader, 3-band tone control EQ, gain control, CUE switch |
| Input chanel | 2 x stereo with Line-Line/Phono switch via RCA, channel control via fader, 3-band tone control EQ, gain control, CUE switch |
| Microphon chanal | 1 x mono via jack, channel control via rotary dial, 2-band tone control EQ, Cue-mix-function |
| Master output | 1 x stereo via XLR or RCA, channel control via rotary dial |
| Headphones output | 1 x stereo via jack, channel control via rotary dial |
| Music format | MP3, WAV; WMA |
| USB port | Typ A |
| Housing design | Desktop console housing |
| Dimensions | Length:28,3 cm |
| Width | 23 cm |
| Height | 10,7 cm |
| Weight | 2,58 kg |
| Audio player | |
| Available storage media | USB devices max. 32GB (FAT 32) |
