Leírás
4-channel rotary mixer with 3-band frequency isolator for DJs

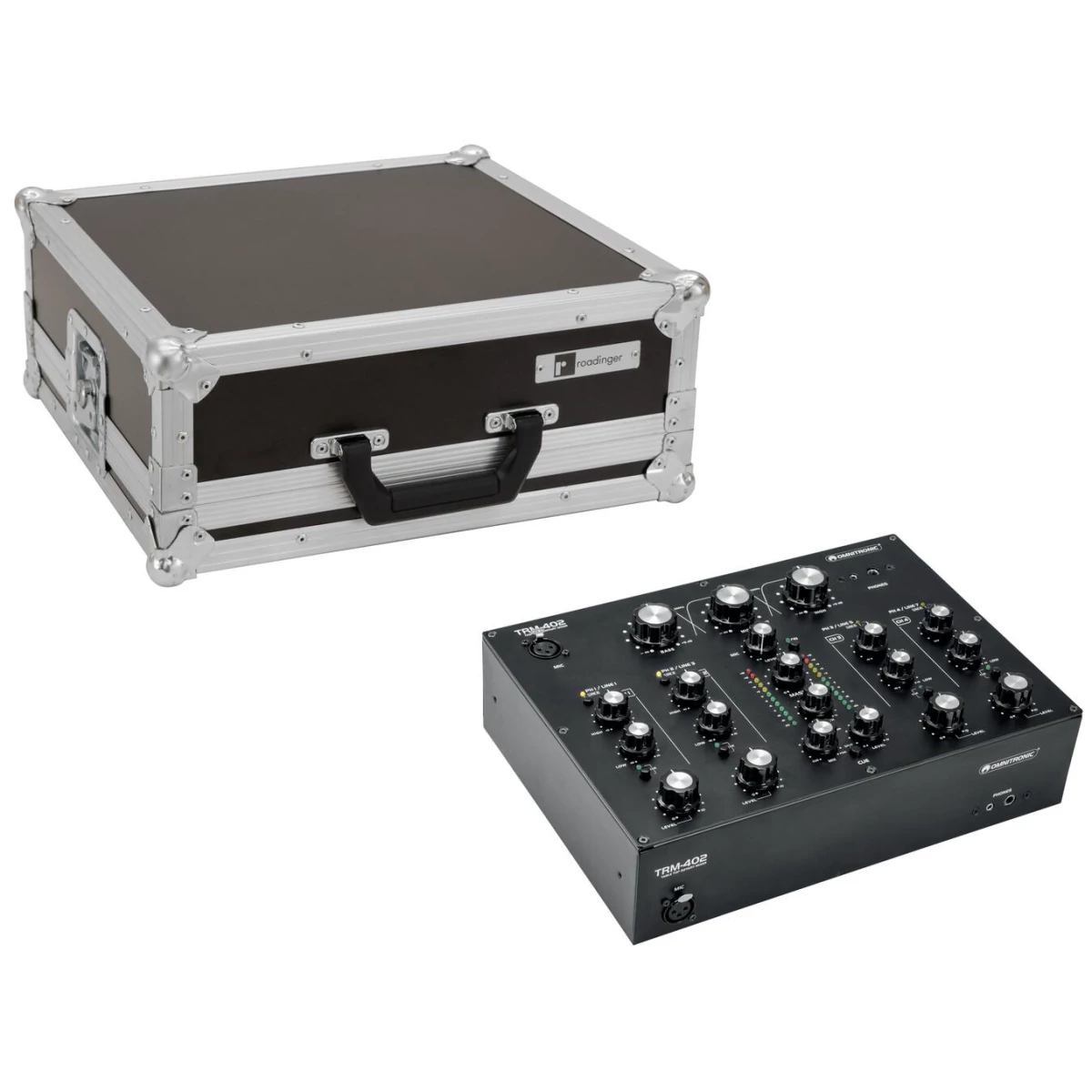

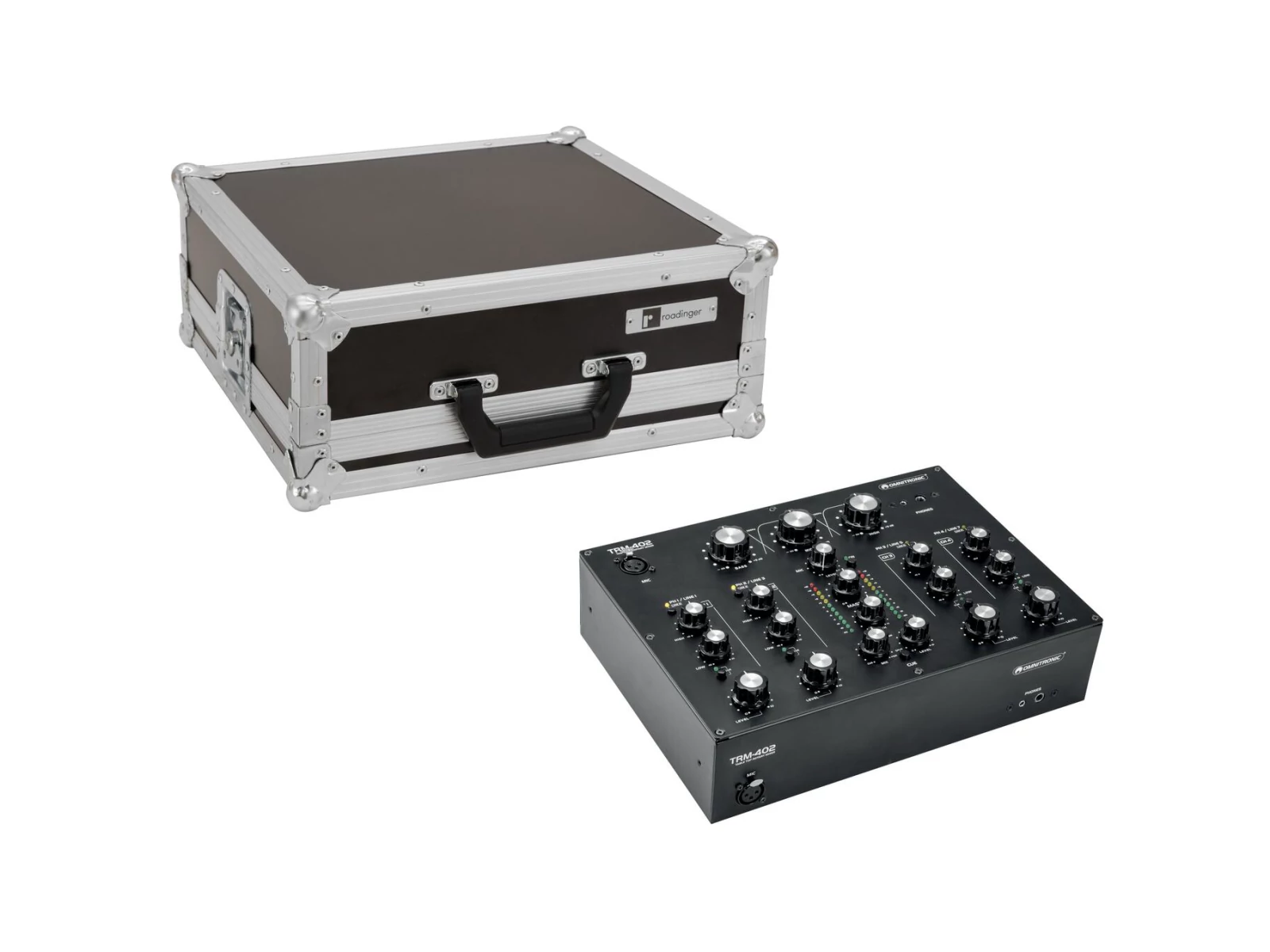

OMNITRONIC TRM-402 4-Channel Rotary Mixer
- Classic rotary mixer with 4 input channels and integrated 3-band frequency isolator for DJs
- Gain control, 2-way equalizer (highs/lows) and phono/line switching per channel
- Dedicated boost and kill cut
- Kill cut feature allows DJs to completely remove low, mid and high frequencies for amazing mixing

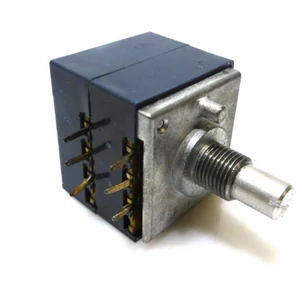

- Classic ALPS potentiometers (Blue Velvet RK27)
- High-grade components ensure long life and excellent sound quality
- DJ microphone input with separate level control
- Prefader listening to input channels and the master output via adjustable headphones output, with cue mix/split function
- 12-digit stereo LED level meter and master level control
- Booth output with separate level control
- Dual inputs for DJ microphone and headphones on the top and front panel
- Outputs: master and booth (XLR/RCA L/R), record (stereo RCA)
- Desktop console housing
- For application areas such as: Clubs/dancing school; mobile use; mobile djs / entertainer; homerecording and studios
Package contents
- 1 x device, 1 x power cord, 1 x user manual
ROADINGER Flightcase TRM-402
Carrying case, PRO version
- High-quality workmanship with birch multiplex 6,5 mm, dark brown, laminated
- Interior with foam padding
cover with foam padding - Removable cover
- Aluminum profile frames 22mm with rounded edges
- Rugged carrying handle
- 2 high-quality spring locks
- Rubber feet
- Branded hardware
- Made in Europe
- For further information about this product, please refer to the Data Sheet under "Downloads"
Paraméterek
| Weight | 7,90 kg |
| OMNITRONIC TRM-402 4-Channel Rotary Mixer | |
| Power supply | 100-240 V AC, 50/60 Hz |
| Power consumption | 7,2 W |
| Protection class | Protection class I |

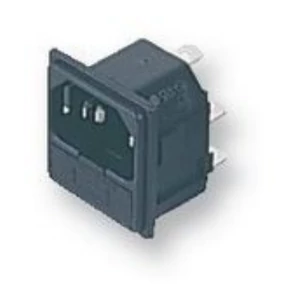

| Power connection | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Frequency range | 20 - 20000 Hz Microphone |
| 20 - 20000 Hz line | |
| 40 - 18000 Hz phono | |
| S/N ratio | >77 dB phono |
| >80 dB Microphone | |
| >85 dB line | |
| THD | Line <0,03 % at 1 kHz |
| Phono <0,1 % at 1 kHz | |
| Gain | Microphone 44 dB |
| Line 20 dB | |
| Phono 60 dB to +75 dB | |
| Isolators | Master Gain:- ∞ bis +9 |
| Low/mid 300 Hz, 18db/oct , Butterworth | |
| Mid/high 4000 Hz, 18db/oct , Butterworth | |
| Control elements | Power switch, source selector, Cue mix split function, tone control |
| Status LED | Power, master level meter, chanal source, CUE, Microphone |
| Connections | Input:line via 4 x stereo RCA |
| Input | line/phono via 4 x stereo RCA |
| Input | Microphone via 2 x 3-pin XLR |
| Output | headphones via 2 x 6.3 mm jack socket (stereo) mounting version |
| Output | headphones via 2 x 3.5 mm jack (stereo) mounting version |
| Output | rec. via 1 x stereo RCA |
| Output | booth via 2 x 3-pin XLR |
| Output | booth via 1 x stereo RCA |
| Output | master via 2 x 3-pin XLR |
| Output | master via 1 x stereo RCA |
| Channels | Input chanel:4 x stereo with Line-Line/Phono switch via RCA, channel control via Rotary, 2-band tone control EQ, gain control, Phono gain rotery, CUE switch, source selector |
| Microphon chanal | 1 x mono via XLR, channel control via Rotary dial, ON AIR switch |
| Booth output | 1 x stereo via XLR or RCA, channel control via Rotary dial |
| Master output | 1 x stereo via XLR or RCA, channel control via Rotary dial |
| Headphones output | 1 x stereo via Jack, channel control via Rotary dial, Cue mix split function |
| Max. level | Output:+22 dBu |
| Material | Metal |
| Color | Black |
| Housing design | Desktop console housing |
| Dimensions | Width:33 cm |
| Depth | 24,7 cm |
| Height | 10,7 cm |
| Weight | 4,05 kg |
| ROADINGER Flightcase TRM-402 | |
| Maximum load | 25 kg |
| Removable covers | 1 pc/pcs |
| Aluminum profile frames | 22 mm |
| Carrying handle | 1 pc/pcs |
| Lock | Spring lock:2 pc/pcs |
| Transport aid | Rubber feet |
| Use of brands | Branded hardware |
| Material | Birch multiplex, 6,5 mm |
| Color | Dark brown, laminated |
| Device compartment | 33 cm x 23,5 cm x 4 cm |
| Accessory compartment | 37 cm x 6,5 cm x 4,5 cm |
| Inside dimensions | 37 cm x 30 cm x 4,5 cm |
| Dimensions | Width:40 cm |
| Depth | 37 cm |
| Height | 17,5 cm |
| Weight | 3,85 kg |
