Leírás

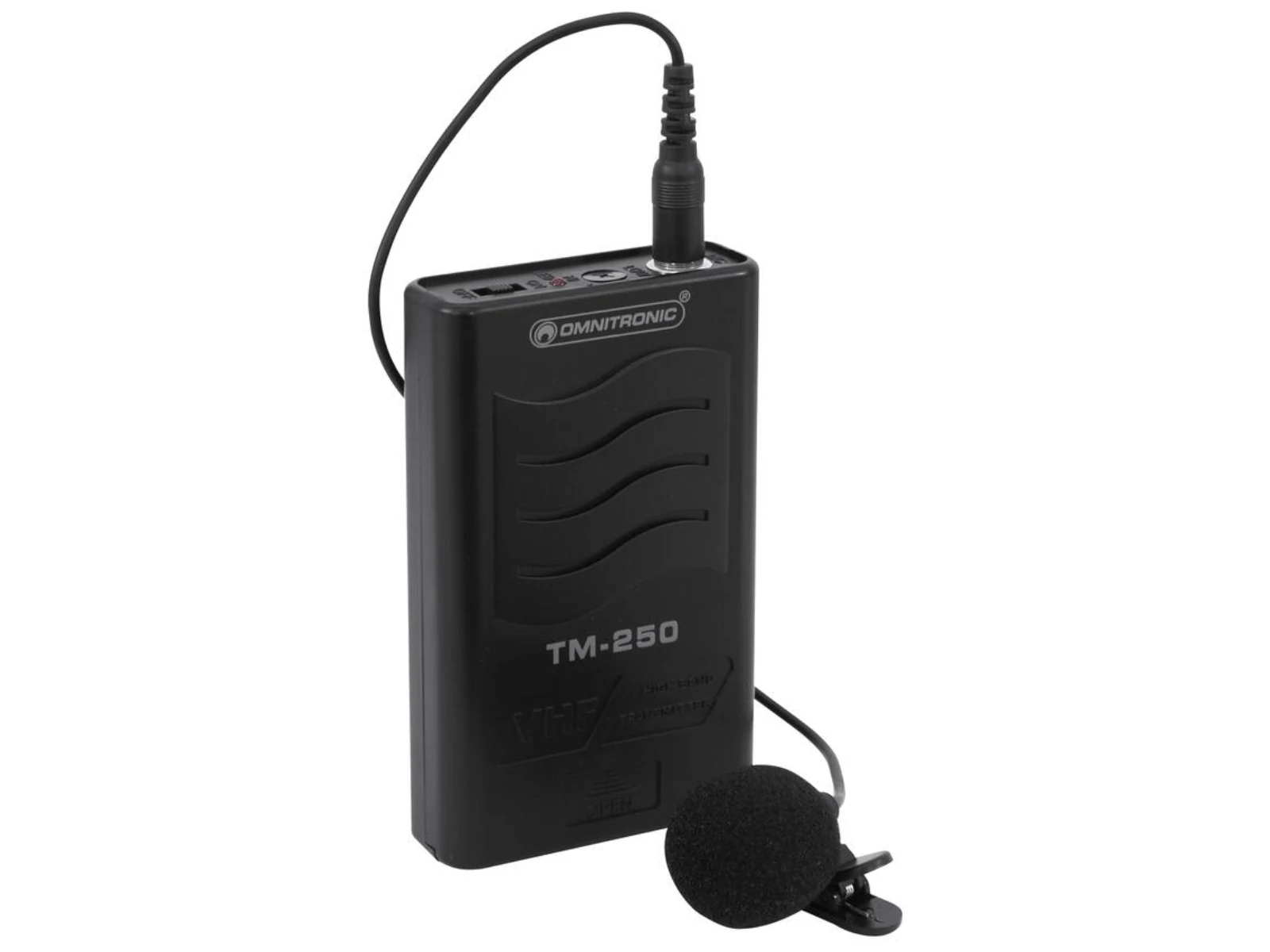

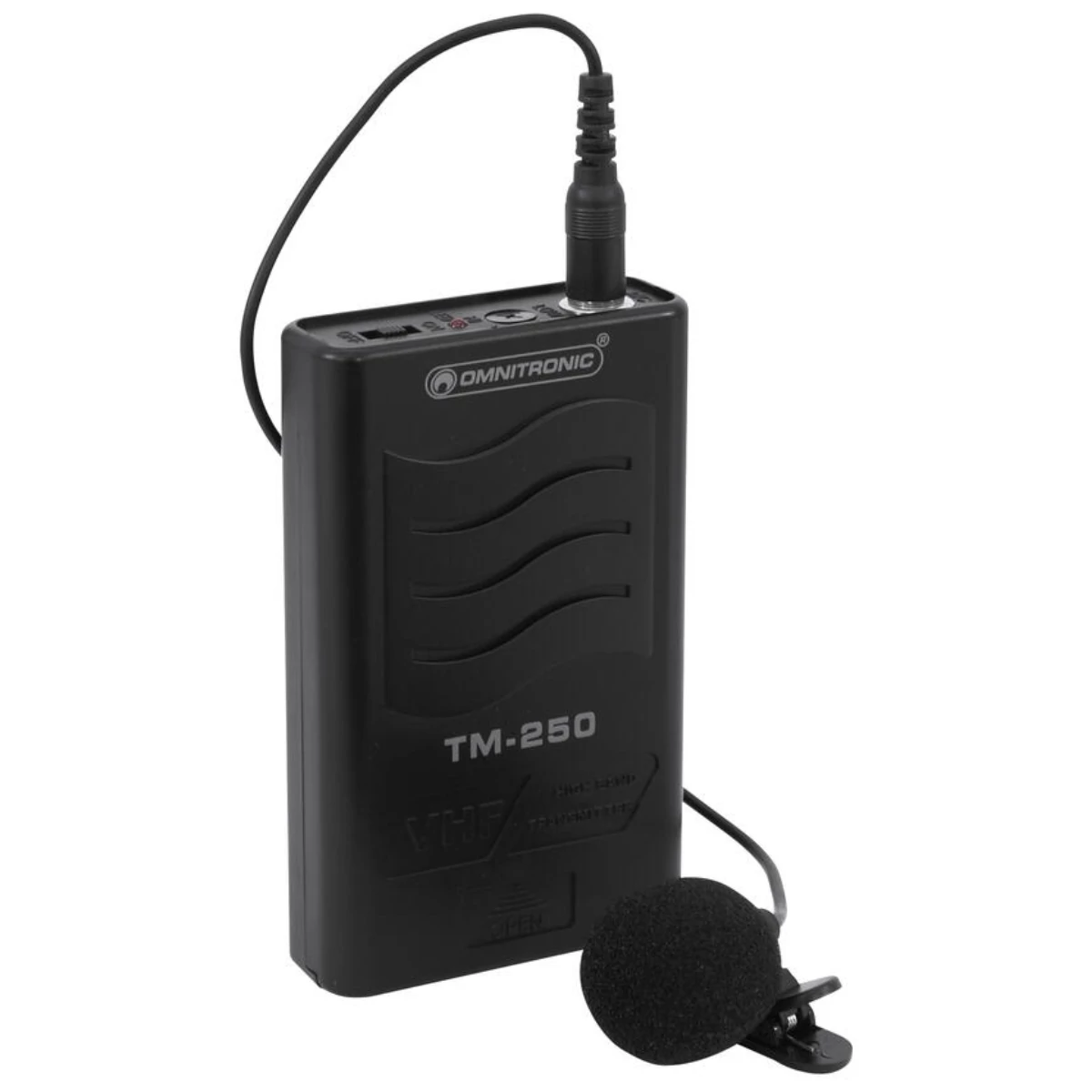

VHF bodypack transmitter set for TM-250
- Set includes transmitter and lavalier microphone
- Matches receiver VHF-250 with the same carrier frequency
- Operation with fixed VHF frequency 179.000 MHz
- On/Off/Mute operation selector
- LED indicator for battery capacity
- Transmitting power 8.5 mW
- 3.5 mm jack (1/8") screw connection to headset or lavalier mic
- Power supply via 9 V battery (supplied)
- License-free and approved in Germany and other EU countries
- Polar pattern: Cardioid
Manuals
ManualsParaméterek
| Power connection | Battery/battery pack |
| Capsule type | Condenser |
| Polar pattern | Cardioid |
| Battery | 1 x 9.0 V E block (provided) |
| THD | <0,5 % at 1 kHz |
| Connections | 1 x Microphone via 3.5 mm jack (mono) mounting version screwable |
| Frequency band | VHF |
| Carrier frequency | 179 MHz |
| Frequency selection | Fixed frequencys |
| Modulation | FM; F3F |
| RF power output | 8,5 mW |
| Frequency stability | ą 0,03 % |
| Switch | On/off switch |
| Material | Plastic |
| Dimensions | Width:6,5 cm |
| Depth | 3,2 cm |
| Height | 10,7 cm |
| Weight | 170 g |
