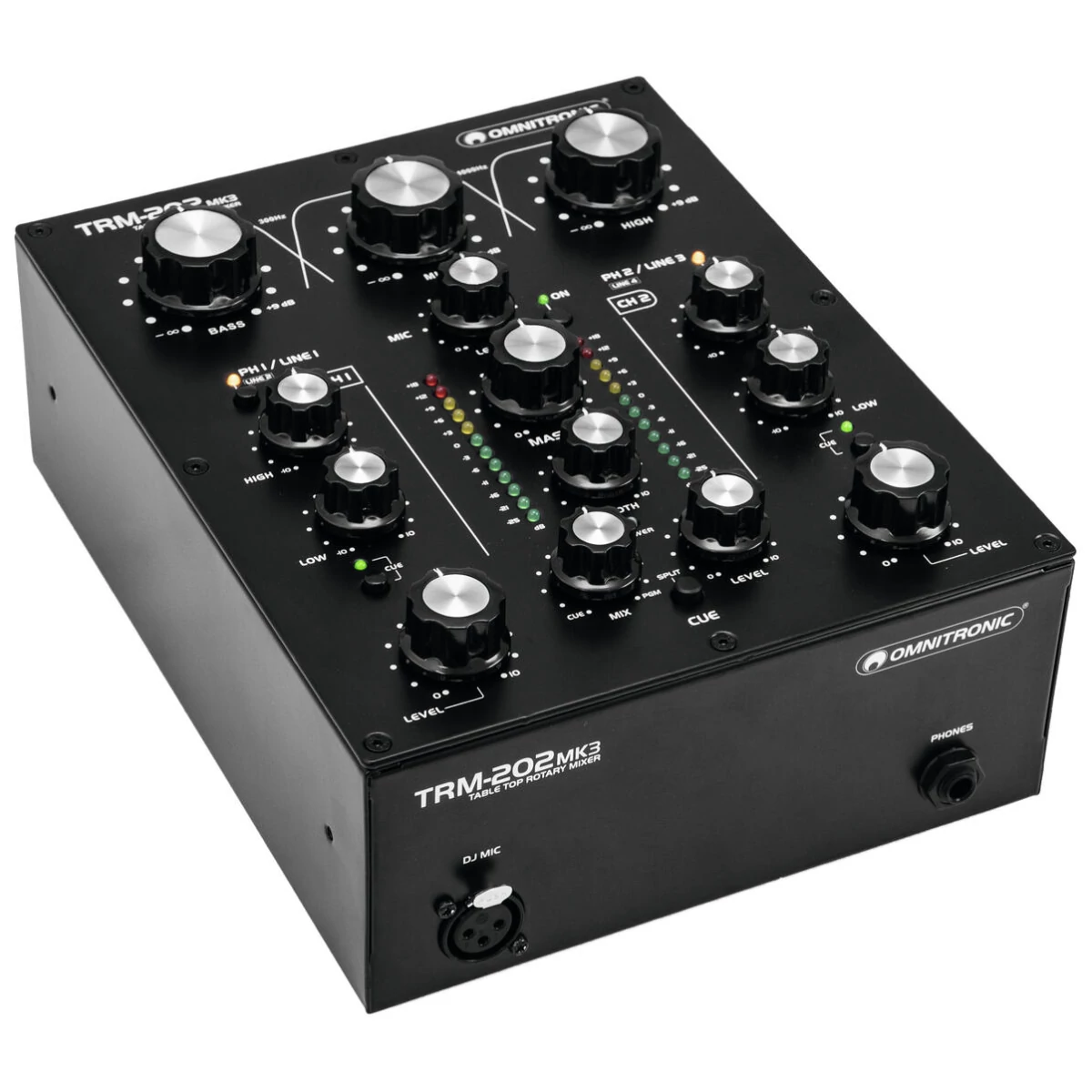

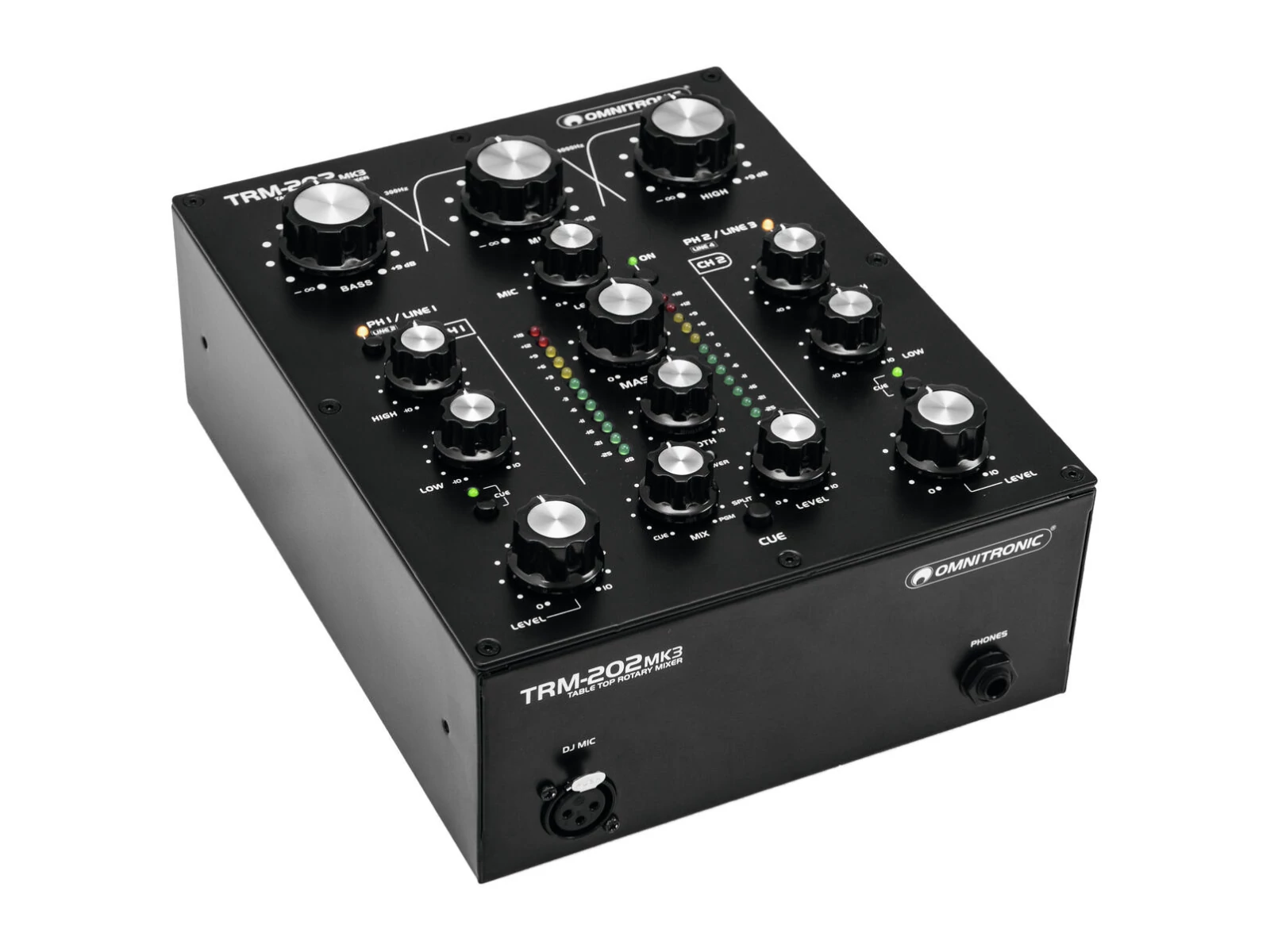

OMNITRONIC TRM-202MK3 2-Channel Rotary Mixer

Ha részletfizetéssel vásárolná meg a terméket, helyezze a kosárba, majd a fizetési módnál jelölje be Cetelem Online Áruhitelt.

Leírás

2-channel rotary mixer with 3-band frequency isolator for DJs

Classic rotary mixer with 2 input channels and integrated 3-band frequency isolator for DJs
Gain control, 2-way equalizer (highs/lows) and phono/line switching per channel
Dedicated boost and kill cut
Kill cut feature allows DJs to completely remove low, mid and high frequencies for amazing mixing
Classic ALPS potentiometers (Blue Velvet RK27)
High-grade components ensure long life and excellent sound quality
DJ microphone input with separate level control
Prefader listening to input channels and the master output via adjustable headphones output, with cue mix/split function
12-digit stereo LED level meter and master level control
Booth output with separate level control
Outputs: master and booth (XLR/RCA L/R), record (stereo RCA)
Desktop console housing
For application areas such as: Clubs/dancing school; mobile use; mobile djs / entertainer; homerecording and studios

Package contents

1 x device, 1 x power cord, 1 x user manual

Manuals

Paraméterek

Power supply	100-240 V AC, 50/60 Hz
Power consumption	6,5 W
Protection class	Protection class I
Power connection	Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Frequency range	20 - 20000 Hz Microphone
20 - 20000 Hz line
40 - 18000 Hz phono
S/N ratio	>77 dB phono
>80 dB Microphone
>85 dB line
THD	Line <0,03 % at 1 kHz
Phono <0,1 % at 1 kHz
Gain	Microphone 44 dB
Line 20 dB
Phono 60 dB to +75 dB
Isolators	Master Gain:- ∞ bis +9
Low/mid 300 Hz, 18db/oct , Butterworth
Mid/high 4000 Hz, 18db/oct , Butterworth
Control elements	Power switch, source selector, Crossfader, Cue mix split function, tone control
Status LED	Power, master level meter, chanal source, CUE, Microphone
Connections	Input:line via 2 x stereo RCA
Input	line/phono via 2 x stereo RCA
Input	Microphone via 1 x 3-pin XLR

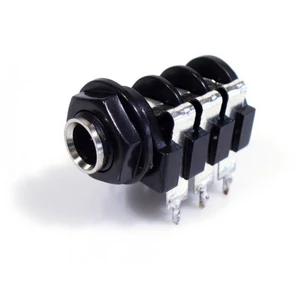

Output	headphones via 1 x 6.3 mm jack socket (stereo) mounting version
Output	rec. via 1 x stereo RCA
Output	booth via 2 x 3-pin XLR
Output	booth via 1 x stereo RCA
Output	master via 2 x 3-pin XLR
Output	master via 1 x stereo RCA
Channels	Input chanel:2 x stereo with Line-Line/Phono switch via RCA, channel control via Rotary, 2-band tone control EQ, CUE switch, Phono gain rotery, source selector
Microphon chanal	1 x mono via XLR, channel control via Rotary dial, ON AIR switch
Booth output	1 x stereo via XLR or RCA, channel control via Rotary dial
Master output	1 x stereo via XLR or RCA, channel control via Rotary dial
Headphones output	1 x stereo via Jack, channel control via Rotary dial, Cue mix split function
Max. level	Output:+22 dBu
Material	Metal
Color	Black
Housing design	Desktop console housing
Dimensions	Width:19 cm
Depth	25 cm
Height	10,7 cm
Weight	2,68 kg
