Leírás

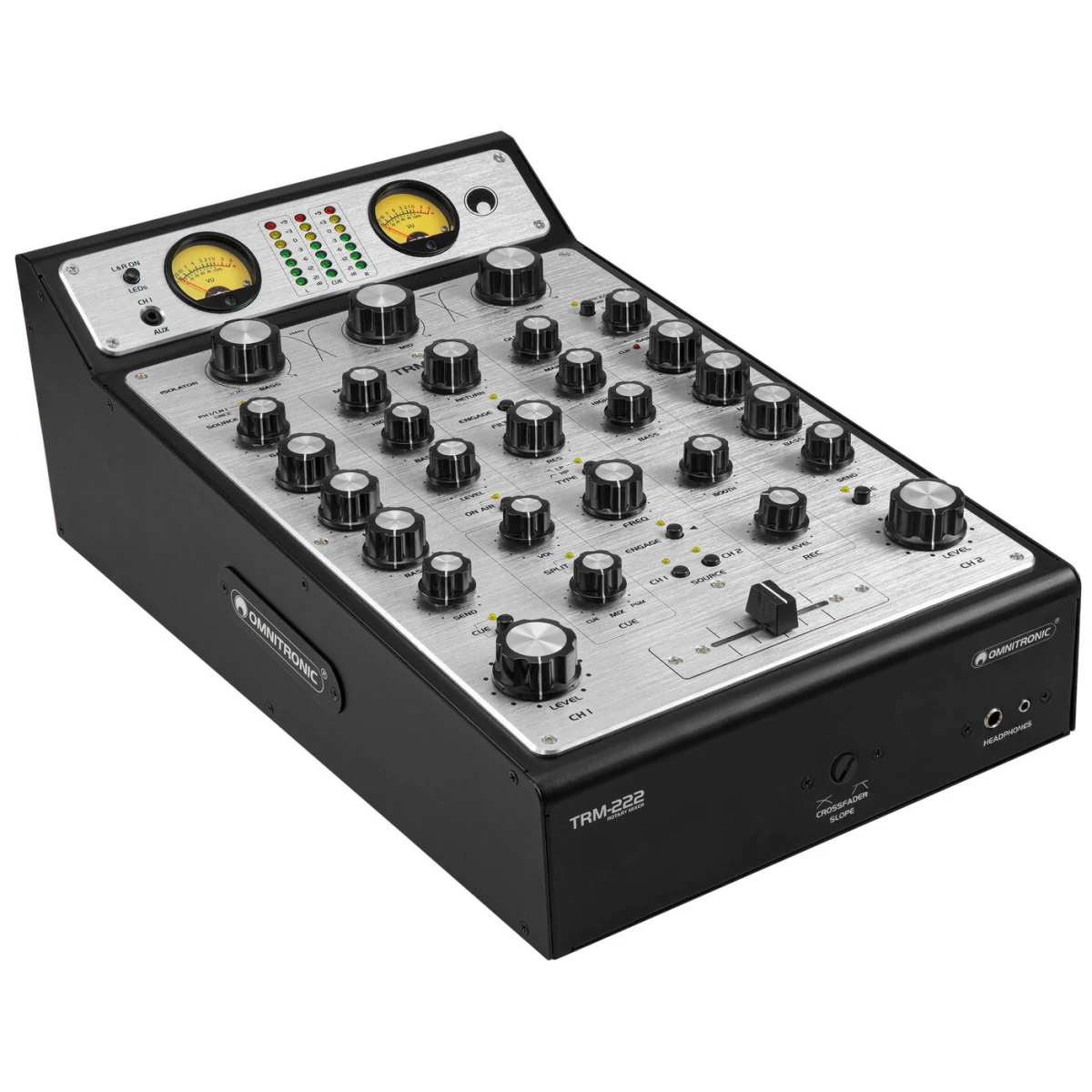

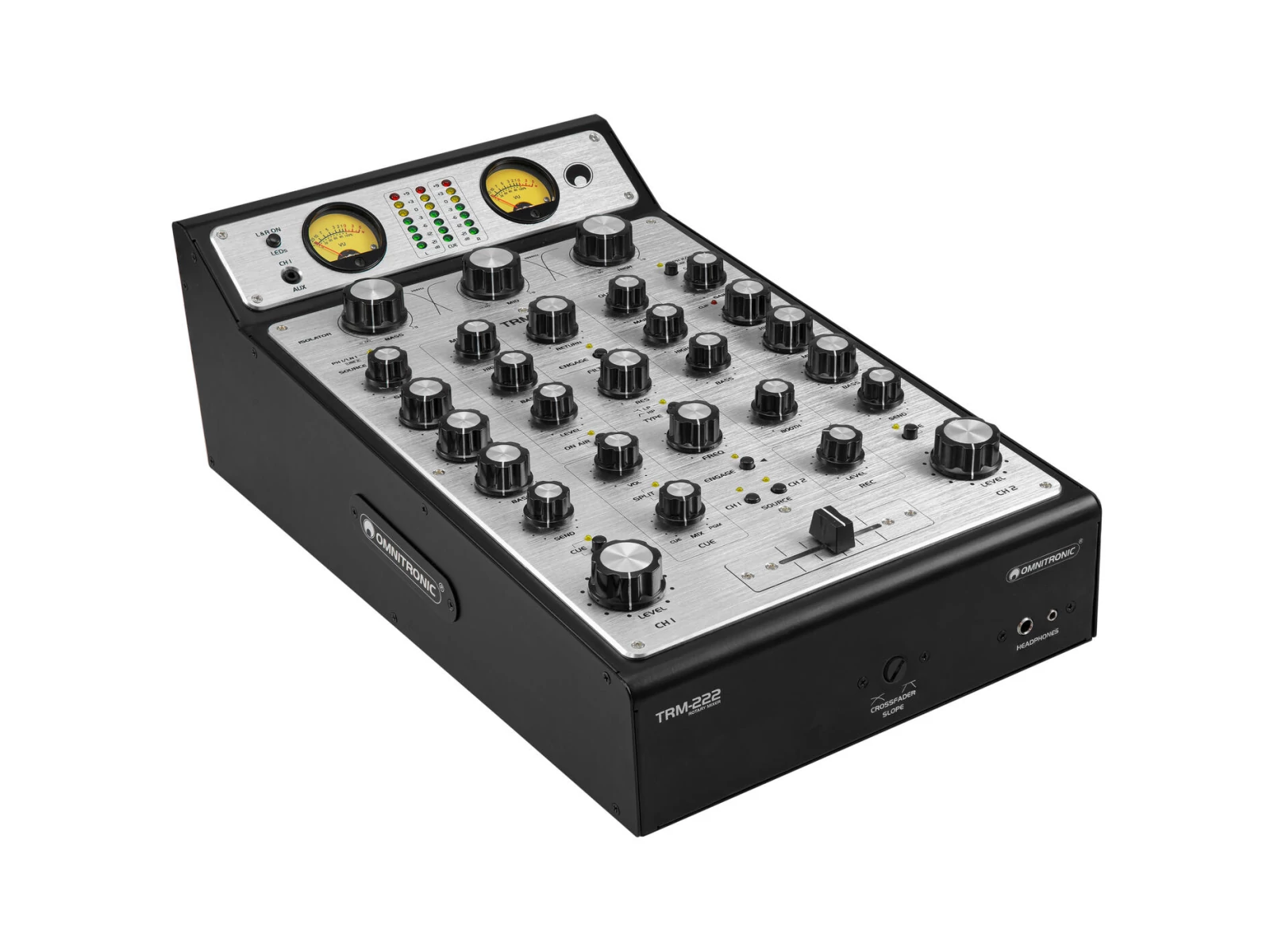

Rotary mixer with 3-band frequency isolator, VCR filter and FX loop
- Filter section with resonance and sweep control for creative sound shaping

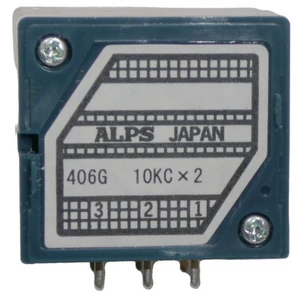

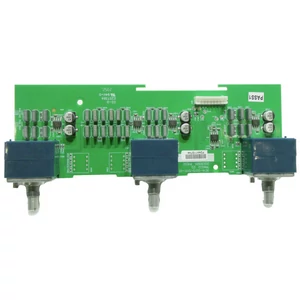

- 3-band master frequency isolator with vintage ALPS potentiometers (Blue Velvet RK27)
- Kill cut feature allows DJs to completely remove low, mid and high frequencies for amazing mixing
- 2 stereo input channels with gain control, clip LED, 3-way equalizer, FX Send and phono/line switching
- 2 microphone input channels with gain control, 2-way equalizer on air switch
- 2 effects send/return paths

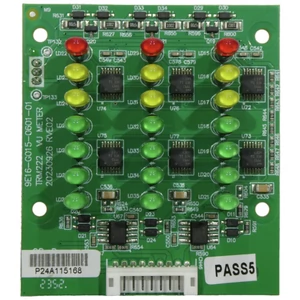

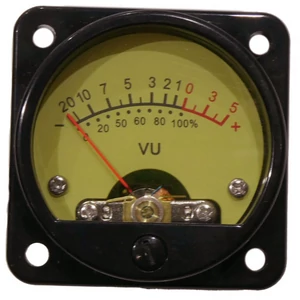

- Dual analog VU meter
- Direct outputs for Timecode applications
- High-grade components ensure long life and excellent sound quality
- Booth output with separate 2-way equalizer and level control
- Record output, independent of the master

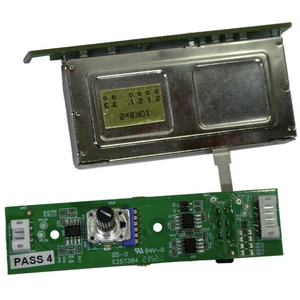

- Fully assignable VCA crossfader with adjustable curve

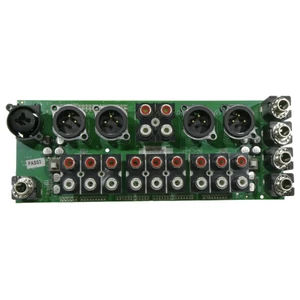

- Outputs: master and booth (XLR/RCA L/R), record (RCA L/R), master insert send/return (RCA L/R), FX in/out (stereo jack)
- Desktop console housing
- For application areas such as: Clubs/dancing school; mobile use; mobile djs / entertainer; homerecording and studios
Package contents
- 1 x mixer, 1 x cover, 1 x user manual
Manuals
ManualsParaméterek
| Power supply | 100-240 V AC, 50/60 Hz |
| Power consumption | 15 W |
| Protection class | Protection class I |
| Power connection | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Cable length | 1,5 m detachable |
| Frequency range | 20 - 20000 Hz |
| S/N ratio | >100 dB |
| THD | <0,05 % at 1 kHz |
| Gain | Line -12 dB to +12 dB |
| Phono -40 dB to +5 dB | |
| FX 20 dB | |
| Microphone 55 dB | |
| DJ filter | Routable:LPF, HPF, |
| Isolators | Master Gain:- ∞ bis +9 |
| Low/mid 300 Hz, 18db/oct , Butterworth | |
| Mid/high 4000 Hz, 18db/oct , Butterworth | |
| Housing color | Black; silver |
| Control elements | Power switch, source selector, Crossfader, Crossfader selector switch, Crossfade curve switch; Cue mix split function, tone control |
| Status LED | Power, master level meter, clip, CUE |
| Connections | Input:line via 2 x stereo RCA |
| Input | line/phono via 2 x stereo RCA |
| Input | Microphone via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) |
| Input | AUX returns via 2 x 6.3-mm-jack (bal.) |
| Output | Timecode via 2 x stereo RCA |

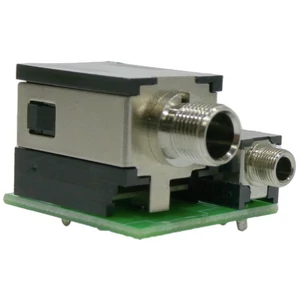

| Output | headphones via 2 x 6.3 mm jack socket (stereo) mounting version |
| Output | headphones via 1 x 3.5 mm jack (stereo) mounting version |
| Output | rec. via 1 x stereo RCA |
| Output | booth via 2 x 3-pin XLR |
| Output | booth via 1 x stereo RCA |
| Output | master via 2 x 3-pin XLR |
| Output | master via 1 x stereo RCA |
| Output | AUX sends via 2 x 6.3-mm-jack (bal.) |
| Channels | Input chanel:2 x stereo with Line-Line/Phono switch via RCA, channel control via Rotary, 3-band tone control EQ, source selector, gain control, CUE switch, FX routing switch |
| Microphon chanal | 1 x mono via Combination socket (XLR/jack), channel control via Rotary, 2-band tone control EQ, ON AIR switch |
| Master output | 1 x stereo via XLR or RCA, channel control via Rotary |
| Booth output | 1 x stereo via XLR or RCA, channel control via Rotary, 2-band tone control EQ |
| Rec. output | 1 x stereo via RCA, channel control via Rotary |
| Headphones output | stereo via Jack, channel control via Rotary |
| Max. level | Output:+21 dBu |
| Material | Metal; aluminum |
| Housing design | Desktop console housing |
| Dimensions | Width:45 cm |
| Depth | 26 cm |
| Height | 16 cm |
| Weight | 5,80 kg |
