Leírás

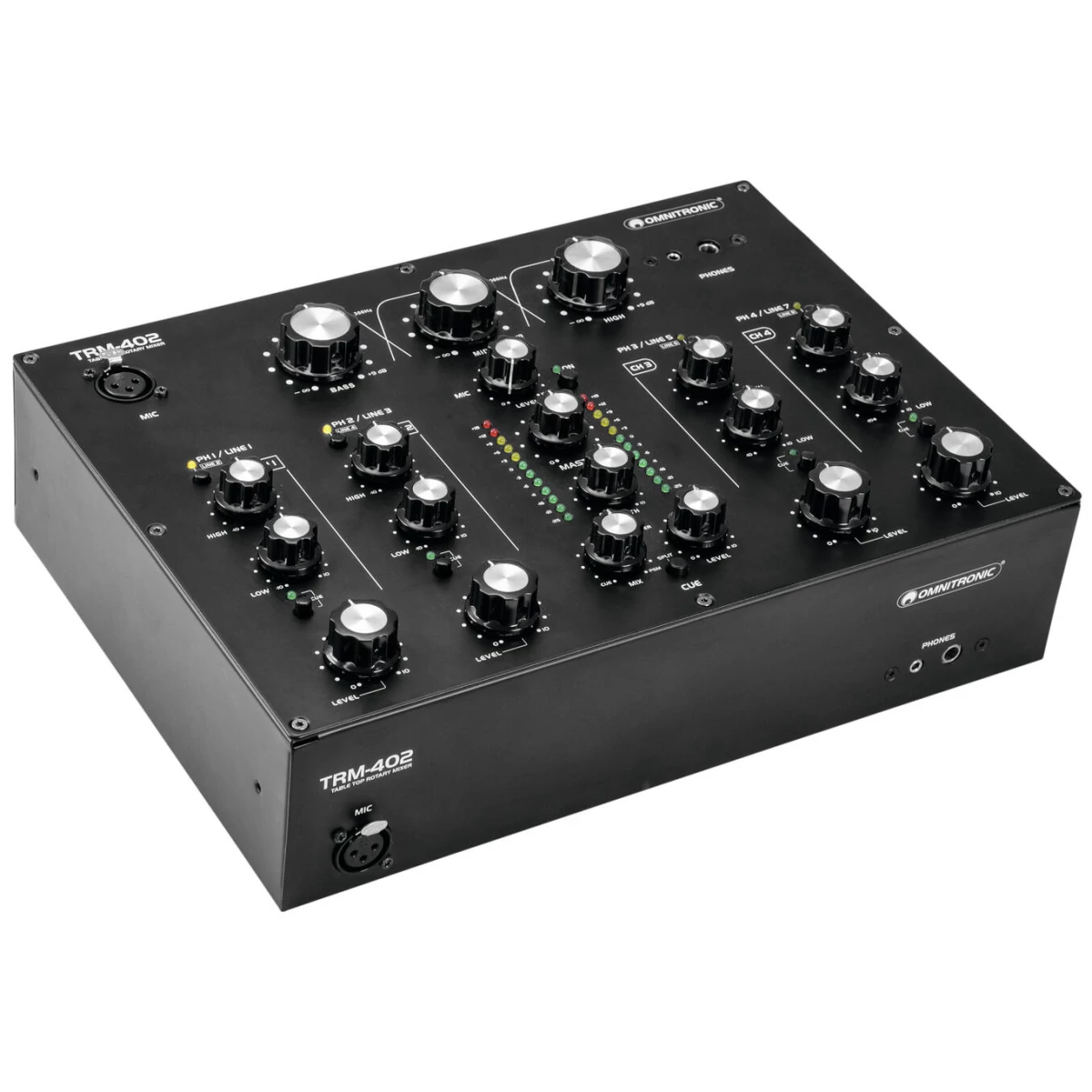

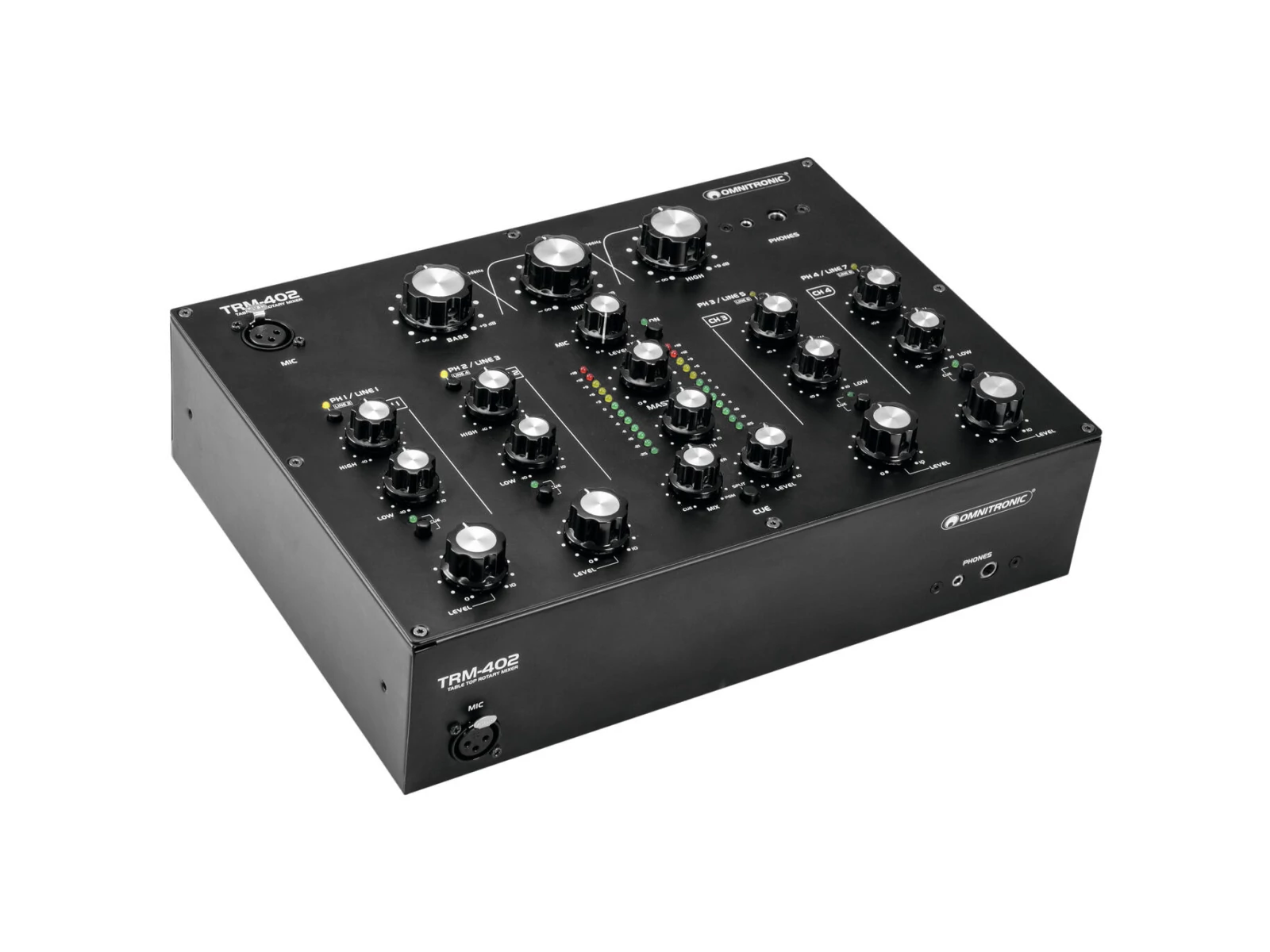

4-channel rotary mixer with 3-band frequency isolator for DJs
- Classic rotary mixer with 4 input channels and integrated 3-band frequency isolator for DJs
- Gain control, 2-way equalizer (highs/lows) and phono/line switching per channel
- Dedicated boost and kill cut
- Kill cut feature allows DJs to completely remove low, mid and high frequencies for amazing mixing
- Classic ALPS potentiometers (Blue Velvet RK27)
- High-grade components ensure long life and excellent sound quality
- DJ microphone input with separate level control
- Prefader listening to input channels and the master output via adjustable headphones output, with cue mix/split function
- 12-digit stereo LED level meter and master level control
- Booth output with separate level control
- Dual inputs for DJ microphone and headphones on the top and front panel
- Outputs: master and booth (XLR/RCA L/R), record (stereo RCA)
- Desktop console housing
- For application areas such as: Clubs/dancing school; mobile use; mobile djs / entertainer; homerecording and studios
Package contents
- 1 x device, 1 x power cord, 1 x user manual
Manuals
ManualsParaméterek
Power supply | 100-240 V AC, 50/60 Hz |
Power consumption | 7,2 W |
Protection class | Protection class I |
Power connection | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
Frequency range | 20 - 20000 Hz Microphone |
20 - 20000 Hz line | |
40 - 18000 Hz phono | |
S/N ratio | >77 dB phono |
>80 dB Microphone | |
>85 dB line | |
THD | Line <0,03 % at 1 kHz |
Phono <0,1 % at 1 kHz | |
Gain | Microphone 44 dB |
Line 20 dB | |
Phono 60 dB to +75 dB | |
Isolators | Master Gain:- ∞ bis +9 |
Low/mid 300 Hz, 18db/oct , Butterworth | |
Mid/high 4000 Hz, 18db/oct , Butterworth | |
Control elements | Power switch, source selector, Cue mix split function, tone control |
Status LED | Power, master level meter, chanal source, CUE, Microphone |
Connections | Input:line via 4 x stereo RCA |
Input | line/phono via 4 x stereo RCA |
Input | Microphone via 2 x 3-pin XLR |
Output | headphones via 2 x 6.3 mm jack socket (stereo) mounting version |
Output | headphones via 2 x 3.5 mm jack (stereo) mounting version |
Output | rec. via 1 x stereo RCA |
Output | booth via 2 x 3-pin XLR |
Output | booth via 1 x stereo RCA |
Output | master via 2 x 3-pin XLR |
Output | master via 1 x stereo RCA |
Channels | Input chanel:4 x stereo with Line-Line/Phono switch via RCA, channel control via Rotary, 2-band tone control EQ, gain control, Phono gain rotery, CUE switch, source selector |
Microphon chanal | 1 x mono via XLR, channel control via Rotary dial, ON AIR switch |
Booth output | 1 x stereo via XLR or RCA, channel control via Rotary dial |
Master output | 1 x stereo via XLR or RCA, channel control via Rotary dial |
Headphones output | 1 x stereo via Jack, channel control via Rotary dial, Cue mix split function |
Max. level | Output:+22 dBu |
Material | Metal |
Color | Black |
Housing design | Desktop console housing |
Dimensions | Width:33 cm |
Depth | 24,7 cm |
Height | 10,7 cm |
Weight | 4,05 kg |
