Leírás

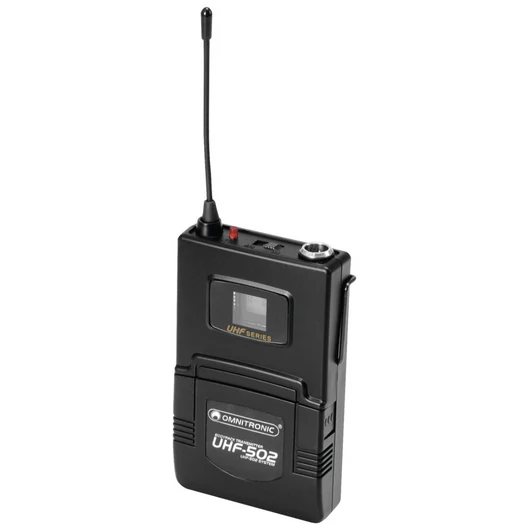

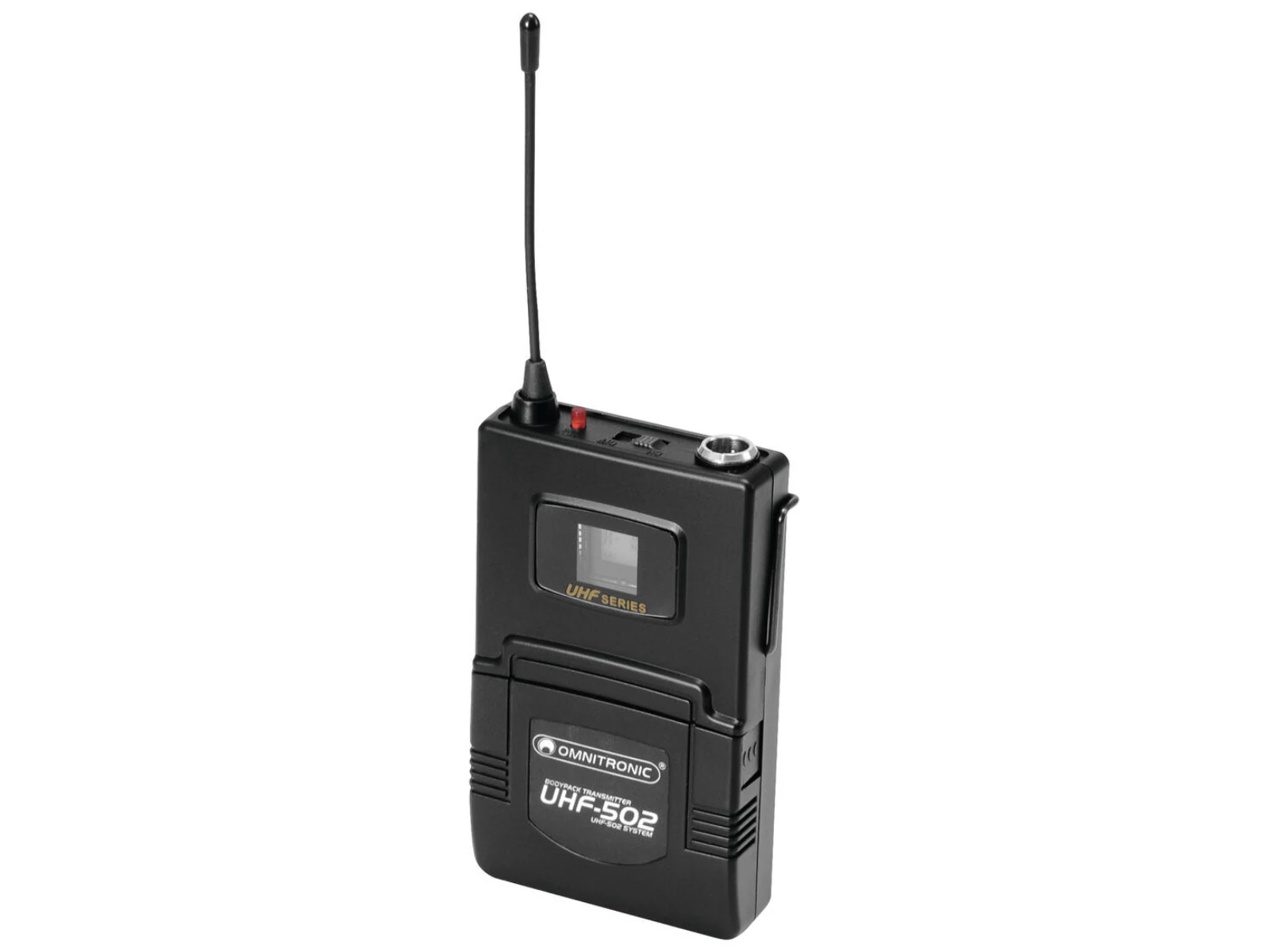

Bodypack transmitter with lavalier microphone
- Pocket transmitter for UHF-502 microphone system
- Incl. lavalier microphone
- Headset microphone optional
- Operation in the Duplex Gap 823-832 MHz
- Pilot tone technology (PLL) for interference-free operation
- Infrared interface for easy and error-free synchronization with the receiver via infrared signal
- LCD for battery capacity and transmission channel
- Sensitivity adjustable
- Transmitting power 5 mW/10 mW, switchable
- LED battery indicator
- Belt clip
- Operation via 2 x 1.5 V batteries (type AA), not included
- License-free and approved in large parts of the EU (please check on a country-by-country basis)
transmitter
- Use a operating range up to 50m with line of sight
Microphone
- Polar pattern: Cardioid
Paraméterek
| Type | Bodypack with microphone |
| Weight | 140 g |
| Transmitter | |
| Type | Pocket transmitter |
| Power connection | Battery/battery pack |
| Battery | 2 x Mignon (AA) (not included) |
| S/N ratio | >90 dB |
| THD | <1 % at 1 kHz |
| Output voltage | 5 V |
| Connections | Input:Microphone via Mini XLR (M) 3-pin mounting version |
| Frequency band | UHF 823 - 832 MHz |
| Frequency selection | 100 Switchable frequencys |
| Modulation | FM |
| RF power output | 5 mW (LO); 10 mW (HI) |
| Frequency stability | ą 0,001 % |
| Range | 50 m with line of sight |
| Color code | CH A= green, CH B= orange, |
| Switch | On/off switch |
| Dimensions | Width:6,6 cm |
| Depth | 2,2 cm |
| Height | 10,8 cm |
| Microphone | |
| Type | Lavalier microphone |
| Power supply | 2-10 V DC |
| Cable length | 1 m |
| Capsule type | Electret |
| Size | Ř 5,2 mm x 9,7 mm |
| Polar pattern | Cardioid |
| Frequency range | 50 - 15000 Hz |
| S/N ratio | >63 dB |
| Sensitivity | -47 dB |
| Impedance | 680 Ohm |
| Connections | Output:1 x via Mini XLR (F) 3-pin |
