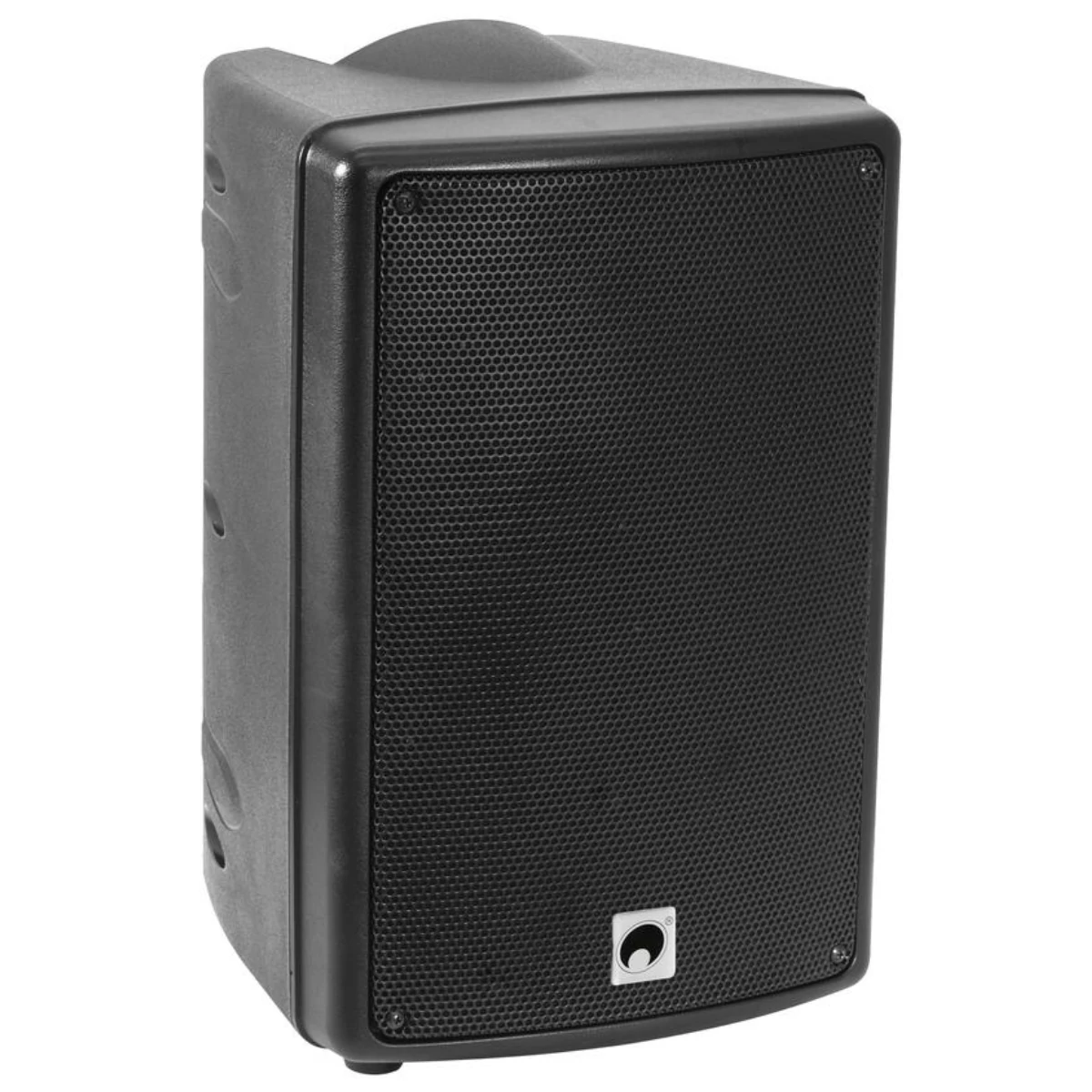

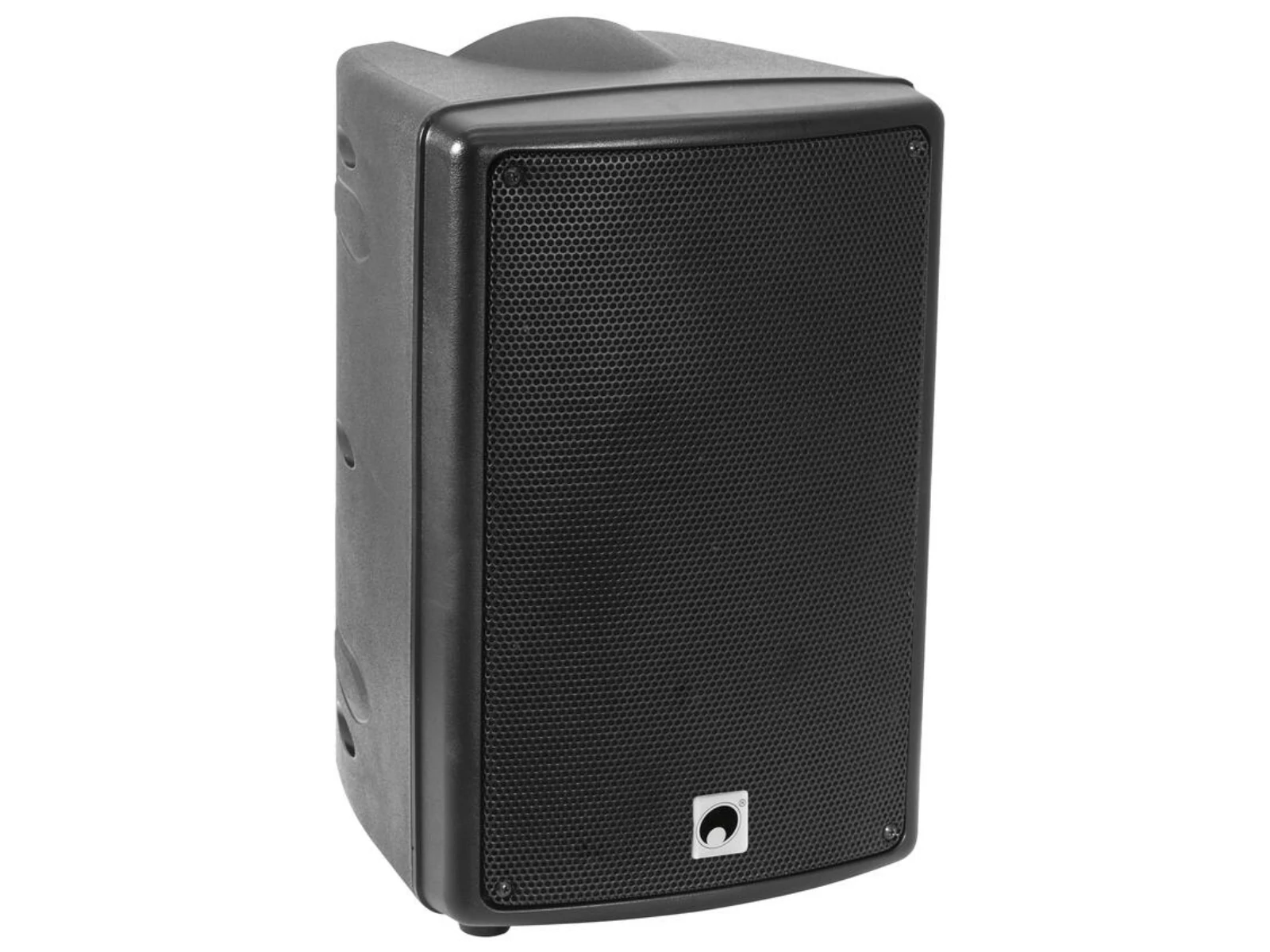

Mobile 8" PA system with battery operation, audio player, Bluetooth and wireless microphones (optional)
Compact, lightweight and useful: The WAMS-08BT MK2 is an extremely lightweight yet powerful PA system with rechargeable battery for mobile use. Whether for street musicians, at lectures, family get-togethers or in the aerobics group: Thanks to the versatile connection options you are flexible on the road.The great-sounding all-in-one system with power-efficient class D amplifier and 40 watts output power neither requires power nor audio cables. Enjoy music wirelessly from your smartphone or any other Bluetooth device via the integrated Bluetooth audio receiver. Get a wireless microphone system instantly by plugging in the optional USB dongle which comes with two wireless microphones. Thanks to the 863-865 MHz harmonized frequency band, this system does not require a license.The 2-way bass reflex system with 20 cm (8") woofer provides powerful sound despite the small size. Equipped with a 3-channel power mixer, the WAMS-08BT MK2 also features an MP3 player with SD card slot, USB port and IR remote control. A stereo input channel for line sources (e.g. CD player or notebook) and two mono input channels for instruments or cabled microphones provide additional flexibility. The 2-band EQ lets you control bass and treble. The powerful 11 V battery allows for continuous playback at full volume for up to 4 hours. By retrofitting an additional battery, the operation time can even be doubled. The WAMS-08BT MK2 is easy to carry thanks to its handle and weighs only 7 kg. It is prepared for tripod mounting with a flange.
- Portable all-in-one PA system with 40 watts output power
- 3-channel power mixer
- 2-way bass-reflex system
- UWM-2HH USB dongle with 2 wireless microphones available as accessory
- USB port can also be used for charging mobile devices
- 1 additional battery can be retrofitted for up to 8 hours operating time
- 2 mono input channels mic/hi-Z instrument with adjustable echo effect
- 1 stereo input channel for line signal sources e.g. CD players and notebooks
- Common 2-band EQ for highs and lows
- For application areas such as: Theater; mobile use; wedding/gala/events; product presentations and lectures
- Black metal grille
- Recessed carrying handle
- Application possibility: Standing; on stand
- Battery pack tool-free replacement
- Integrated automatic charging of the battery and status indicator
- The device is cooled by passive convection cooling
battery pack
- Battery operation up to 4h depending on program used
- Cordless, flexible and versatile
audio player
- Control via IR remote control; Bluetooth
- 2.4 GHz license-free worldwide
- Bluetooth: operating range up to 10m
remote control
- Operating range up to 10m
Package contents
- 1 x compact cabinet speaker, 1 x power cord, 1 x battery pack, 1 x remote control, 1 x battery, 1 x user manual, 1 x declaration of conformity
Manuals
ManualsParaméterek
| Power supply | 100-240 V AC, 50/60 Hz | |
| Or | ||
| 12 V DC | ||
| Power consumption | 65 W | |
| IP classification | IP20 | |
| Protection class | Protection class I | |
| Output power | 40 W RMS | |
| Power connection | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) | |
| Battery/battery pack | ||
| Frequency range | 50 - 18000 Hz | |
| THD | <0,1 % at 1 kHz | |
| Sensitivity | 90 dB (1W/1m) | |
| Max. SPL | 106 dB | |
| Cooling | Passive convection cooling | |
| Housing color | Black | |
| Attachment system | Flange:Ø 35mm | |
| Control elements | Echo effect control, audio player | |
| Status LED | Power, peak, microphone, charge status indicator, pairing | |
| Connections | Input:Mic/Hi.Z. via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) | |
| Input | line via 1 x stereo RCA | |
| Input | stereo via 1 x 3.5 mm jack (stereo) mounting version | |
| Input | 1 x USB A (F) mounting version | |
| Channels | Microphon chanal:2 x mono with Mic-Hi.Z. switch via Combination socket (XLR/jack), channel control via rotary dial | |
| Input chanel | 1 x stereo via RCA or jack plug or player, channel control via rotary dial | |
| Input chanel | 2 x mono via radio, channel control via rotary dial | |
| Master output | mono, channel control via rotary dial, 2-band tone control EQ | |
| Speaker | 1 x woofer 8" | |
| Basket material | steel | |
| Conematerial | cardboard/paper | |
| 1 x tweeter | ||
| USB port | Type A | |
| Type of speaker | Compact cabinet speaker; wireless PA system | |
| Recessed carrying handle | 1 pc/pcs | |
| Material | ABS Acrylonitrile butadiene styrene | |
| Color | Black | |
| Dimensions | Width:27 cm | |
| Depth | 29 cm | |
| Height | 42 cm | |
| Weight | 7,75 kg | |
| Battery pack | ||

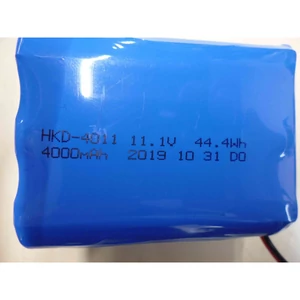

| Battery pack type | 1 x lithium ion 11,1 V, 4000 mAh, 44,4 Wh | |
| Battery pack | Battery operation up to 4h depending on program used | |
| Recharging time 4h | ||
| Audio player | ||
| Control | IR remote control; Bluetooth | |
| Bluetooth device name | WAMS-08BT MK2 | |
| Audio player | USB + SD + Bluetooth | |
| Range | Bluetooth:range up to 10m | |
| Frequency band | 2.4 GHz | |
| Music format | MP3, WMA; WAV | |
| Available storage media | USB devices/SD cards max. 32GB (FAT 32) | |
| Remote control | ||
| Battery | 1 x button cell 3.0 V CR2025 lithium manganese built-in | |
| Range | Range up to 10m | |
