Leírás

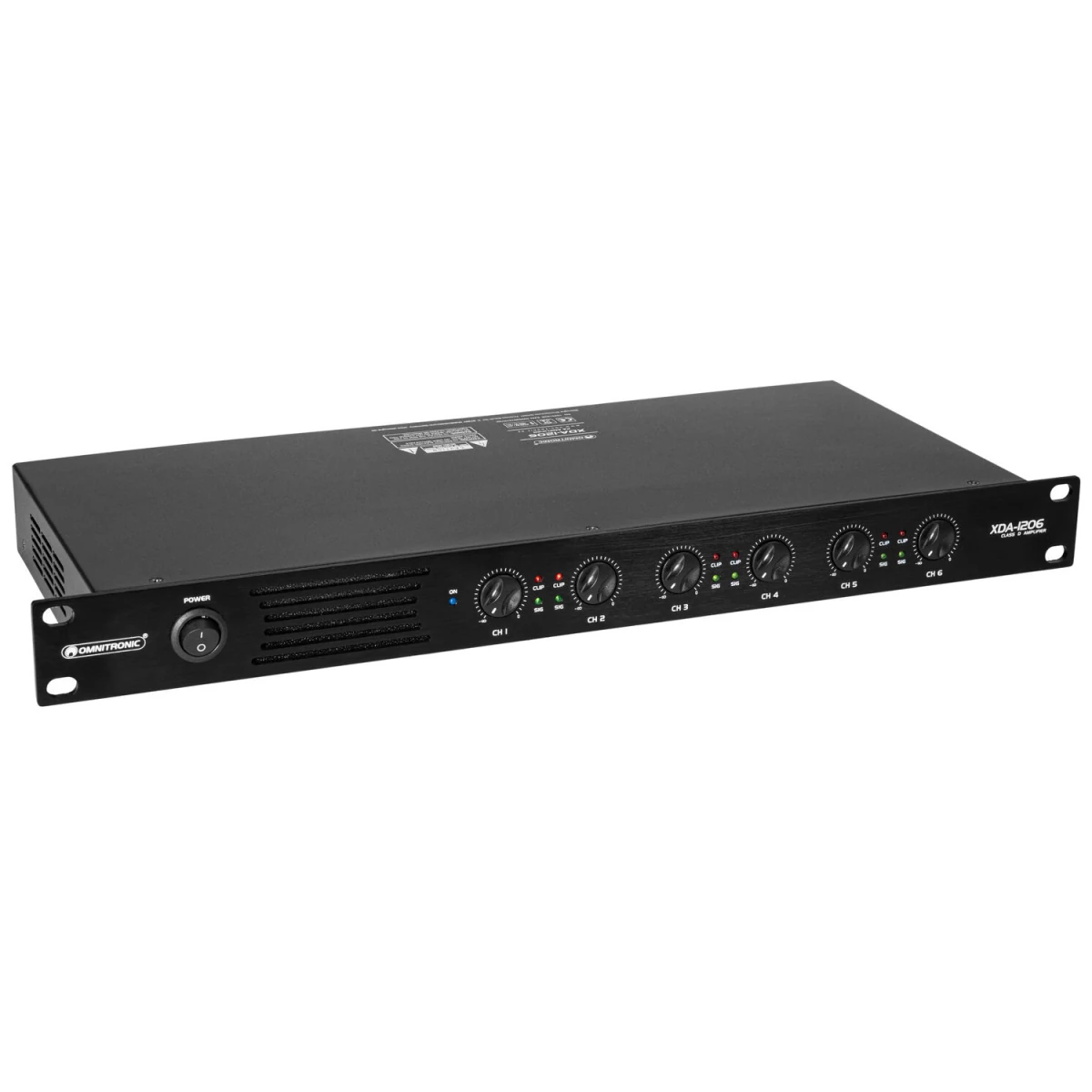

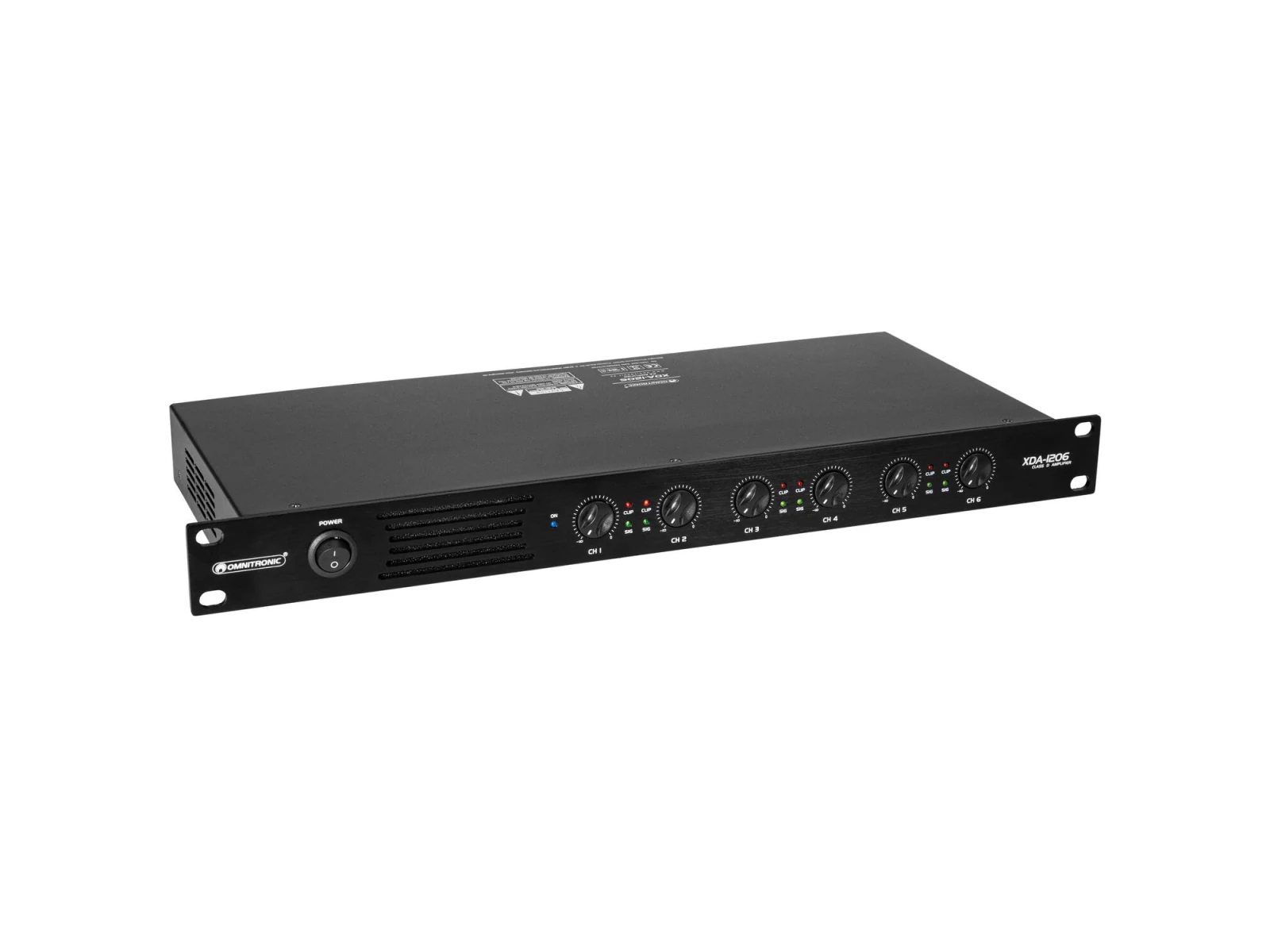

Class D multi-channel PA amplifier with SMPS, 6 x 200 W RMS (4 ohms), 6 x 150 W RMS (8 ohms)
- Extremely low weight and height due to integrated switch mode power supply
- Level control per channel
- (19") 48.3 cm rack installation 1 U
- For application areas such as: Clubs/dancing school; Installation; mobile use; mobile djs / entertainer; restaurants, bars and hotels; Rental; sports centres/gyms
Package contents
- 1 x amplifier, 1 x user manual, 1 x power cord, 6 x screw plug-in terminal, 4 x foot
Manuals
ManualsParaméterek
| Power supply | 230 V AC, 50 Hz |
| Power consumption | 1440 W |
| Protection class | Protection class I |
| Output power | 6 x 200 W RMS (4 ohms); 6 x 150 W RMS (8 ohms) |
| Power connection | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Device fuse | 5 x 20 mm, T 8 A Fuse replaceable |
| Frequency range | 20 - 20000 Hz |
| S/N ratio | >100 dB |
| THD | <0,05 % at 1 kHz |
| Impedance | Input:20 kOhm , bal. |
| Input | 10 kOhm , unbal. |
| Housing color | Black matte |
| Circuitry | Class D |
| Control elements | Power switch, level control per channel |
| Controls | Softstart; overheat; overload; short-circuit; DC voltage |
| Status LED | Power, signal, clip |
| Connections | Input:line via 6 x 3-pin XLR |
| Input | 6 x screw plug-in terminal |
| Link | line via 6 x screw plug-in terminal |
| Output | speaker via 6 x screw plug-in terminal |
| Housing design | (19") 48.3 cm rack installation 1 U |
| Dimensions | Width:48,3 cm |
| Depth | 20,5 cm |
| Height | 4,4 cm |
| Weight | 3,75 kg |
