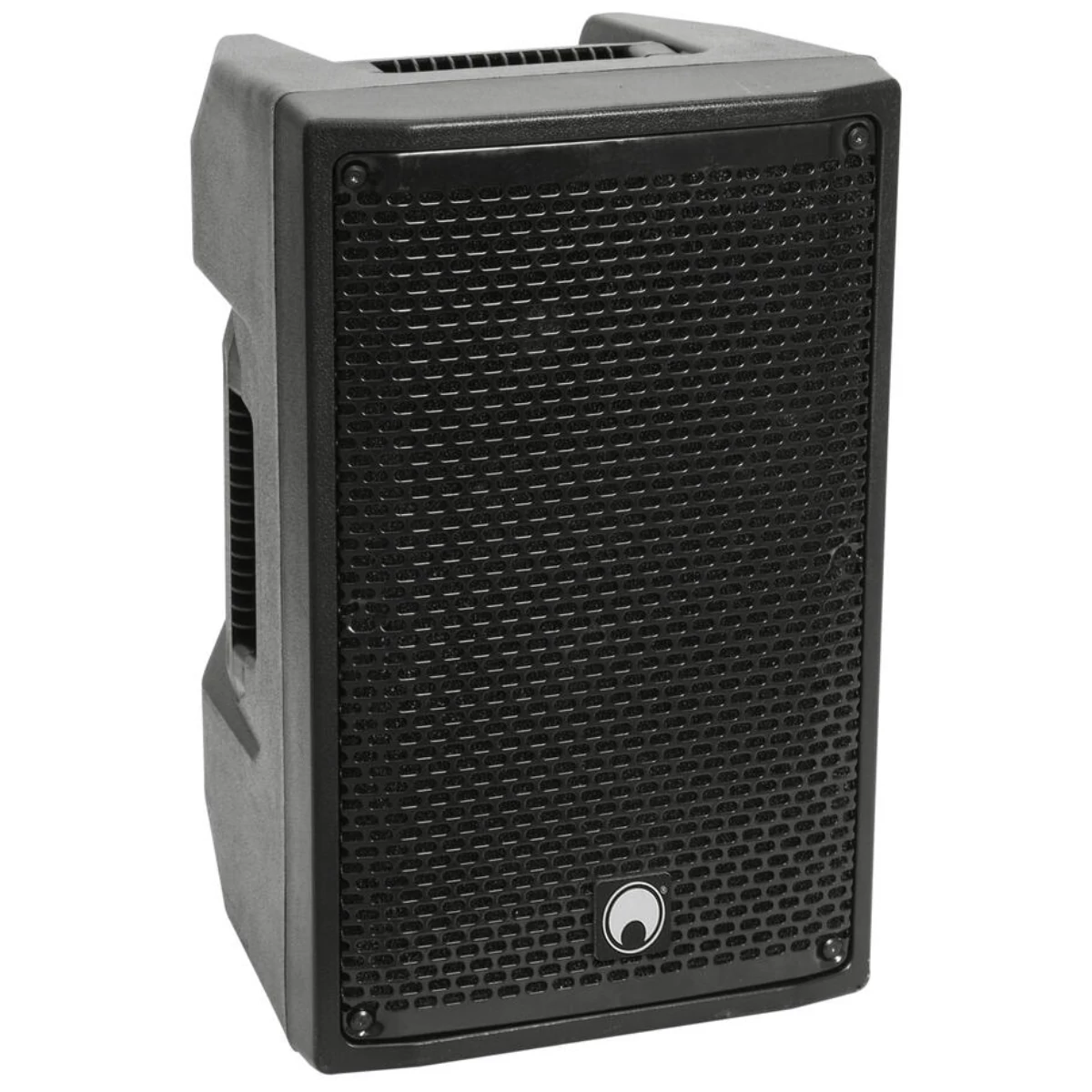

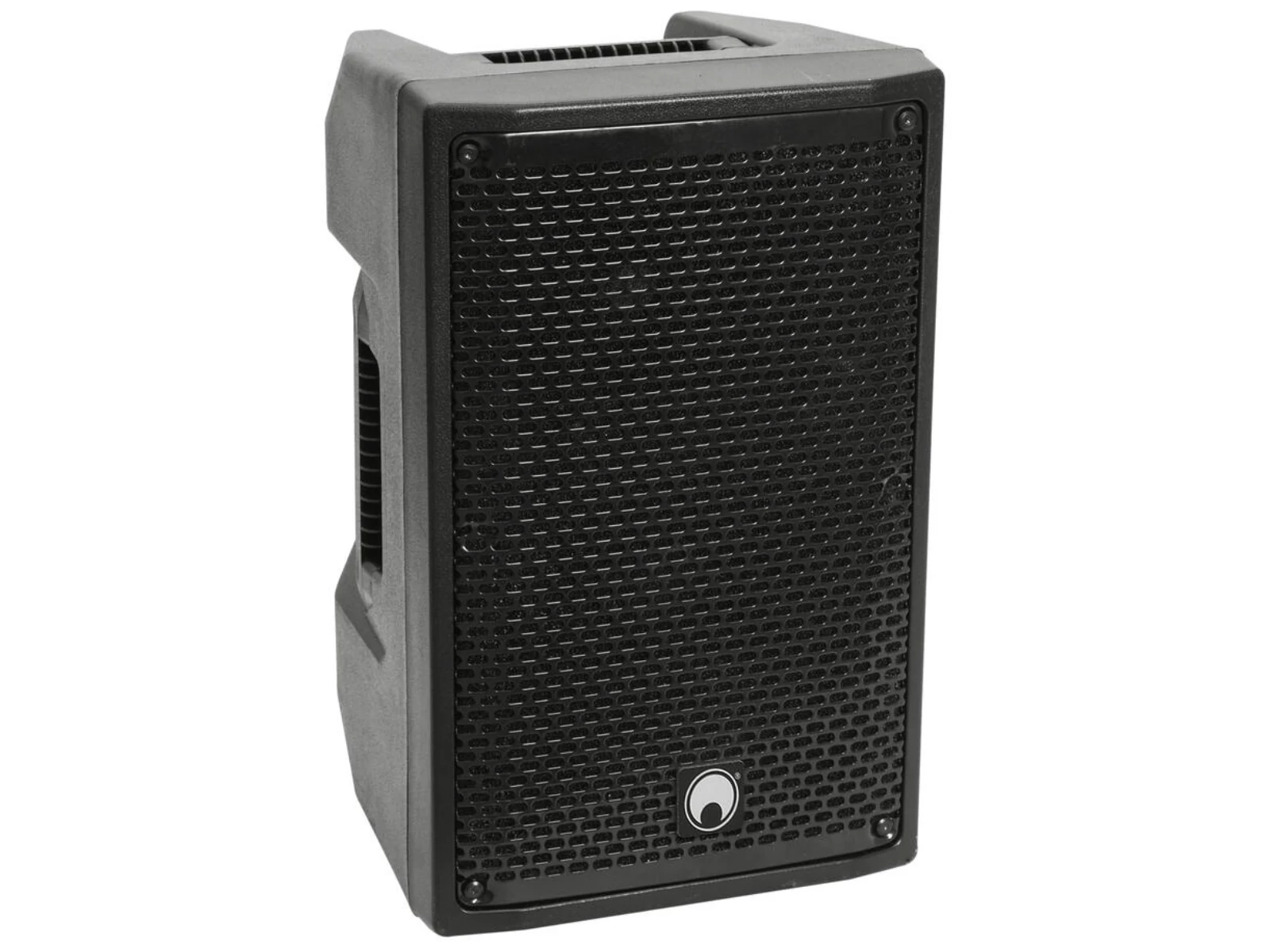

Active speaker with 8" woofer, 1" driver, 35 W RMS HF, 70 W RMS LF
The speaker systems of the XKB series are high-performance active speaker systems in light-weight and rugged plastic cabinets. They can be flexibly used for permanent installations and professional live applications. The 2-way speaker systems are designed as full-range bass-reflex systems with separate power amplifiers for the high-frequency range and the low-frequency range featuring inputs for microphones and line sources and parallel outputs for coupling with other active speakers. The DSP (digital signal processor) features convenient application presets for quick sound contouring (models XKB-212A and XKB-215). The built-in Bluetooth player allows for streaming music wirelessly from smartphones or tablets via Bluetooth. The speakers systems are protected through limiters and extensive protective circuits. The enclosure offers multiple setup options (use as a floor monitor, wall or stand mounting).
- Class D biamp amplifier (LF 70 W, HF 35 W)
- 2-way bass-reflex enclosure with 20 cm woofer and 2.5 cm driver
- 1 mic/line combo input (XLR/jack) with level control
- 1 line input (RCA) with level control
- Master control with 2-band EQ
- Control via Bluetooth
- Black metal grille with acoustic foam
- 3 Rugged carrying handles
- Application possibility: Standing; monitoring; on stand
- For application areas such as: Mobile use; Rental; sports centres/gyms; mobile djs / entertainer
Package contents
- 1 x compact cabinet speaker, 1 x user manual, 1 x power cord, 1 x declaration of conformity
Manuals
ManualsParaméterek
Power supply | 100-240 V AC, 50/60 Hz |
Power consumption | 300 W |
Protection class | Protection class I |
Power connection | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
Power | Program:140W |
Rated | 35W RMS HF |
Rated | 70W RMS LF |
Frequency range | 65 - 20000 Hz |
Sensitivity | 94 dB |
Control | Bluetooth |
Bluetooth device name | Omnitronic XKB |
Attachment system | Flange:Ø 35mm |
Circuitry | Class D Biamp |
Control elements | Level control per channel, tone control, power switch, bypass/terminating resistor switch |
Controls | Limiter |
Status LED | Power, clip |
Connections | Input:Microphone via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) |
Input | line via 1 x stereo RCA |
Output | line via 1 x 3-pin XLR |
Input channels | 1 x mono with Mic-line switch via Combination socket (XLR/jack), channel control via Rotary dial |
1 x stereo via RCA or Bluetooth, channel control via Rotary dial | |
Equalizer | Master:1 x 2-band tone control |
Speaker | 1 x woofer 8" |
Basket material | Steel |
Conematerial | Cardboard/paper |
Voice coil lows 1,35" with ferrit magnet | |
Voice coil compression tweeter highs 1" | |
Type of speaker | Compact cabinet speaker |
Type of construction | Vented |
Carrying handle | 3 pc/pcs |
Material | Plastic |
Color | Black |
Dimensions | Width:26 cm |
Depth | 27 cm |
Height | 43 cm |
Weight | 6,90 kg |
