Leírás

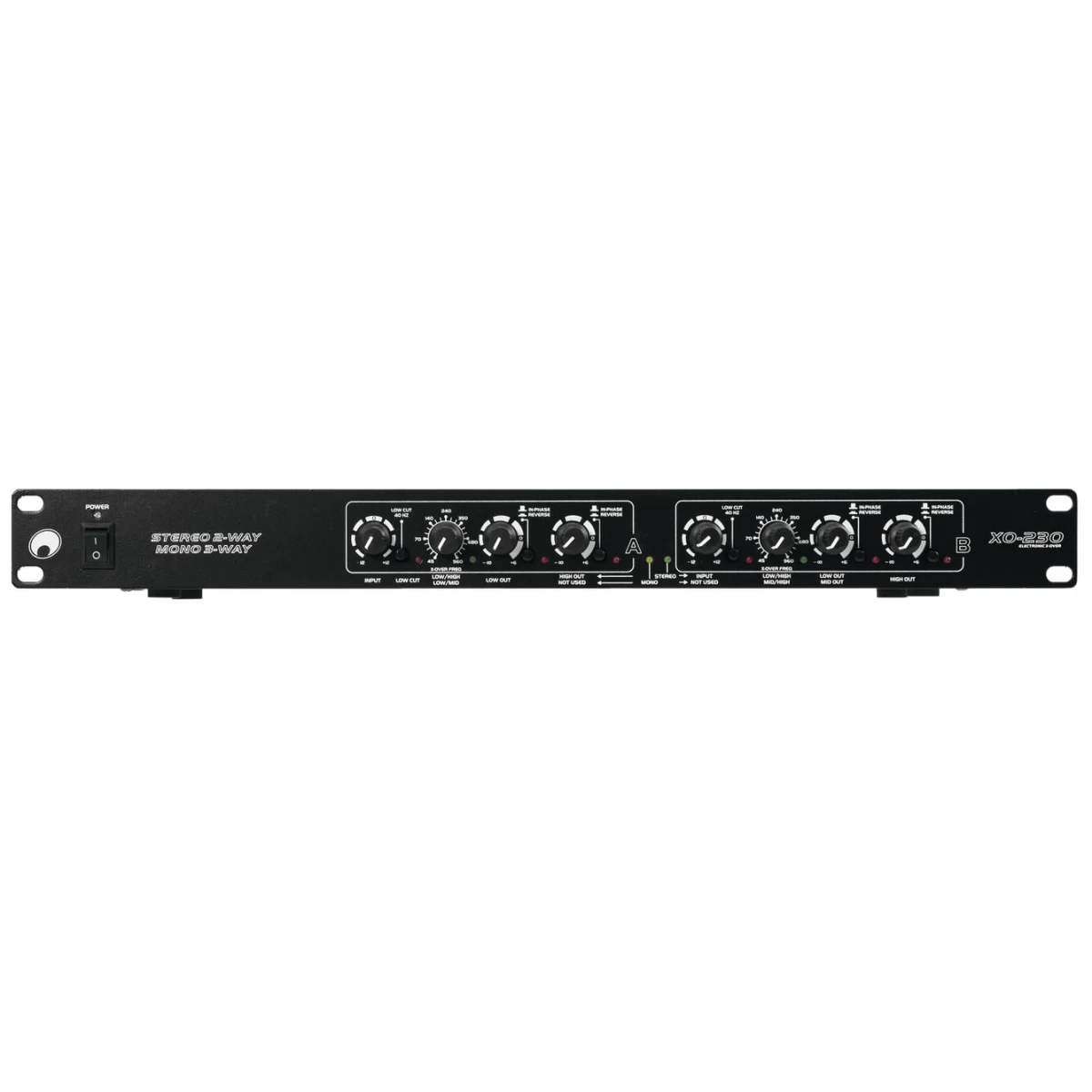

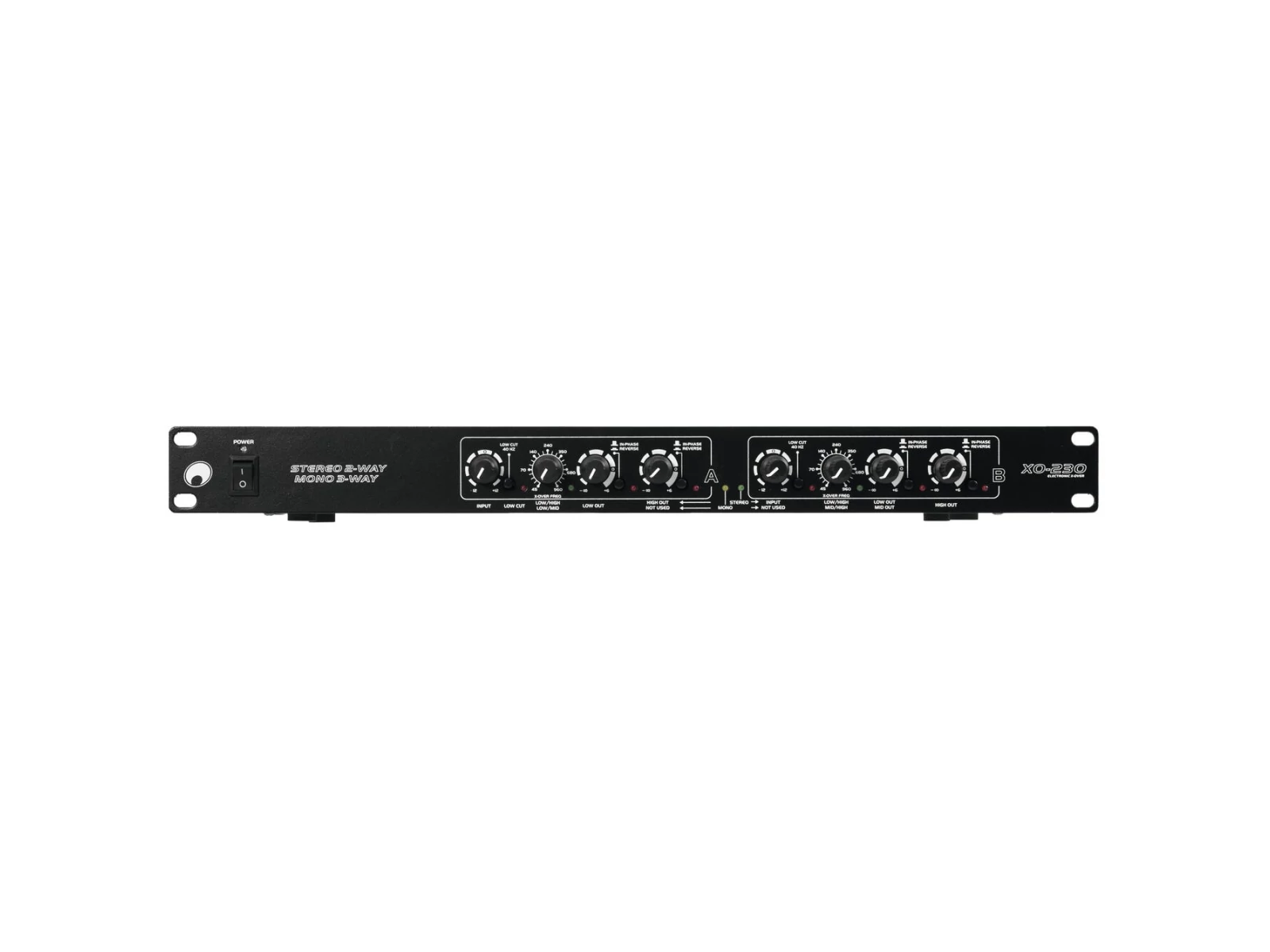

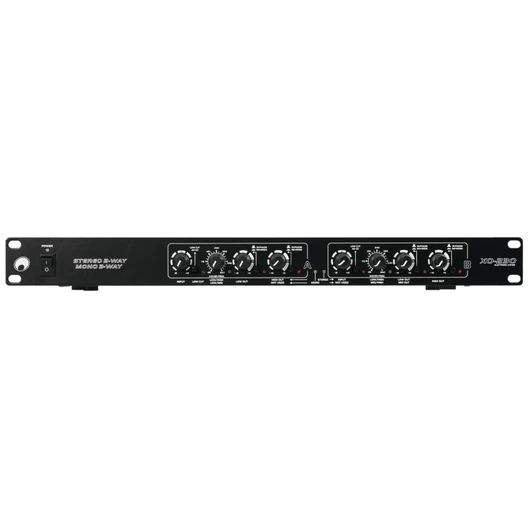

Active crossover, stereo 2-way and mono 3-way operation
- 2-way or 3-way stereo operation
- Variable 24 dB per octave Linkwitz-Riley filters
- Crossover frequencies continuously adjustable between 45 Hz and 9.6 kHz
- Low frequency summed (subwoofer) output
- Individual output level controls for each frequency range
- Butterworth low-cut filter (12 dB/octave 40 Hz) to protect subwoofers
- X10 range switch on both channels
- Phase reverse switch on all outputs
- LED indicators for all important functions for easy status identification
- Balanced XLR inputs and outputs
- (19") 48.3 cm rack installation 1 U
- For application areas such as: Installation; Clubs/dancing school; Stage; homerecording and studios; Band/rehearsal room
Package contents
- 1 x controller, 1 x user manual, 1 x power cord
Manuals
ManualsParaméterek
| Power supply | 230 V AC, 50 Hz |
| Power consumption | 8 W |
| Protection class | Protection class I |
| Power connection | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| S/N ratio | >100 dB |
| THD | <0,05 % at 1 kHz |
| Impedance | Input:25 kOhm , unbal. |
| Input | 50 kOhm , bal. |
| Output | 100 Ohm , unbal. |
| Output | 200 Ohm , bal. |
| Gain | Input:± 12 dB |
| Output | - ∞ to + 6 dB |
| Filter | Low cut:40 Hz 12db/oct Butterworth |
| Phase invert | Per output, switchable |
| Crosstalk | >80 dB |
| Control elements | Mode switch (2-way,stereo/3-way,mono), Phase reversal switch, multiplier switch |
| Status LED | Power, low cut, mono, stereo, Phase reversal LED; multiplier LED |
| Connections | Input:line via 2 x 3-pin XLR |
| Output | line via 4 x 3-pin XLR |
| Crossover frequency | 45-9600 Hz, 24db/oct , Linkwitz-Riley |
| Max. level | Input:+22 dBu |
| Output | +21 dBu |
| Color | Black |
| Housing design | (19") 48.3 cm rack installation 1 U |
| Dimensions | Width:48,3 cm |
| Depth | 15,2 cm |
| Height | 4,45 cm |
| Weight | 1,87 kg |
