Leírás

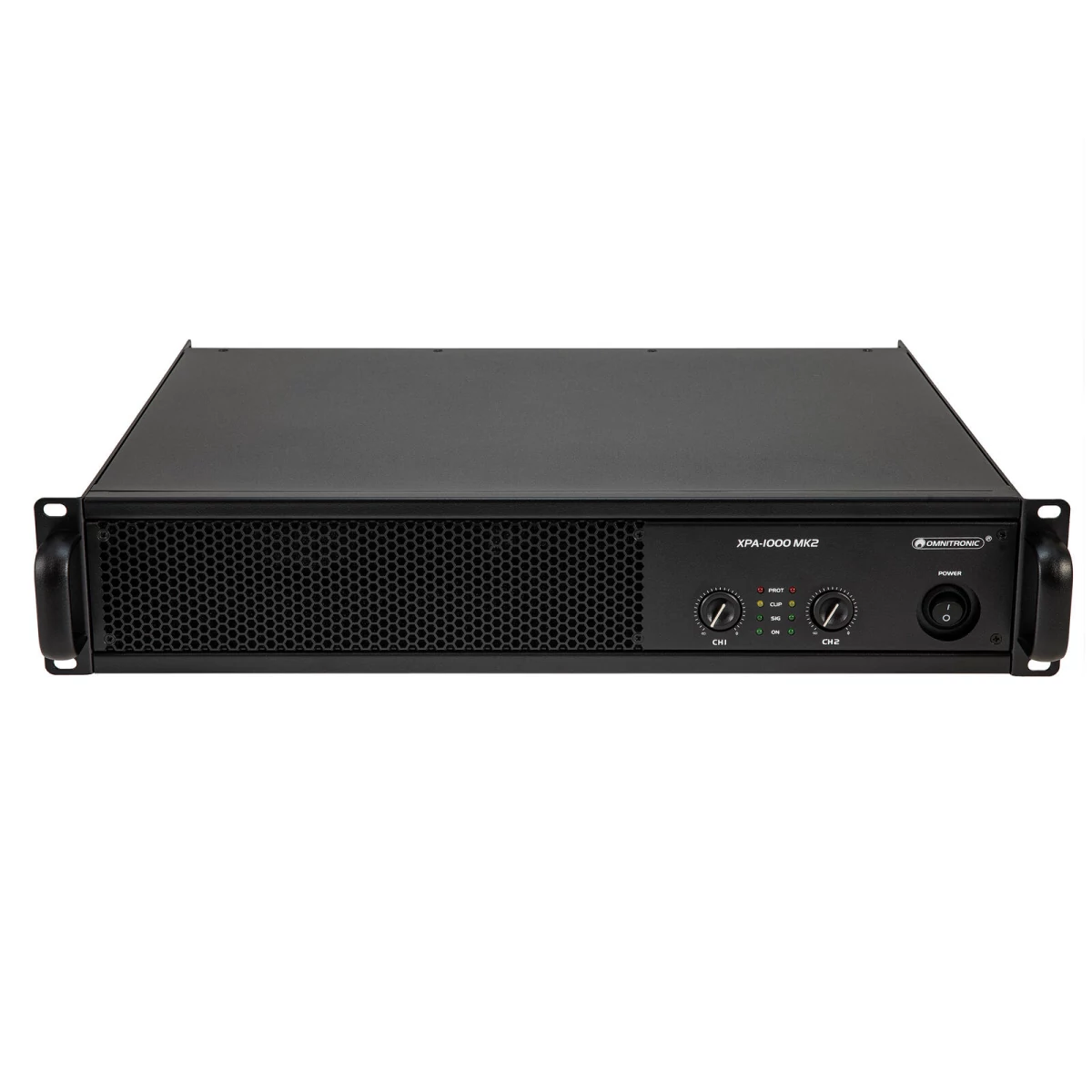

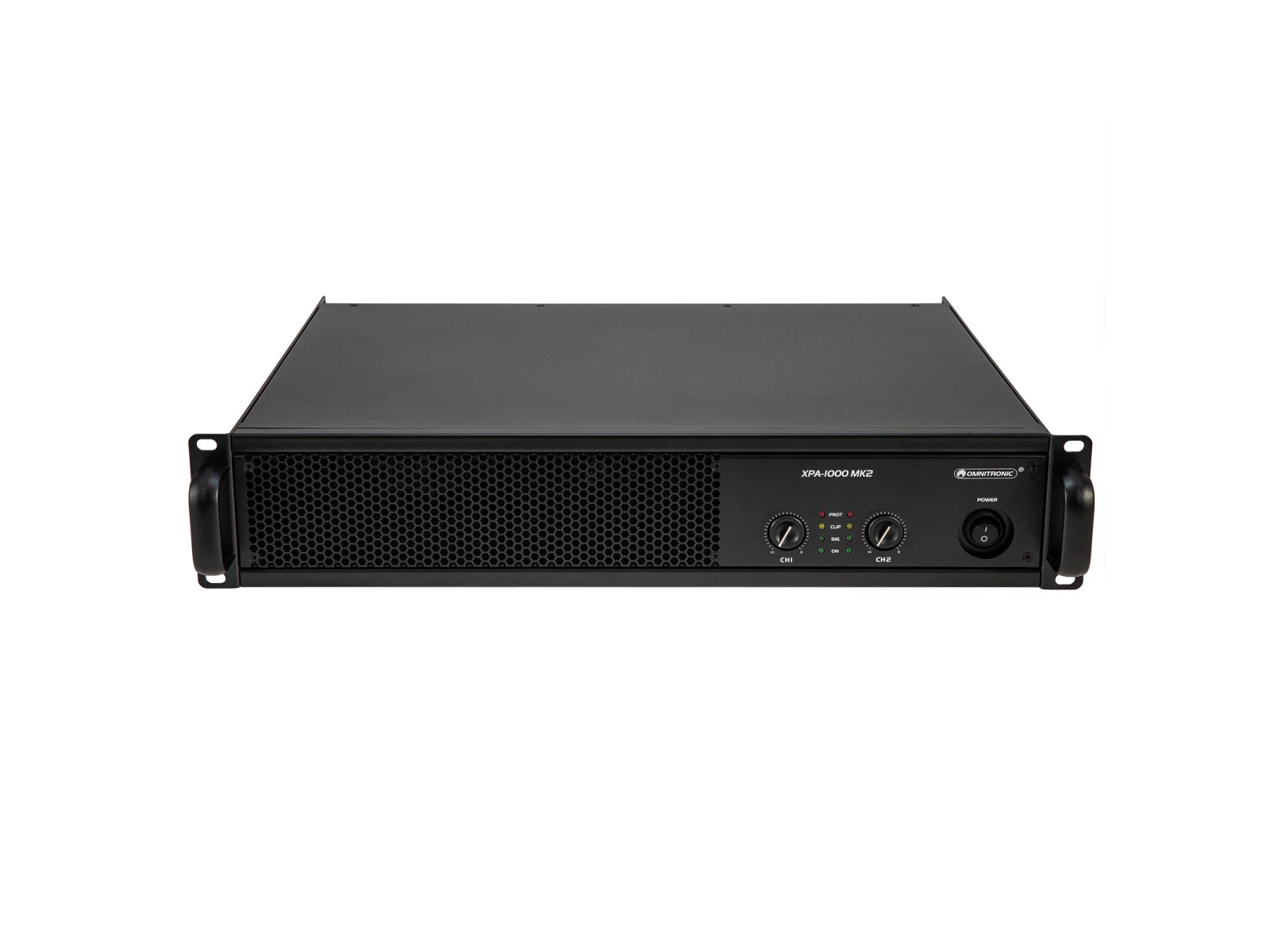

Class AB PA amplifier with limiter, 2 x 500 W RMS (4 ohms), 2 x 300 W RMS (8 ohms)
- 2 level controls
- Signal inputs via XLR or RCA connectors
- Speaker outputs via lockable speaker jacks and pairs of screw terminals
- Class AB circuitry
- Highly efficient air flow from front to rear
- The device is cooled by temperature-controlled fan
- (19") 48.3 cm rack installation possible 2 U
Package contents
- 1 x amplifier, 1 x power cord, 1 x user manual, 4 x foot
Manuals
ManualsParaméterek
| Power supply | 230 V AC, 50 Hz |
| Power consumption | 710 W 1/8 power |
| IP classification | IP20 |
| Protection class | Protection class I |
| Output power | 2 x 500 W RMS (4 ohms) |
| 2 x 300 W RMS (8 ohms) | |
| 1000 W RMS bridged (8 ohms) | |
| Power connection | Mains input via IEC connector (M) mounting version power supply cord with safety plug included |
| Device fuse | 5 x 20 mm, F 8 A fuse serviceable |
| Frequency range | 20 - 20000 Hz |
| S/N ratio | >95 dB |
| THD | <0,05 % at 1 kHz |
| Cooling | 2 x temperature-controlled fan , air flow from front to rear |
| Impedance | Input:10 kOhm , unbal. |
| Input | 20 kOhm , bal. |
| Housing color | Black |
| Circuitry | Class AB |
| Slew rate | >20 V/µs |
| Damping factor | >200 |
| Control elements | Power switch, level control per channel, mode switch (stereo/parallel/bridged) |
| Controls | Softstart; DC voltage; VHF; short-circuit; limiter; overheat |
| Status LED | Power, signal, clip, protect |
| Connections | Input:line via 2 x 3-pin XLR (F) mounting version |
| Input | line via stereo RCA |
| Output | speaker via 2 x speaker built-in socket (F) |
| Output | speaker via screw terminal |
| Input sensitivity | 1 V |
| Housing design | (19") 48.3 cm rack installation possible 2 U |
| Mounting depth | 33,2 cm |
| Dimensions | Width:48,3 cm |
| Depth | 36,8 cm |
| Height | 8,8 cm |
| Weight | 10,40 kg |
