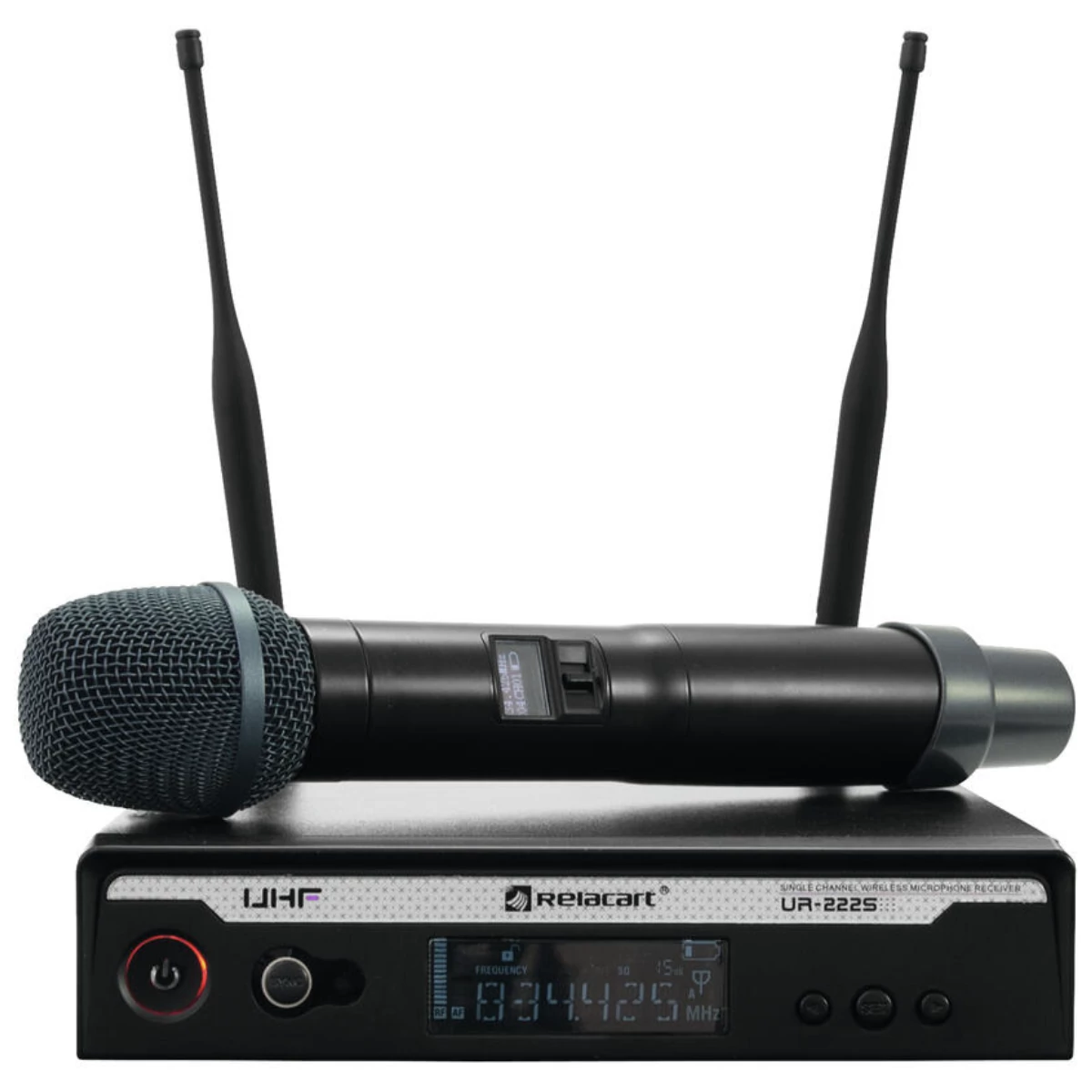

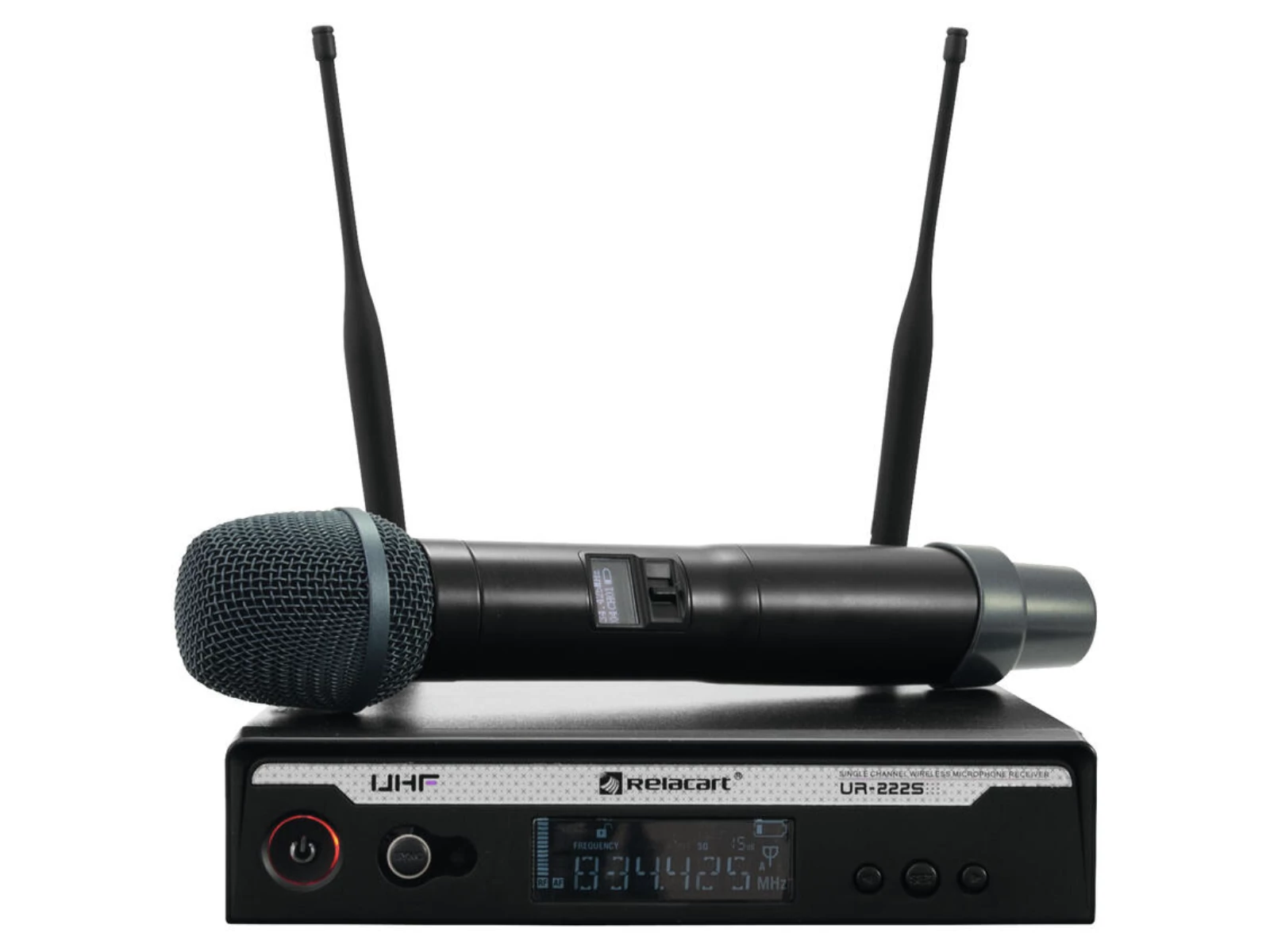

RELACART UR-222S 1-Channel UHF System 823-832 + 863-865 MHz

Ha részletfizetéssel vásárolná meg a terméket, helyezze a kosárba, majd a fizetési módnál jelölje be Cetelem Online Áruhitelt.

Leírás

Diversity wireless microphone system, 823-832 MHz + 863-865 MHz
The UR-222S is an affordable and reliable UHF system for everyday use. The device works with 90 channel presets in 10 groups. 9 channels can be operated in parallel. True diversity receiver technology, pilot tone and adjustable noise squelch guarantee reliable transmission. Setup is quick and easy using auto-scan and infrared sync.

Charge status indicator

Package contents

1 x receiver, 2 x antenna, 1 x external mains adapter, 1 x microphone, 1 x jack cable, 1 x mounting bracket, 1 x user manual, 1 x declaration of conformity, 1 x bag

RELACART UR-222S 1-Channel UHF Receiver 823-832 + 863-865 MHz

Multifrequency wireless receiver with high-quality diversity reception

10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
Pilot frequency squelch technology delete wireless RF interference
Automatic frequency scan (AFS) finds interference-free channels
Easy and error-free synchronization between receiver and transmitter via infrared signal
2 detachable BNC antennas allow for use with the R-14D antenna divider
Up to 9 transmitters can be operated in parallel without interference
Multicolor LCD display
UHF 863 - 865 MHz License-free and approved in Europe
UHF 823 - 832 MHz License-free and approved in large parts of Europe
Operating range up to 80m
Desktop console housing
(19") 48.3 cm rack installation possible 1 U
Charge status indicator

Package contents

1 x receiver, 1 x external mains adapter, 2 x antenna, 1 x jack cable, 3 x mounting bracket, 8 x screw, 1 x user manual, 1 x declaration of conformity, 1 x bag

RELACART UH-222D Microphone 823-832 + 863-865 MHz

Hand-held microphone with PLL multifrequency transmitter

Dynamic hand-held microphone with UHF pilot tone technology (PLL)
Ergonomic aluminum alloy housing, applicable for touring
10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
Easy and error-free synchronization between receiver and transmitter via infrared signal
RF output power Hi/Low adjustable
Gain level Hi/Mid/Low adjustable
Capsule M-022
Directly compatible with Shure's SM58 capsule
Polar pattern: Super cardoid
Operating range up to 80m
UHF 863 - 865 MHz License-free and approved in Europe
UHF 823 - 832 MHz License-free and approved in large parts of Europe
OLED display
Charge status indicator

Package contents

1 x microphone, 1 x user manual, 1 x declaration of conformity

Manuals

Paraméterek

Type	Wireless set
Display	Charge status indicator , antenna A/B , RF signal level , AF audio level; frequency
Weight	2,24 kg
RELACART UR-222S 1-Channel UHF Receiver 823-832 + 863-865 MHz
Type	Receiver
Power supply	100-240 V AC, 50/60 Hz
12 V DC 1 A
Power consumption	3 W
Power connection	Mains input via Coaxial power connector (M) mounting version power supply cord with AC adapter (provided)
Number of channels	1
Frequency range	45 - 18000 Hz
S/N ratio	>105 dB
THD	<0,7 % at 1 kHz
Range	Range up to 80m
Frequency band	UHF 863 - 865 MHz; UHF 823 - 832 MHz
Diversity	Antenna diversity
Switching bandwidth	11 MHz
Frequency stability	± 0,005 %
Parallel mode	Max. 9 transmitter
Modulation	FM
Frequency selection	90 Switchable frequencies
In 10 groups with up to 10 preset frequencies each
Display type	Multicolor LCD display
Display	Charge status indicator , antenna A/B , RF signal level , AF audio level; frequency
Control elements	Groundlift selector, menu, navigation keys
Connections	Antenna via 2 x BNC (F) 8 V
Output	Microphone via 1 x 3-pin XLR (M) mounting version
Output	Microphone via 1 x 6.3 mm plug (unbal.)
Switch	On/off switch
Material	Metal
Color	Black
Housing design	Desktop console housing
(19") 48.3 cm rack installation possible 1 U
Dimensions	Width:20 cm
Depth	26 cm
Height	4,4 cm
Weight	1,95 kg
RELACART UH-222D Microphone 823-832 + 863-865 MHz
Type	Hand-held transmitter
Power supply	3 V DC
Capsule type	Dynamic
Polar pattern	Super cardoid
Battery	2 x Mignon (AA) (not included)
Frequency range	120 - 16000 Hz
Sensitivity	-53 dB
Max. SPL	145 dB
Range	Range up to 80m
Frequency band	UHF 863 - 865 MHz; UHF 823 - 832 MHz
Switching bandwidth	11 MHz
RF power output	10 mW
Modulation	FM
Frequency selection	90 Switchable frequencies
In 10 groups with up to 10 preset frequencies each
Display type	OLED display
Display	Charge status indicator , frequency , Chanal
Control elements	Gain-switch (high-mid-low), Transmitter power switch (high-low)
Switch	On/off/mute switch
Material	Aluminum
Dimensions	Length:26 cm
Diameter	Ø 5,4 cm
Weight	280 g
