Leírás

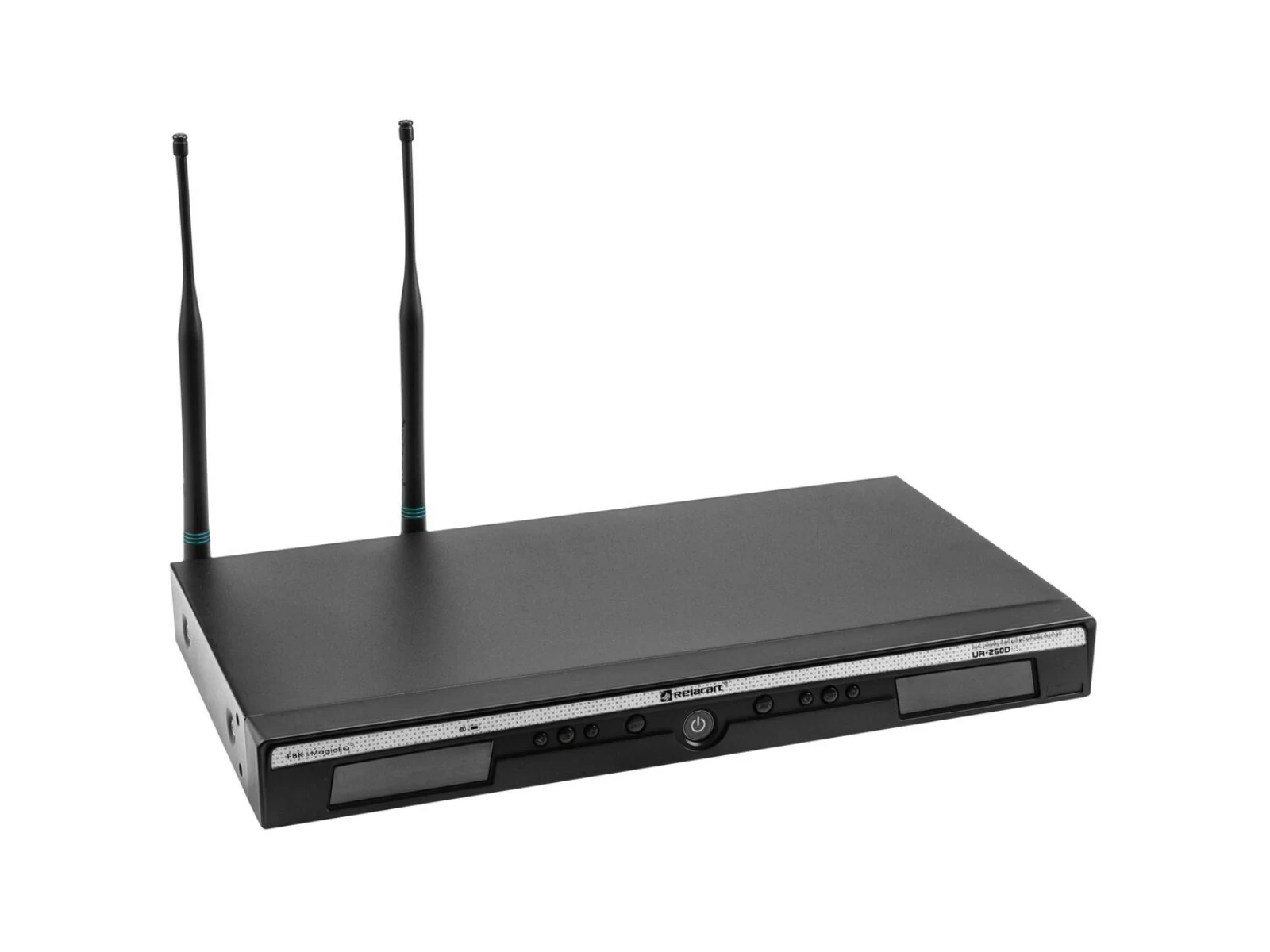

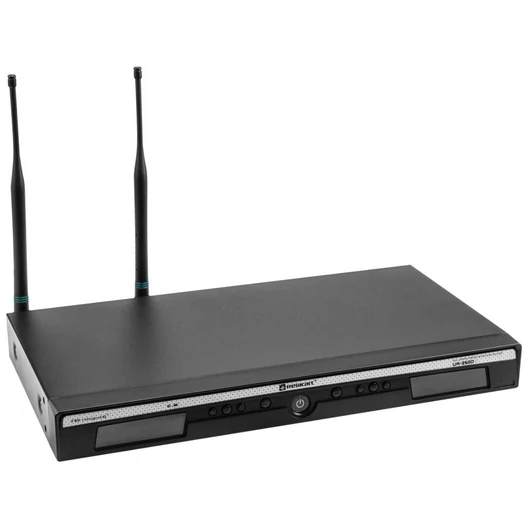

Diversity wireless receiver with DSP for microphone modeling and PC software
- 2-channel multifrequency wireless receiver with 24-bit processor for high-end audio quality
- Integrated MagicEQ enables amazing microphone modeling of hand-held microphones
- Choose from 7 presets based on popular microphone models (e835, beta58, e935, D5, SM57, N/D767a, SM58) and 3 user-definable presets
- Integrated Feedback Killer effectively eliminates feedback, providing maximum gain and increased clarity on every microphone
- DSP programming and management via Ethernet port and intuitively operated PC software
- High-quality antenna diversity reception
- Up to 12 transmitters can be operated in parallel without interference
- Pilot frequency squelch technology delete wireless RF interference
- Automatic frequency scan (AFS) finds interference-free channels
- Easy and error-free synchronization between receiver and transmitter via infrared signal
- Multiple units can be linked with network cables
- Lock function for prevents undesired changes to settings

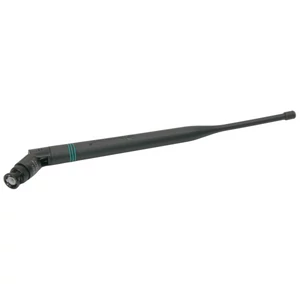

- 2 detachable BNC antennas allow for use with the R-14D antenna divider
- Rugged metal housing
- Digital signal processor 96kHz, 24 bit
- Operating range up to 80m
- Multicolor LCD display
- The device can be connected via RJ-45 (F) mounting version to the PC in connection with RELACART Magic EQ software
- Desktop console housing
- (19") 48.3 cm rack installation possible 1 U
Package contents
- 1 x receiver, 2 x antenna, 1 x external mains adapter, 1 x jack cable, 2 x mounting bracket, 6 x screw, 1 x user manual, 1 x declaration of conformity
Manuals
ManualsParaméterek
| Type | Receiver |
| Power supply | 100-240 V AC, 50/60 Hz |
| 12 V DC 1 A | |
| Power consumption | Max. 9 W |
| Power connection | Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided) |
| Number of channels | 2 |
| Frequency range | 45 - 18000 Hz |
| S/N ratio | >100 dB |
| THD | <0,5 % at 1 kHz |
| Network connection | Protocol:Ethernet TCP/IP via 1x RJ-45 (F) mounting version |
| DSP | Digital signal processor 96kHz, 24 bit |
| Range | Range up to 80m |
| Frequency band | UHF 522 - 554 MHz |
| Diversity | Antenna diversity |
| Switching bandwidth | 32 MHz |
| Frequency stability | ± 0,0005 % |
| Parallel mode | Max. 12 transmitter |
| Modulation | FM |
| Frequency selection | 151 switchable frequencies |
| In 10 groups with up to 18 preset frequencies each | |
| Display type | Multicolor LCD display |
| Control elements | Power switch, groundlift selector, menu, navigation keys |
| Connections | Antenna via 2 x BNC (F) 8 V |
| Output | microphone via 2 x 3-pin XLR (M) mounting version |
| Output | line via 1 x 6.3 mm plug (unbal.) |
| Material | Metal |
| Color | Black |
| PC connect | RELACART Magic EQ software via RJ-45 (F) mounting version |
| Housing design | Desktop console housing |
| (19") 48.3 cm rack installation possible 1 U | |
| Dimensions | Width:41 cm |
| Depth | 26 cm |
| Height | 4,3 cm |
| Weight | 2,40 kg |
