Leírás

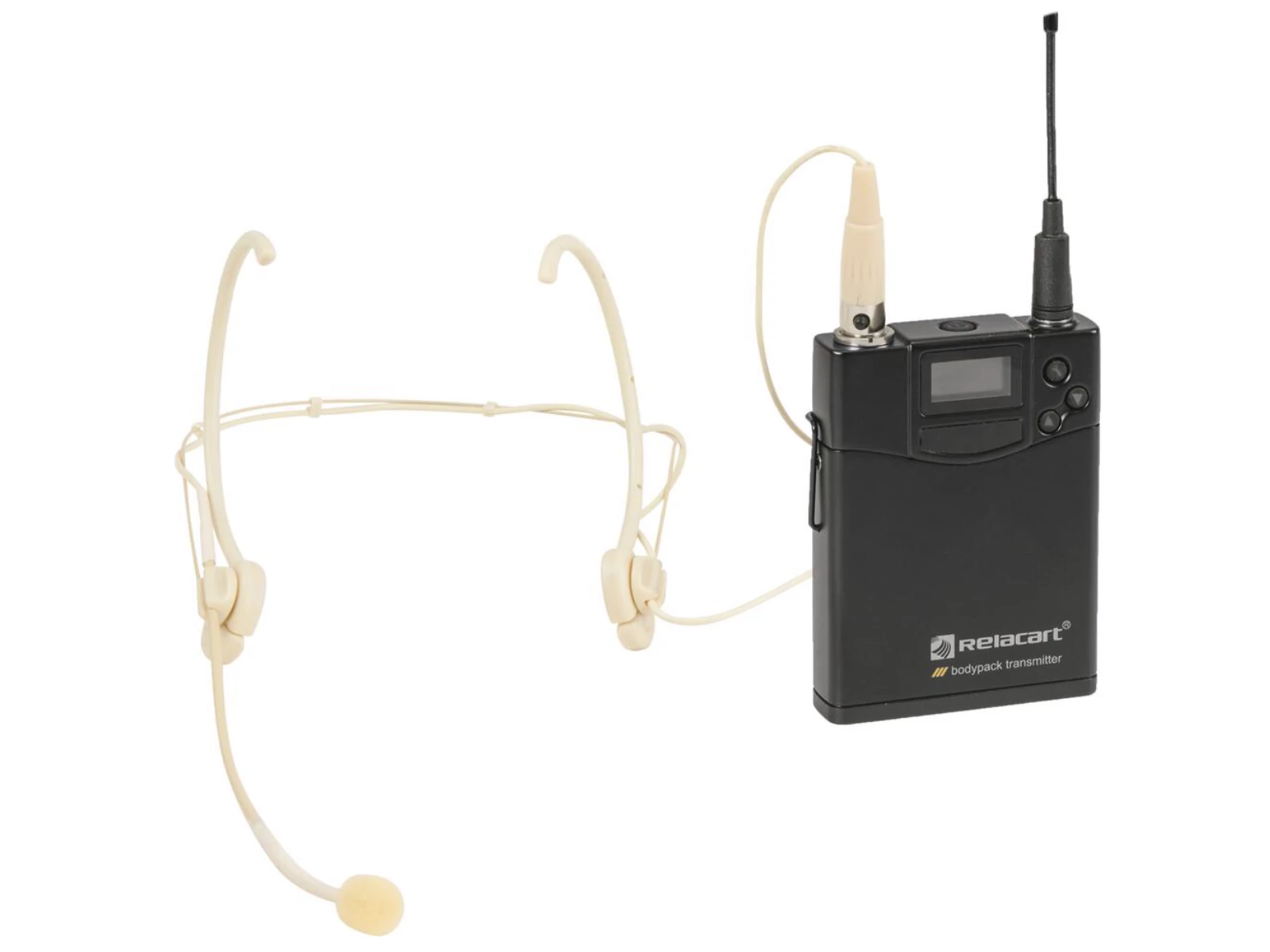

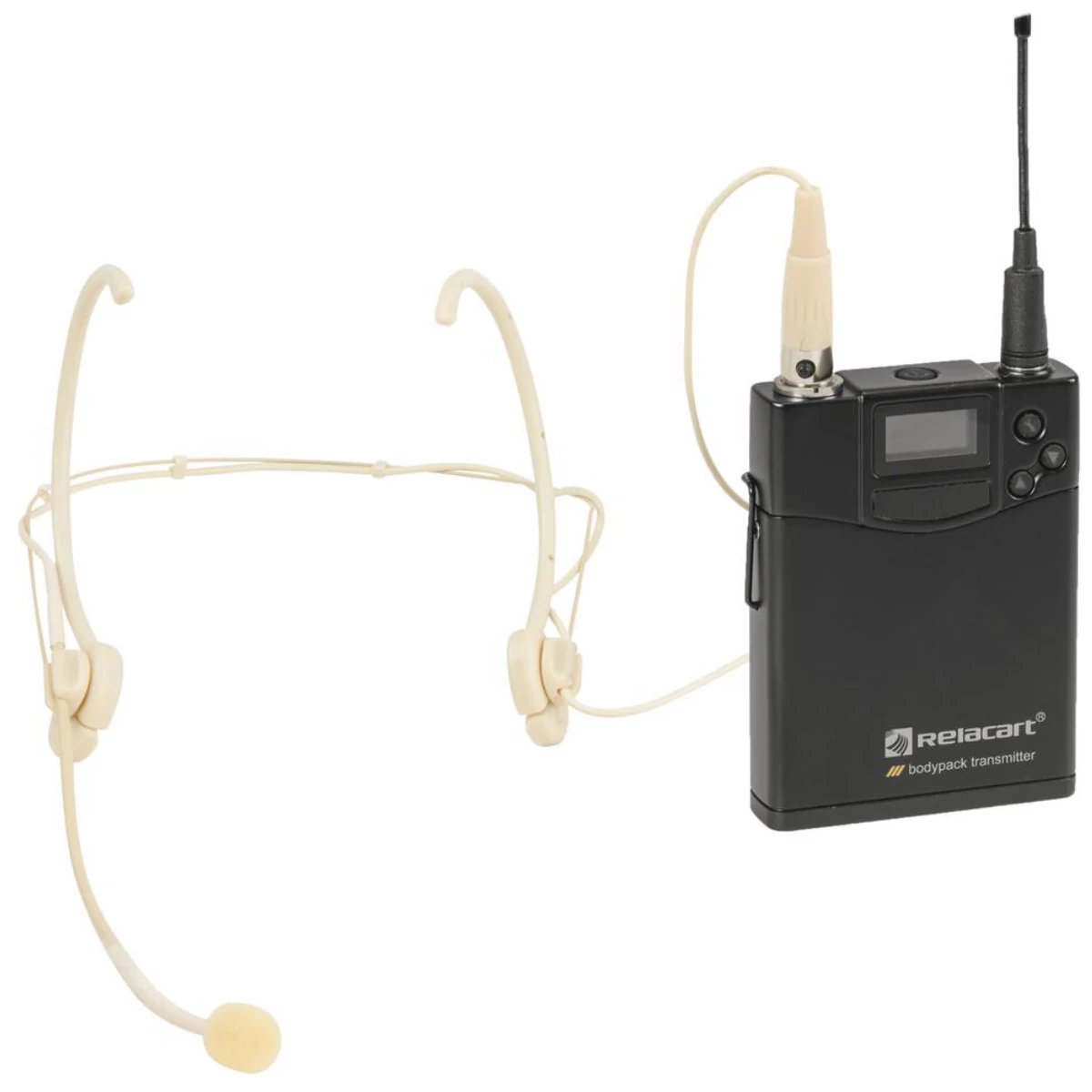

Bodypack transmitter with PLL multifrequency transmitter
- Durable aluminum alloy housing, applicable for touring
- Pilot frequency squelch technology delete wireless RF interference
- Easy and error-free synchronization between receiver and transmitter via infrared signal
- Adjustable input gain
- RF output power Hi/Low adjustable
- Lock function for prevents undesired changes to settings
- Up to 12 transmitters can be operated in parallel without interference
transmitter
- Operating range up to 80m
- OLED display
Microphone
- Polar pattern: Omnidirectional
- For further information about this product, please refer to the Data Sheet under "Downloads"
Package contents
- 1 x transmitter, 1 x microphone, 1 x windshield, 1 x user manual, 1 x declaration of conformity
Manuals
ManualsParaméterek
| Parallel mode | Max. 12 transmitter |
| Weight | 220 g |
| Transmitter | |
| Type | Bodypack with microphone |
| Power supply | 3 V DC |
| Power connection | Battery/battery pack |
| Battery | 2 x Mignon (AA) (not included) |
| Gain | 0 dB |
| -6 dB | |
| -12 dB | |
| Range | Range up to 80m |
| Frequency band | UHF 522 - 554 MHz |
| Switching bandwidth | 32 MHz |
| RF power output | 10 mW (LO); 30 mW (HI) |
| Modulation | FM |
| Frequency selection | 151 Switchable frequencies |
| In 10 groups with up to 18 preset frequencies each | |
| Display type | OLED display |
| Control elements | Transmitter power switch (high-low) |
| Connections | Output:Mini XLR (M) 4-pin mounting version |
| Switch | On/off/mute switch |
| Material | Aluminum |
| Color | Black |
| Dimensions | Width:6,6 cm |
| Depth | 2,3 cm |
| Height | 8,4 cm |
| Weight | 174 g |
| Microphone | |
| Type | Headset microphone |
| Power supply | 2-10 V DC |
| Cable length | 1,2 m |
| Capsule type | Condenser |
| Size | Ø 5 mm x 6 mm |
| Polar pattern | Omnidirectional |
| Frequency range | 50 - 18000 Hz |
| Sensitivity | -47 dB |
| Impedance | 1800 Ohm |
| Connector type | Mini XLR (F) 4-pin |
| Color | Skin-colored |
| Weight | 28 g |
