High-quality data cable

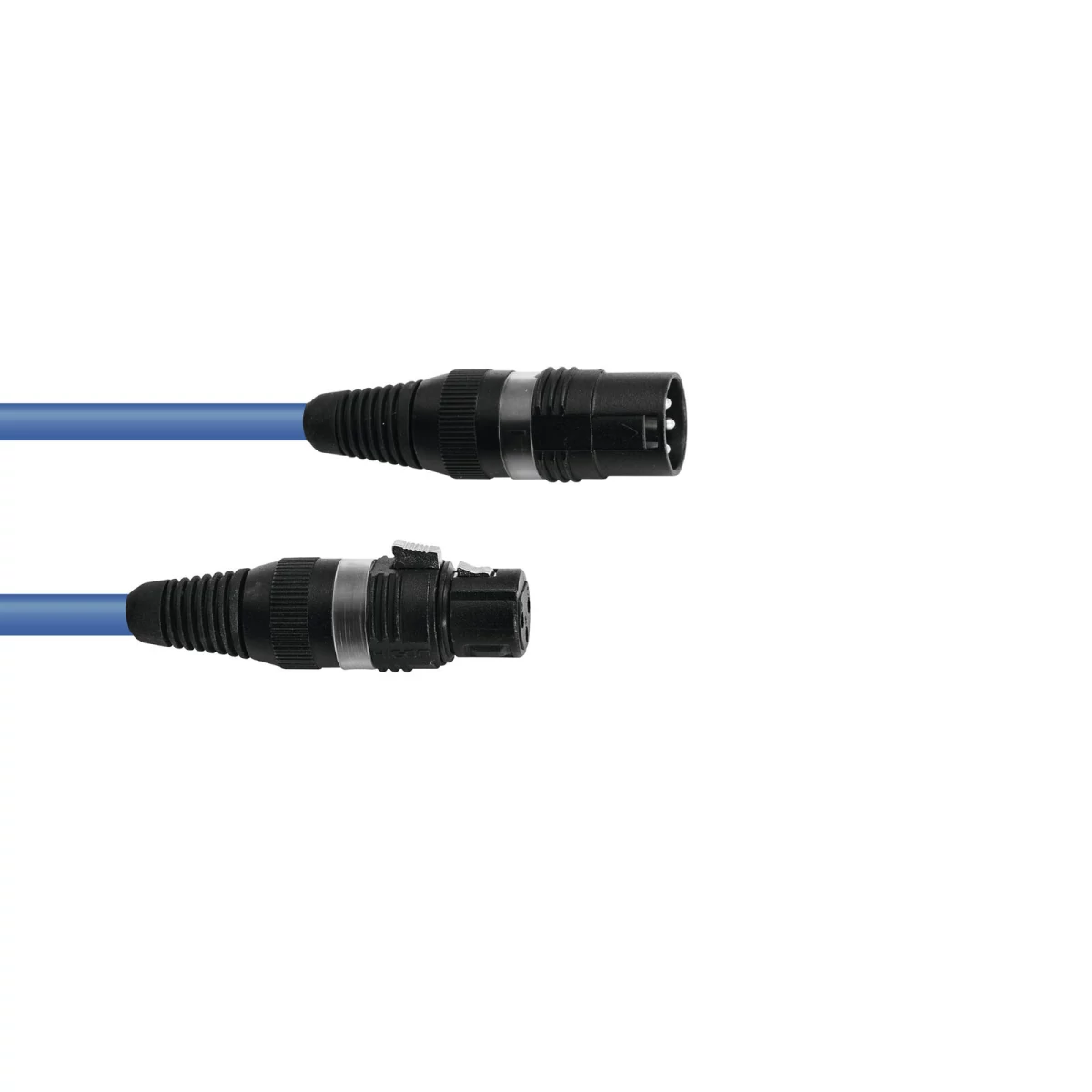

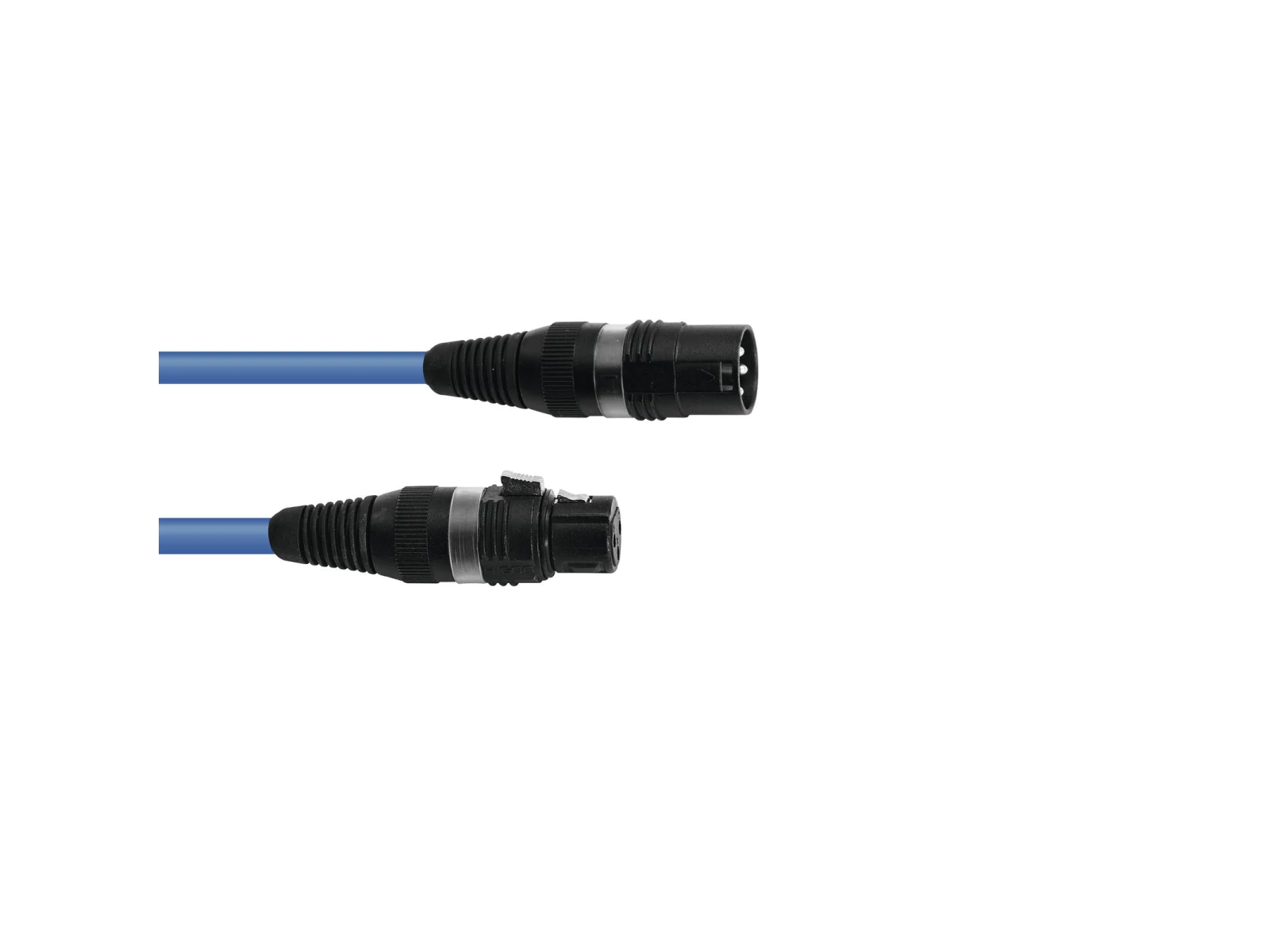

DMX cable by premium manufacturer Sommer CableThese premade cables are the perfect choice for the transmission of the 110 ohms AES/EBU DMX512 data format.Important note: the use of a standard microphone cable is not recommended due to data and information losses (caused by the skin effect). In the lighting domain data losses cause a total jam with signal transmissions or the control of scanner systems.The very affordable price of this cable should make it easy to switch from a standard microphone cable to a proper AES/EBU cable. Our AES/EBU cable guarantees the error-free data transfer even over longer distances of up to 100 metres. We use the BINARY 234 AES/EBU MKII AES/EBU cable with 100 % shielding and the HICON XLR connectors.
- AES/EBU- and DMX-conformant, highly flexible
- Very good shielding through the use of copper spiral shielding and a fleece vaporized with aluminum
- Extremely robust with an especially strong jacket
- Only a little more expensive than a standard microphone cable
- For networking of scanners, lighting units, digital mixing boards, etc.
- For connection of digital audio amplifiers, DAT-recorders, etc.
- HICON
- Suitable for outdoor use
- Made in Germany
Paraméterek
| Cable construction | 2 x 0,34 mm² DMX cable |
| Cable length | 5 m |
| Plug A | 1 x 3-pin XLR (M) |
| Plug B | 1 x 3-pin XLR (F) |
| Use of brands | HICON |
| Color | Blue |
| Weight | 320 g |
